2024 New 5 Axis Bridge Saw CNC Stone Router Machine Xianda CE CNC Engraving Machines for Stone Marble Cutting Machine
Product Description

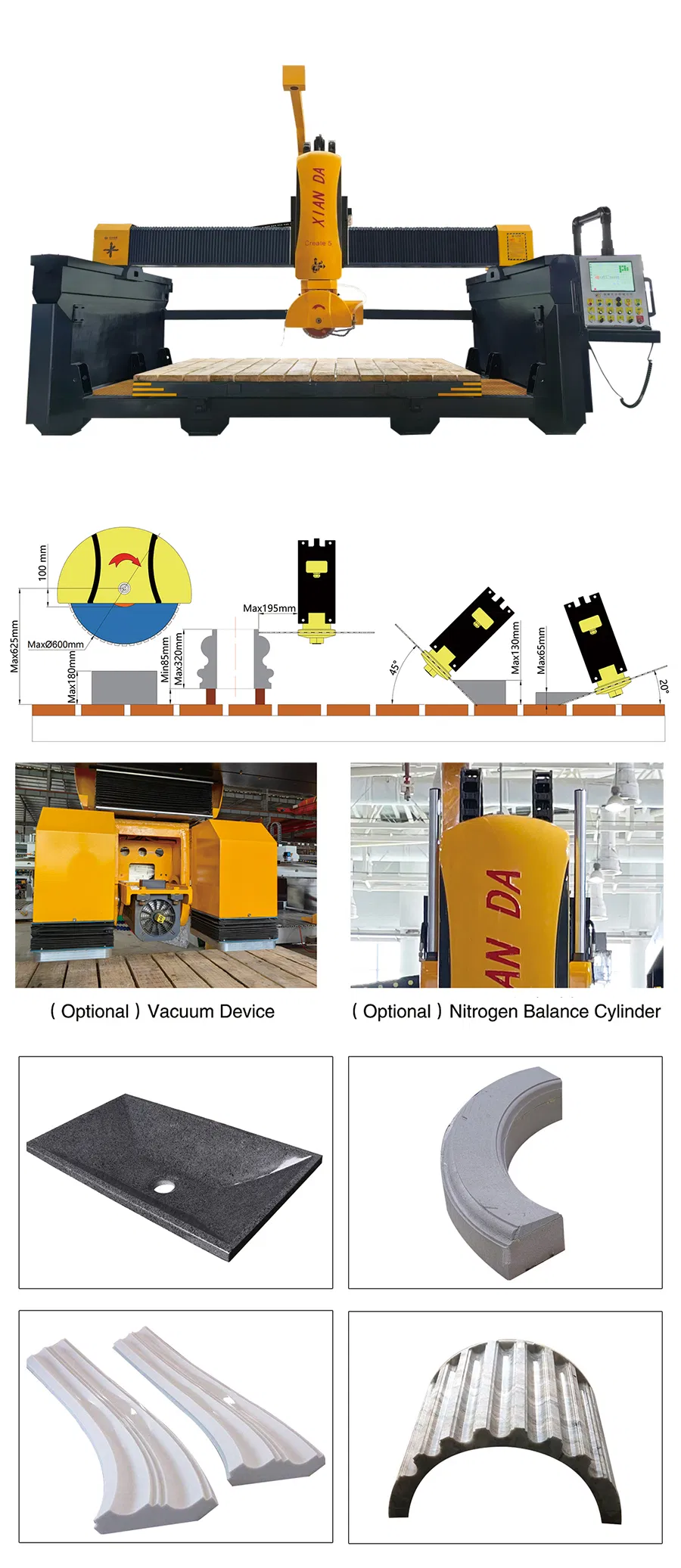

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control,Bus-based absolute value servo (with memory function for power off).high-precision linear guide rail,ball screw transmission.oil-immersed track structure.with multi-function, high precision,strong stability and other advantages.Its processing functions include arbitrary-shaped lines,fan-shaped plates, wash basin and special-shaped edge profiling,etc.The equipment has multiple processing functions,wide application, small space, and simple operation.It is a great equipment for stone processing.
Technical Parameter
| Parameter | Unit | Create 600 |
| Blade diameter | mm | 350-600 |
| Max processing size | mm | 3400*2000*180 |
| Worktable size | mm | 3400*2000 |
| Table tilting degree | mm | 0-85 |
| Head rotating degree | ° | 0-360 |
| Head tilting degree | ° | 0-90 |
| Air speed | m/min | 15 |
| Repeated accuracy of positioning | mm | <0.1mm/1000 |
| Main motor power | kw | 22(permanent Magnetic Synchronous Motor) |
| Outline dimension | mm | 5800*3650*3900 |
| Water consumption | m3/h | 3 |
Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
