Product Description

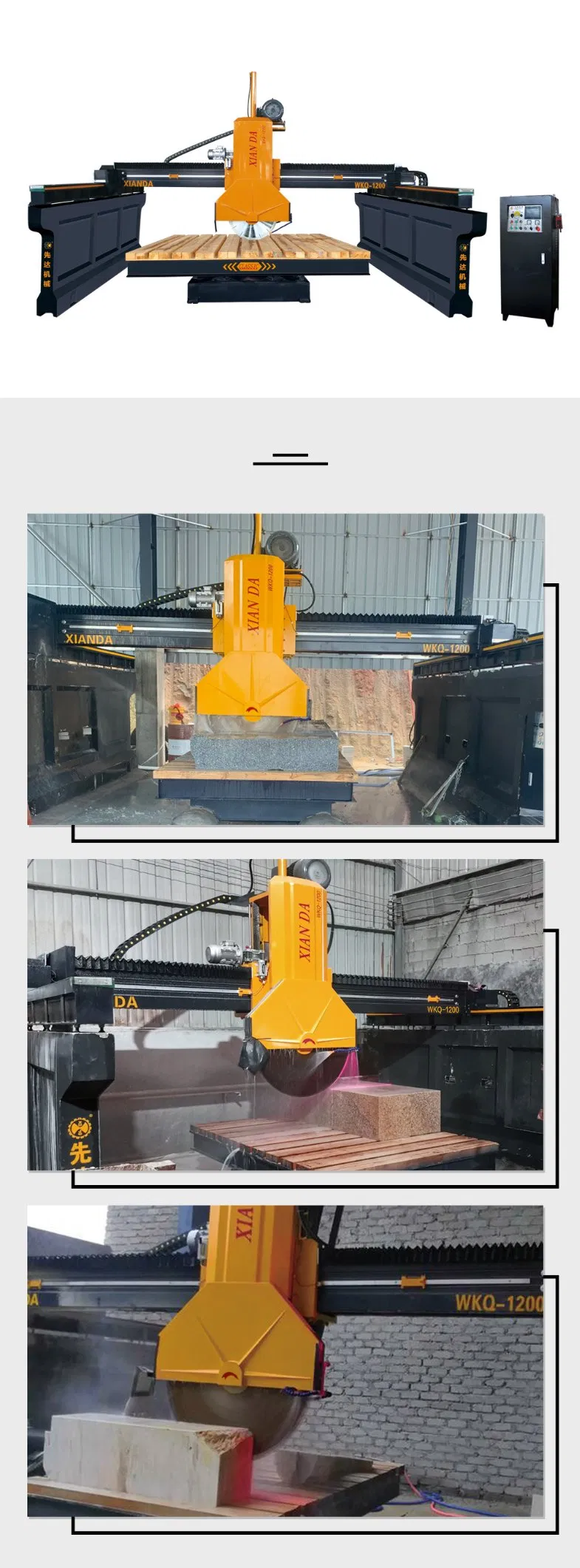

WKQ-1200 Xianda Stone Bridge Cutting Machine Granite Marble Bridge Saw, designing reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding, adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured as high cutting efficiency, high stability, esay-operating, specially cutting shaped stone products, tombstone and curb stone.
Technical Parameter
| Parameter | Unit |
WKQ-1200 |
| Blade diameter | mm | 1200 |
| Max Lifting Distance | mm | 760 |
| Dimension of worktable | mm | 3200*2000 |
| Worktable tilting degree | ° | 0-85° |
| Worktable rotation degree | ° | 0-90°/0-360° |
| Main motor | kw | 22 |
| Gross motor | kw | 28 |
| Water consumption | m³/h | 4 |
| Outline dimension | mm | 6400*4800*4400 |
| Gross weight | kg | 6800 |
Xianda machinery
Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
