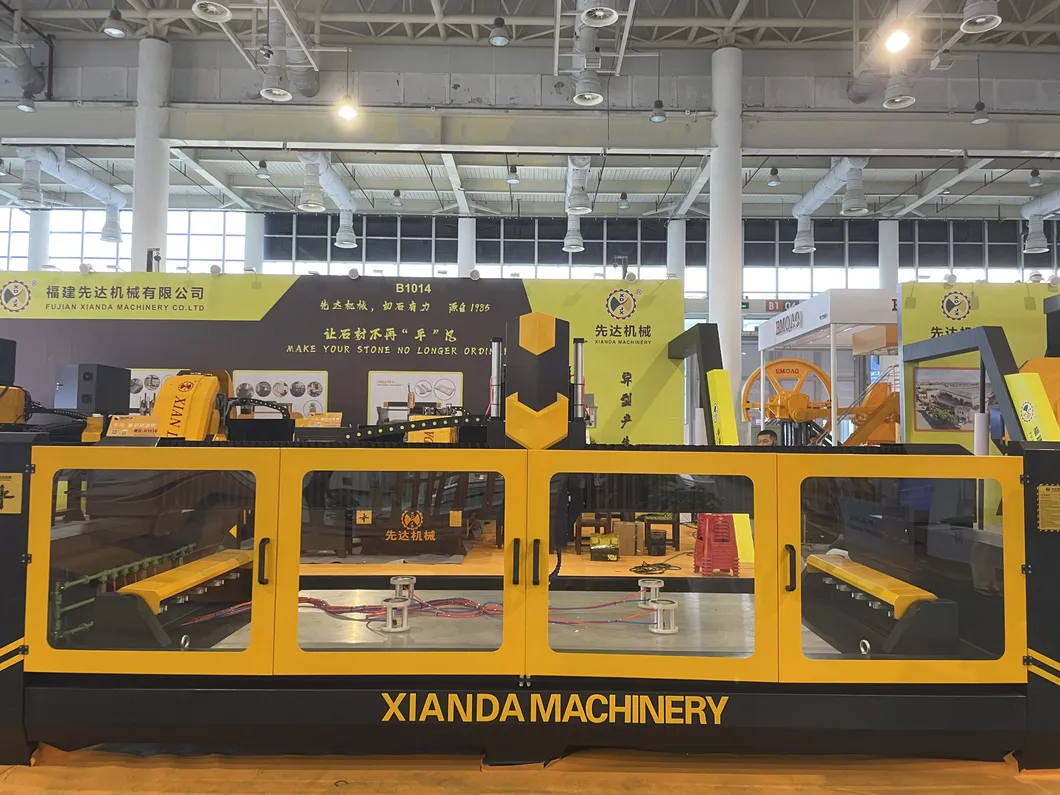

Kitchen Bathroom Sink Countertop Hole Drilling, Milling, Polishing CNC Processing Machine
CNC machining center adopts high-end CNC system control, auto-matic tool changing spindle structure, double-sided in-line toolmagazine, high-precision linear guide, ball screw transmission,oil-immersed track structure, with high intelligence, high precision,strong stability and other advantages. The equipment is not onlyprocessing various materials such as marble, granite, ceramics,glass, microlite and steel; More able to produce a variety of washbasin and counter top with beautiful curves and luxurious shapes;As well as a variety of intricate relief works and 2D and 3D art words.
Technical Parameter
| Parameter | Unit | CMC-3014 |
| X-axis Travel | mm | 3000 |
| Y-axis Travel | mm | 1400 |
| z-axis Travel | mm | 350 |
| Maximum Processing Thickness | mm | 300 |
| Spindle Power | kw | 11(Optional 15) |
| Tool Magazine Capacity | nr | 5+5 |
| Spindle Motor Speed | R.P.M | 1-18000 |
| Air Speed | m/min | 15 |
| Water Consumption | m³/h | 3 |
| Outline Dimension | mm | 5350*2600*2300 |
