This machine is controlled by a numerical control system, combined with the strength of profiling machine and the travelling speed and accuracy in machining center. It has the advantages of high efficiency , high precision and high stability, and including functions such as rough cutting, fine cutting ,and fine milling.
It is dedicated to stone processing such as linear and square railing.
| Parameter | Unit | LCMM-1400 |
| Blade diameter | mm | φ400-φ600 |
| Max lifting travel of cutting frame | mm | 400 |
| Worktable dimension | mm | 1400*3000 |
| Main motor | kw | 15 |
| Gross motor | kw | 21 |
| Outline dimension | mm | 5500*2200*2400 |
| Gross weight | kg | 3000 |
| Water consumption | m³/h | 4 |

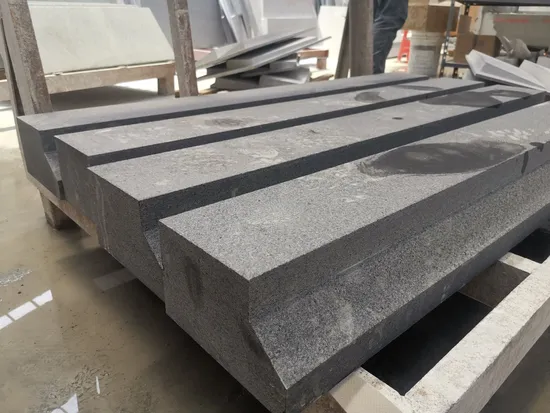

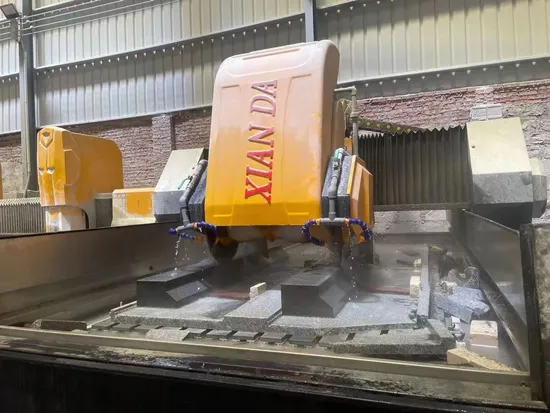

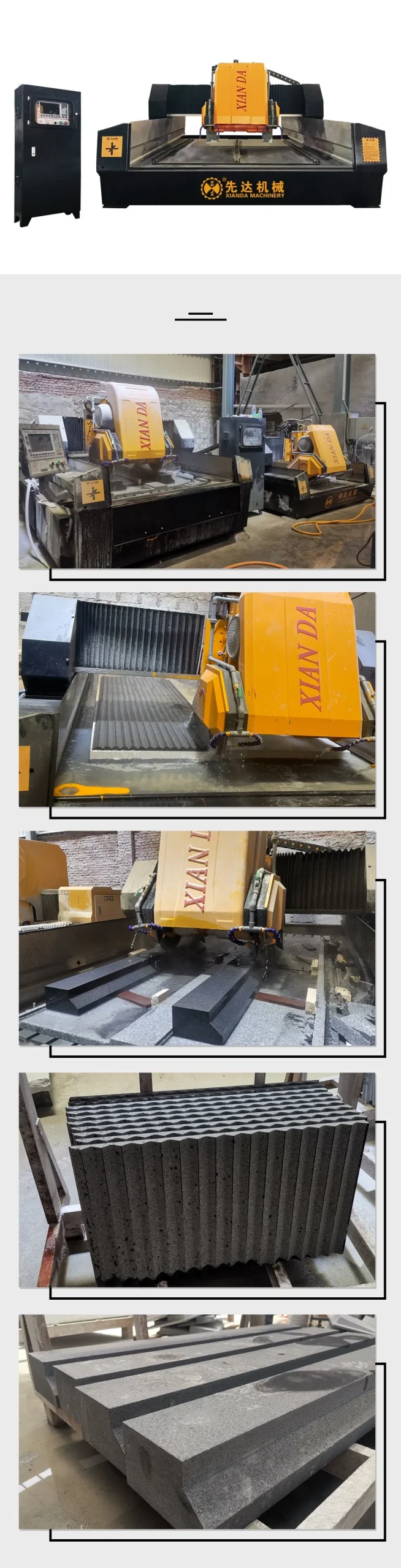

Product Show

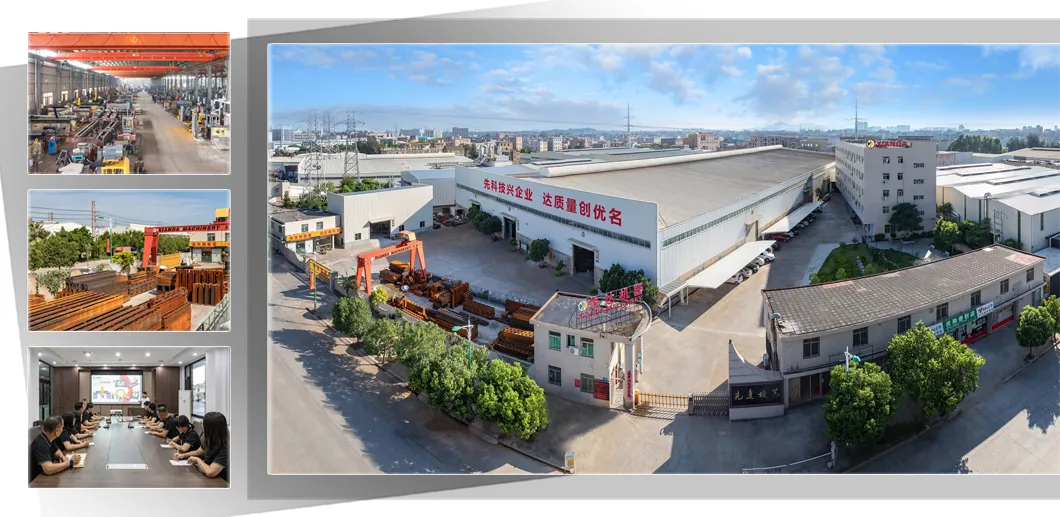

Factory Overviews
