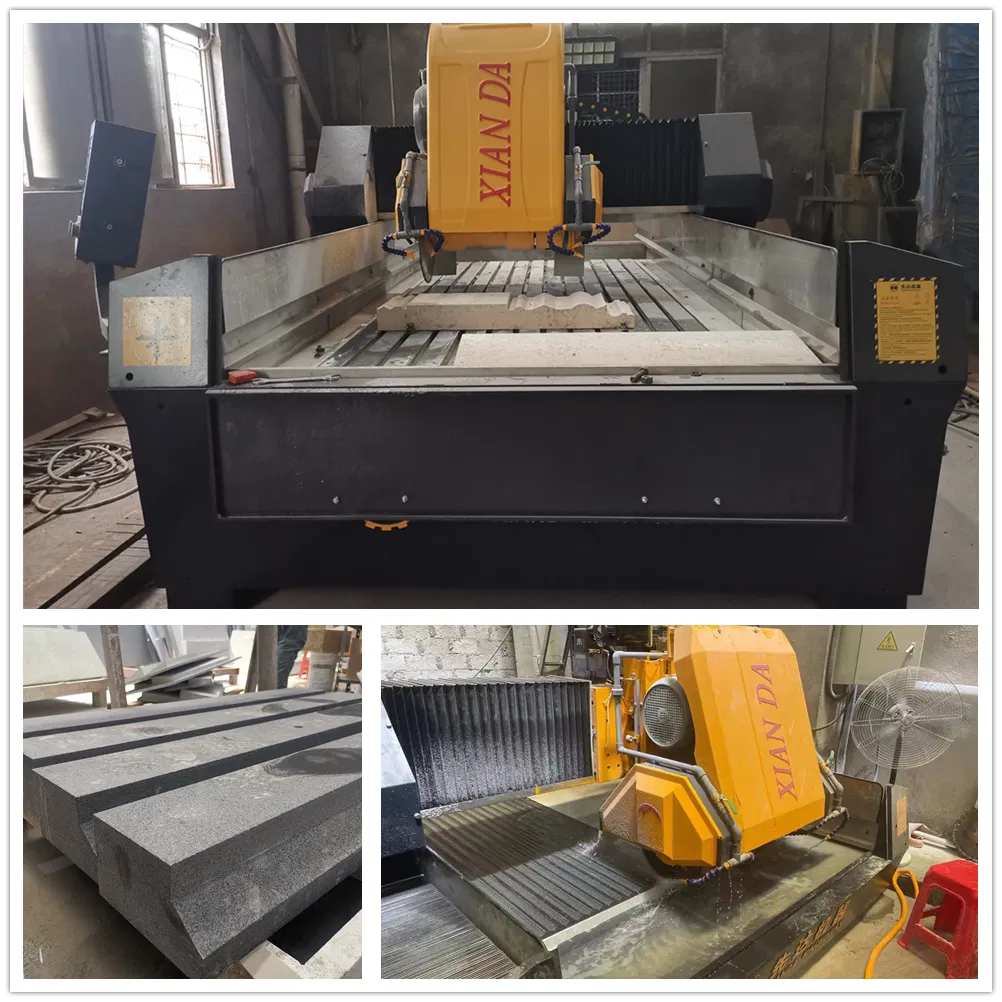

3 Axis Linear Cutting Machine for Square Railling LCMM-1300/1600
This machine is controlled by a numerical control system, combined with the strength of profiling machine and the travelling speed and accuracy in maching center. It has the advantages of high efficiency, high precision and high stability, and including functions such as rough cutting, fine cutting, and fine milling. It is dedicated to Stone processing such as linear and square railing.
This machine is controlled by a numerical control system, combined with the strength of profiling machine and the travelling speed and accuracy in maching center. It has the advantages of high efficiency, high precision and high stability, and including functions such as rough cutting, fine cutting, and fine milling. It is dedicated to Stone processing such as linear and square railing.
Technical Parameter
| Parameter | Unit | LCMM-1300 | LCMM-1600 |
| Blade diameter | mm | φ350-600 | φ350-600 |
| Max lifting travel of cutting frame | mm | 370 | 370 |
| Trolley Size | mm | 1400*3000 | 1700*3500 |
| Main motor | kw | 15 | 15 |
| Gross Power | kw | 21 | 21 |
| Outline dimension | mm | 4850*2150*2250 | 4850*2500*2250 |
| Water consumption | m3/h | 4 | 4 |
