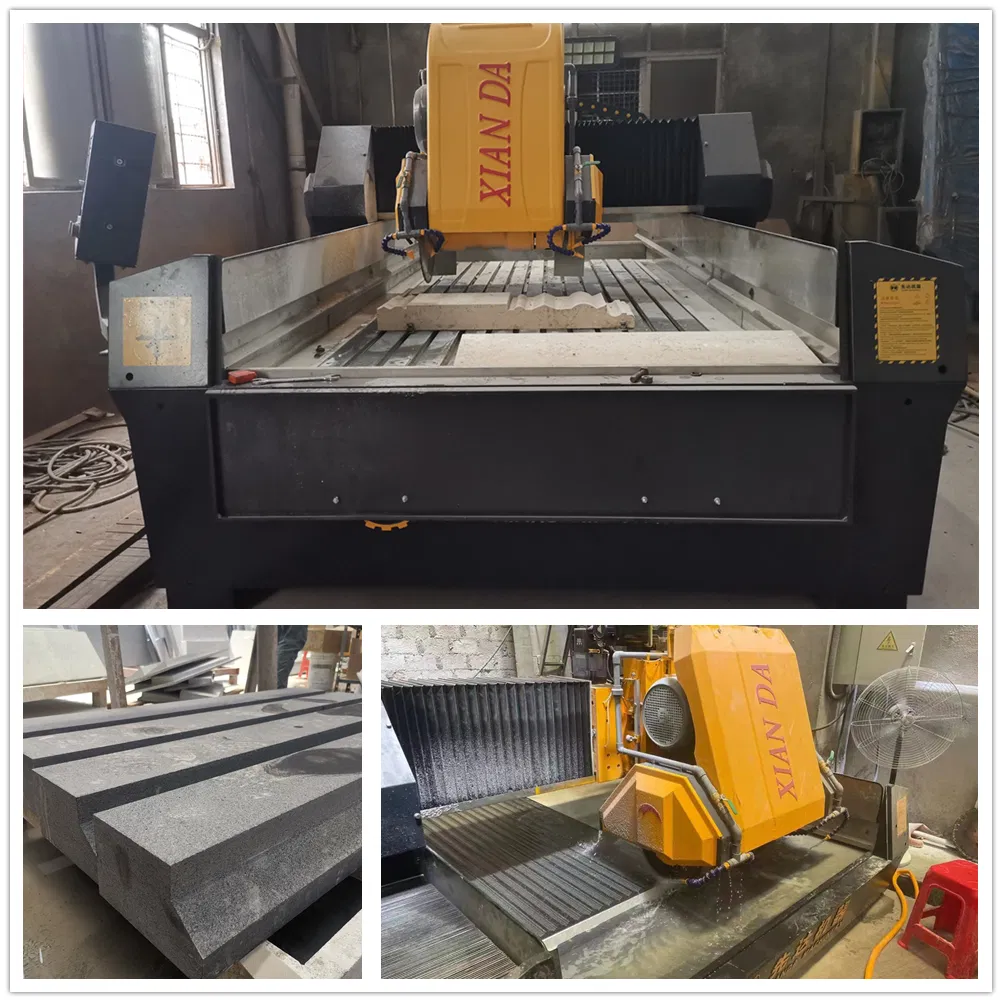

3 Axis Linear Cutting Machine LCMM-1700
This machine is controlled by a numerical control system, worktable adopt an open structure (Convenient for loading andunloading materials) less space, combined with the strength of profling machine and the travelling speed and accuracy in machining center. lt has the advantages of high efficiency, high precision and high stability, and including functions such as rough cutting, fine cutting, and fine milling. lt is dedicated to stone processing such as linear and square railing.
This machine is controlled by a numerical control system, worktable adopt an open structure (Convenient for loading andunloading materials) less space, combined with the strength of profling machine and the travelling speed and accuracy in machining center. lt has the advantages of high efficiency, high precision and high stability, and including functions such as rough cutting, fine cutting, and fine milling. lt is dedicated to stone processing such as linear and square railing.
Technical Parameter
| Parameter | Unit | LCMM-1400 | LCMM-1700 |
| Blade diameter | mm | φ400-600 | φ400-600 |
| Max lifting travel of cutting frame | mm | 400 | 400 |
| Trolley Size | mm | 1400*3000 | 1700*3000 |
| Max Processing Length | mm | 3000 | 3000 |
| Main motor | kw | 15 | 15 |
| Gross Power | kw | 21.5 | 21.5 |
| Outline dimension | mm | 4900*2200*2400 | 4900*2500*2400 |
| Water consumption | m3/h | 4 | 4 |
