Product Description

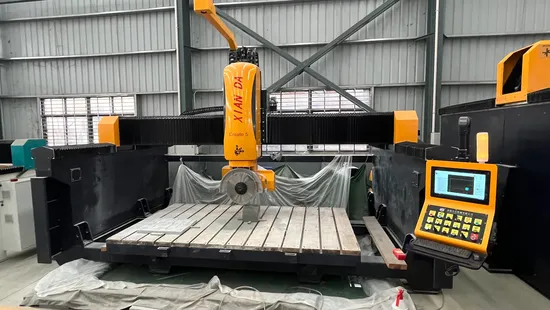

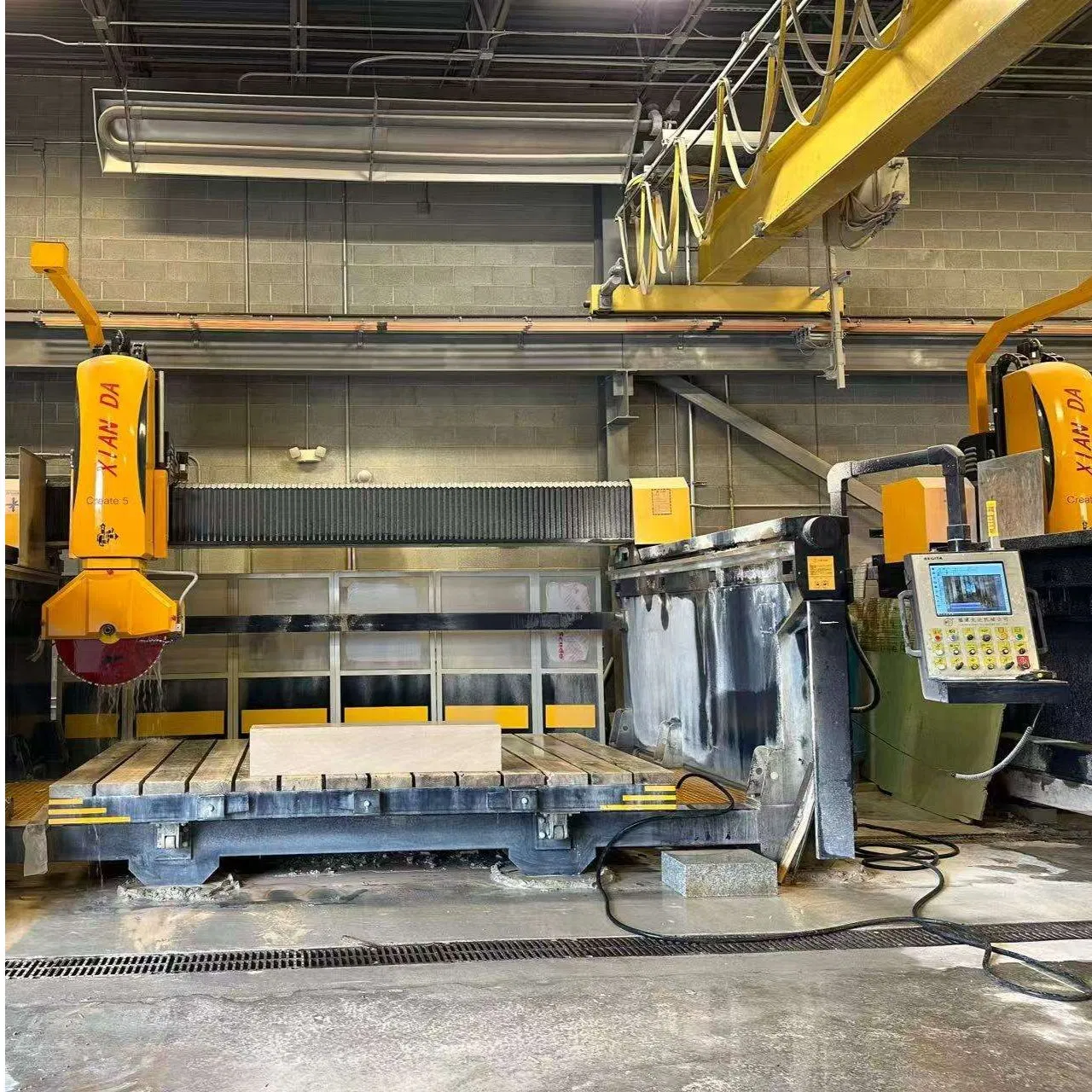

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for
power off), high-precision linear guide rail, ball screw transmission for up down, oil-immersed track structure, with multi-function, high
precision, strong stability and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin
and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application, small space, and simple operation. It is a great equipment for stone processing.
power off), high-precision linear guide rail, ball screw transmission for up down, oil-immersed track structure, with multi-function, high
precision, strong stability and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin
and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application, small space, and simple operation. It is a great equipment for stone processing.
Specification
|
Technical Parameter
|
Unit
|
Promote 600
|
|
Blade diameter range
|
mm
|
Φ350-Φ600
|
|
Max processing size
|
mm
|
3400×2000×180
|
|
Lifting stroke
|
mm
|
500
|
|
Worktable Size
|
mm
|
3400 x 2000
|
|
Table Tilting degree
|
°
|
0,85°
|
|
Head rotating degree
|
°
|
0~360°
|
|
Head tilting degree
|
°
|
0-90°
|
|
Main motor
|
kw
|
22(Permanent magnet motor)
|
|
Water consumption
|
m³/h
|
≈2
|
|
Outline dimension
|
mm
|
5800 x 3600x 3900
|
