Product Description

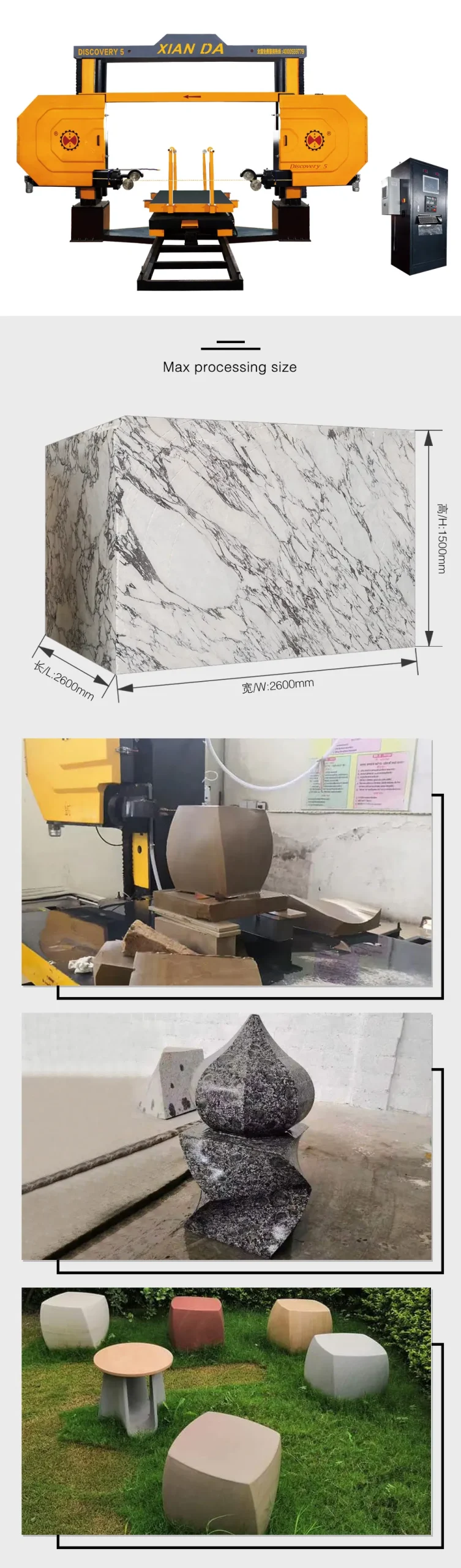

Fujian Xianda DISCOVERY 5, Discovery 5 adopts 5 axis CNC control system ,it can process different size arc slabs ,column, number, letter, Chinese words also different shapes of marble or granite.
And it can also process 3D shapes, Main body with advanced and unique structure ,makes its cutting with excellent precision, stability ,effciency etc advantages.It’s the ideal equipment for processing the special shapes stone.
Technical Parameter

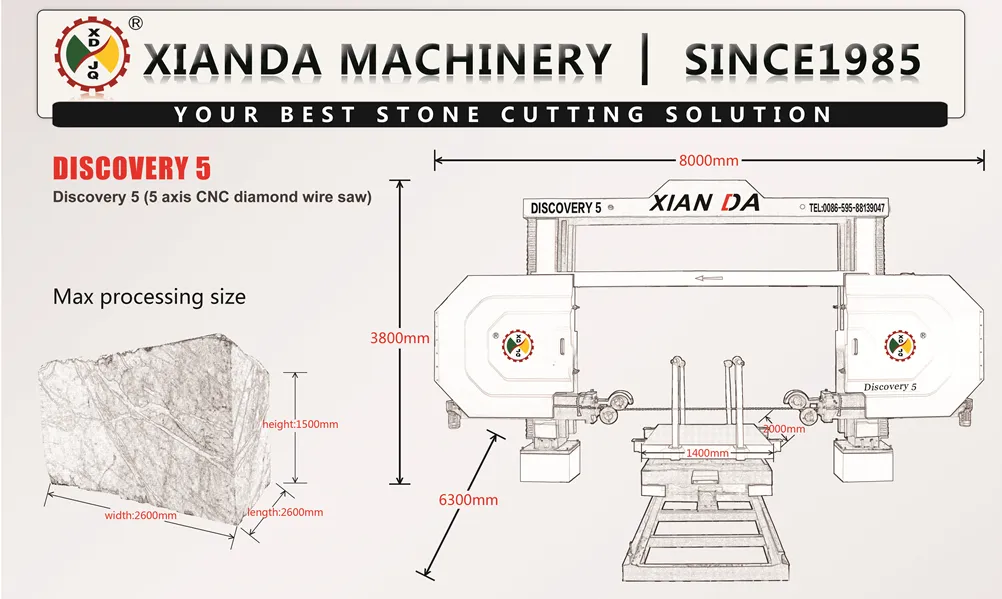

| Parameter | Unit | Discovery 5 |
| Max processing size | mm | 2600*2600*1500 |
| Dimension of worktable | mm | 1400*2000 |
| Main motor | kw | 11 |
| Outline dimension | mm | 8000*6500*4100 |
| Gross weight | kg | 7500 |
| Water consumption | m3/h | 4 |
Our Product
Xianda machinery

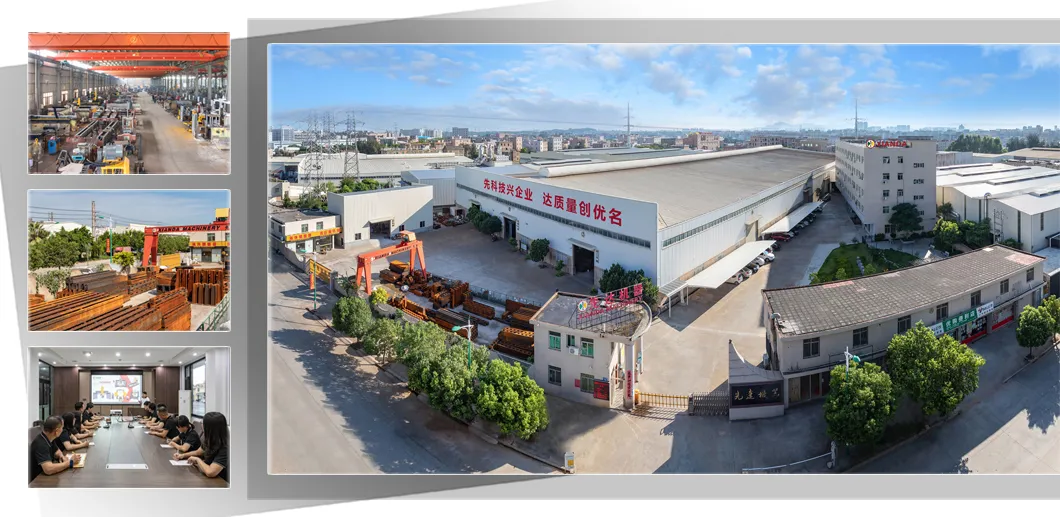

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.

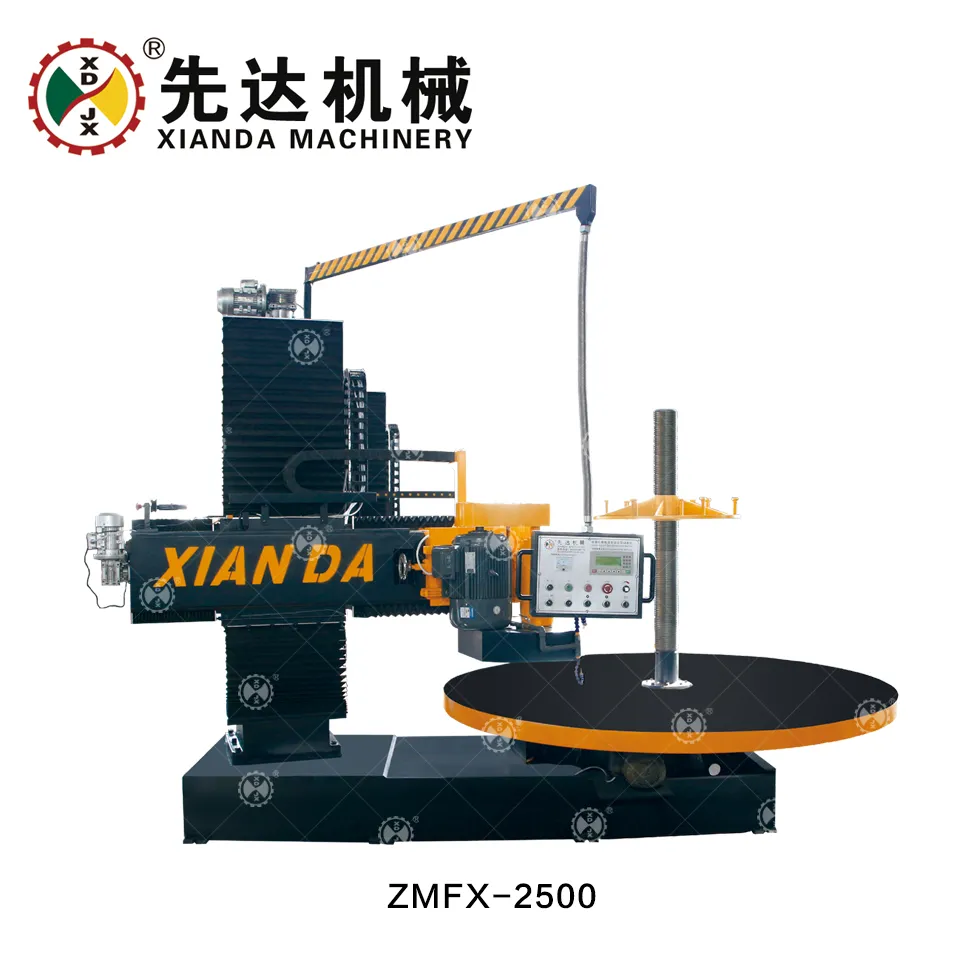

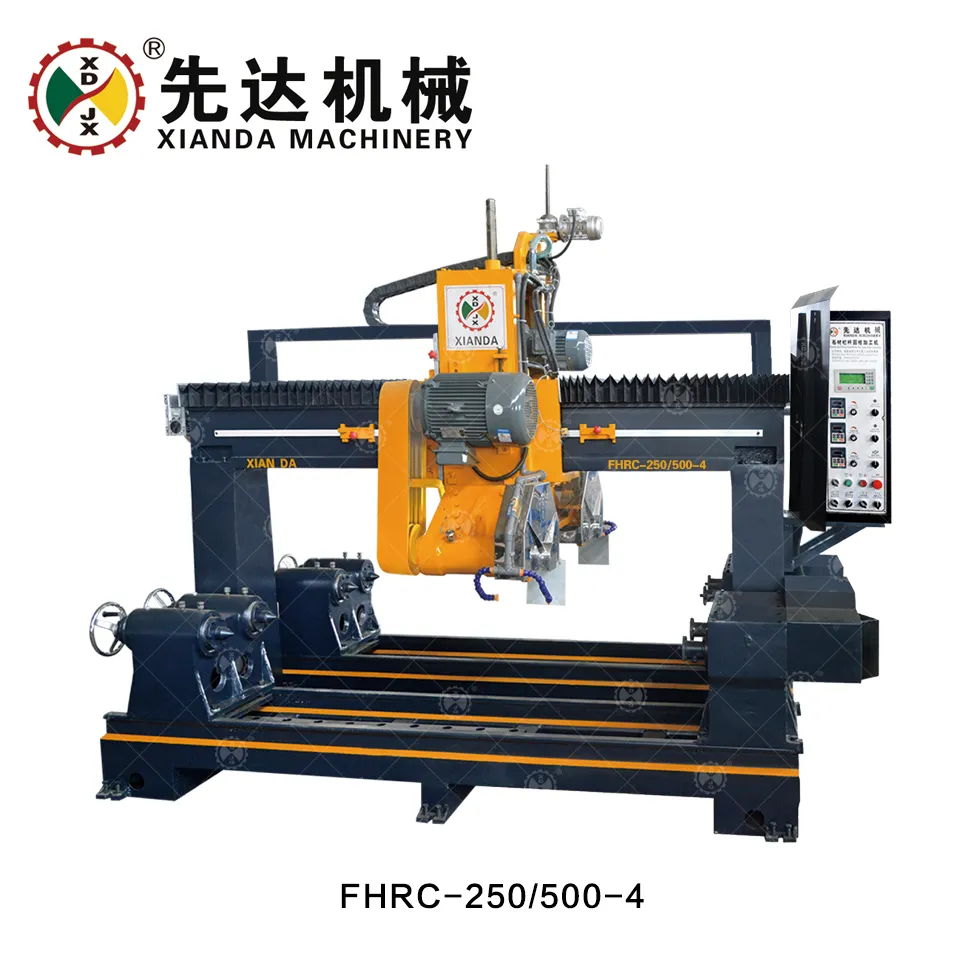

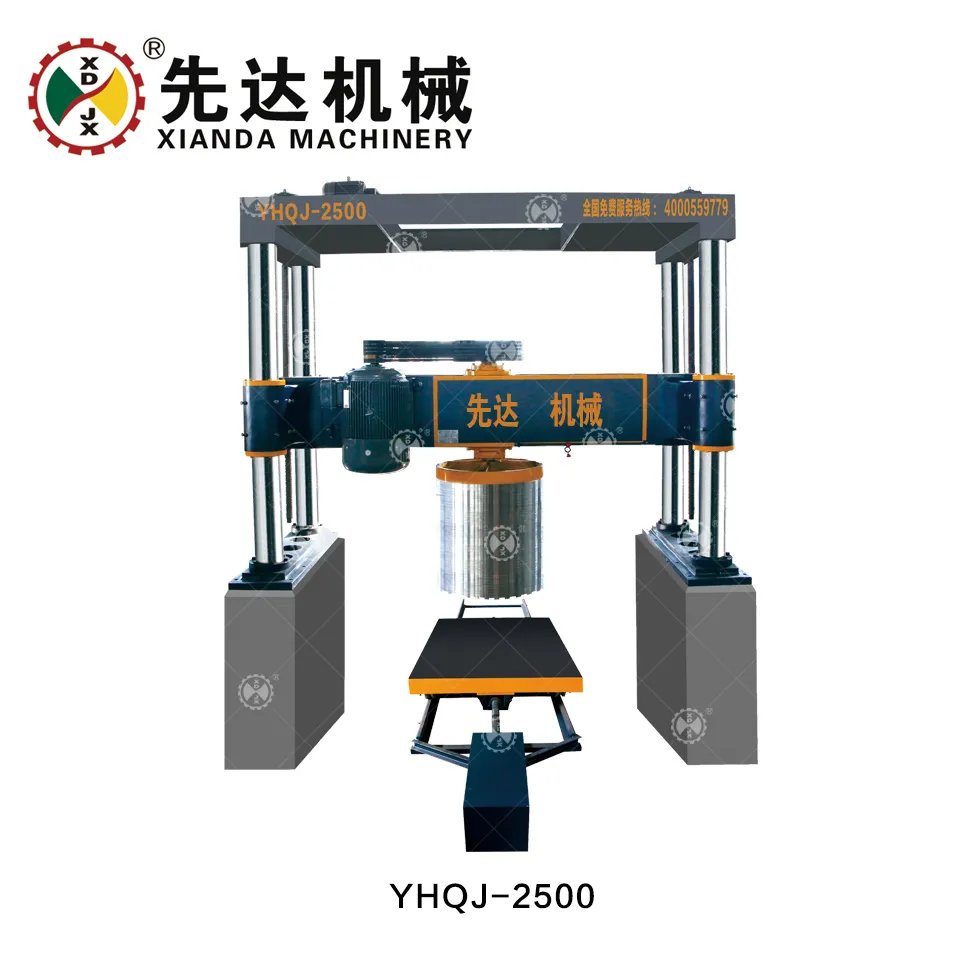

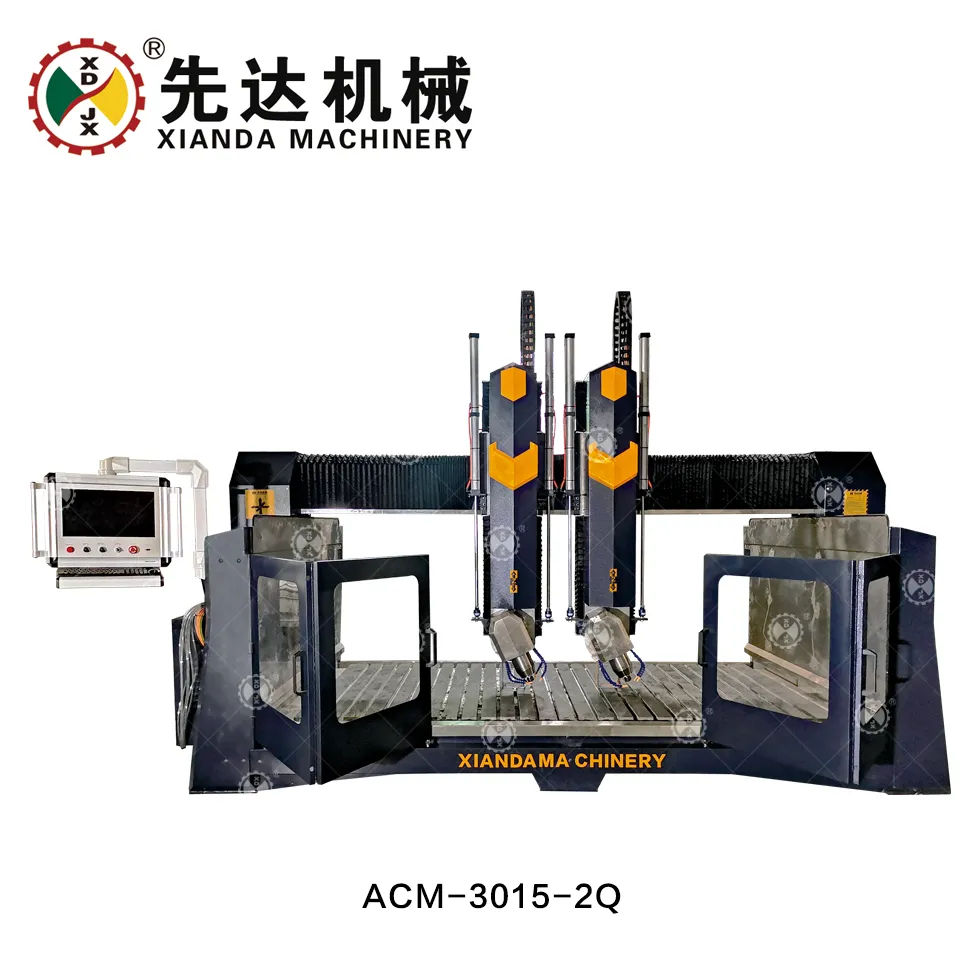

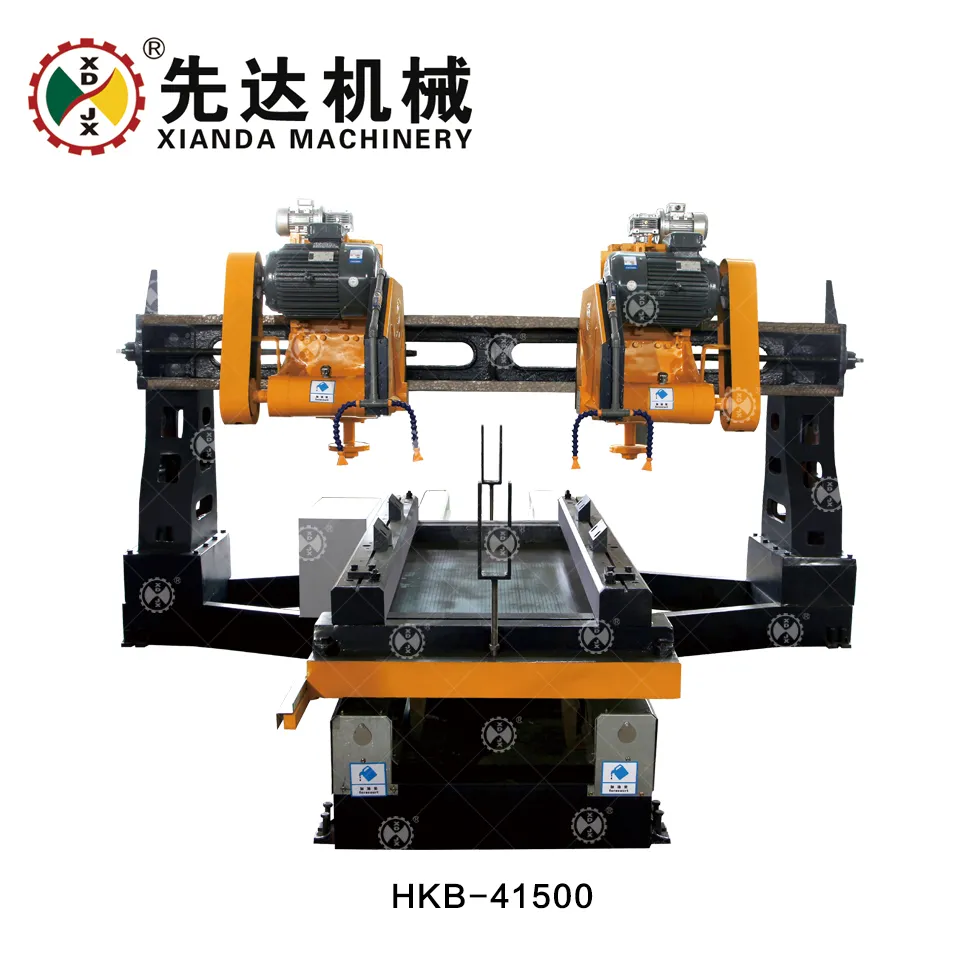

With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed
