الوصف

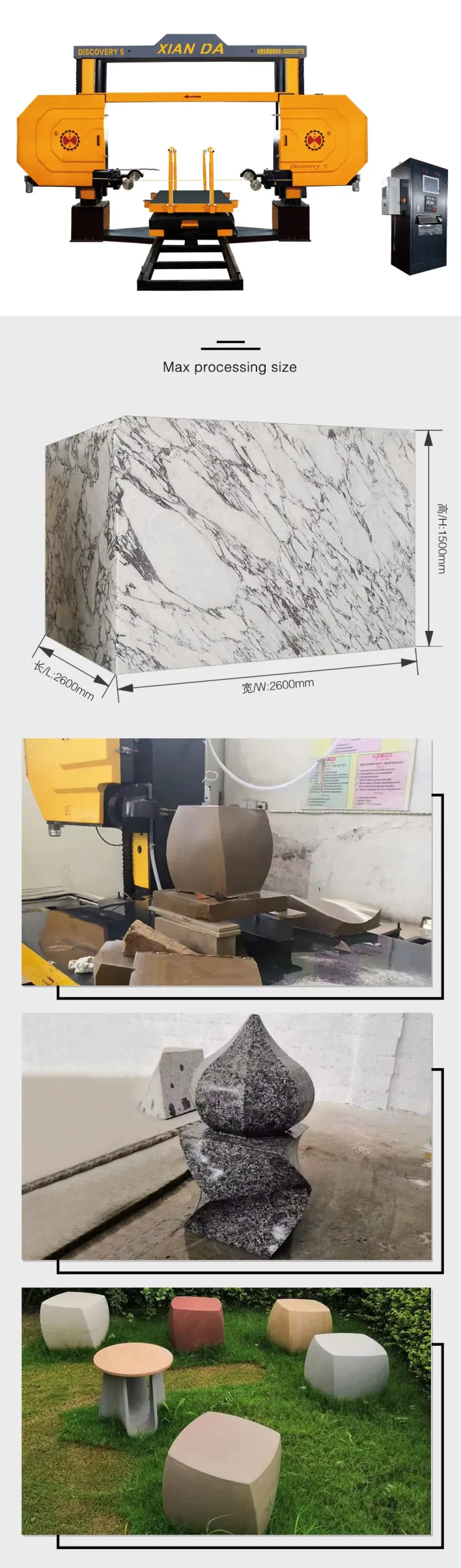

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
Technical Parameter
| Parameter | Unit | Discovery 5 |
| Max processing size | mm | 2600*2600*1500 |
| Dimension of worktable | mm | 1400*2000 |
| Main motor | kw | 11 |
| Gross motor | kw | 11 |
| Outline dimension | mm | 8000*6300*3800 |
| Gross weight | kg | 7000 |
| Water consumption | m3/h | 4 |
Xianda machinery

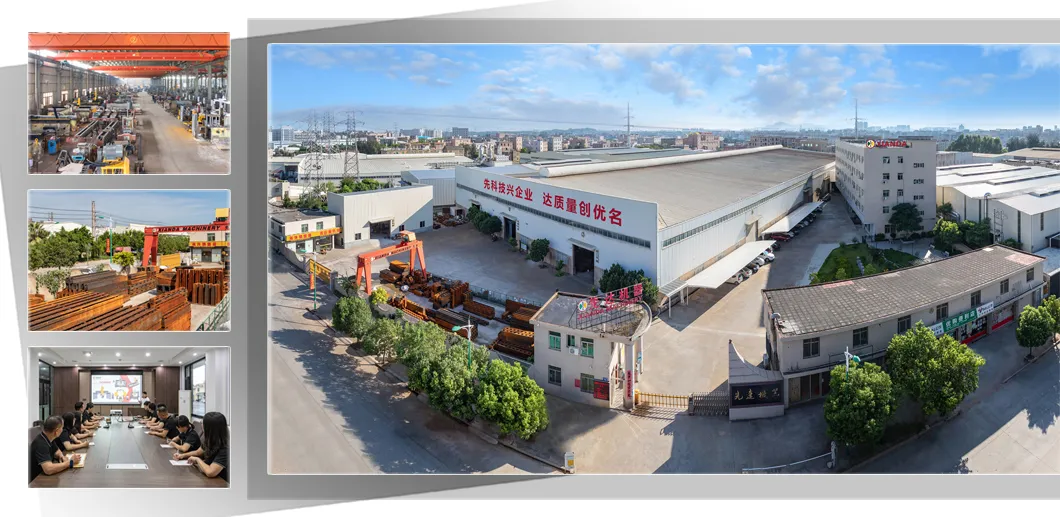

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
