XIANDA Machinery 5 Axis Stone CNC Router Bridge Saw with Rotating Table for Granite Marble Carving Milling Drilling Machine in Poland

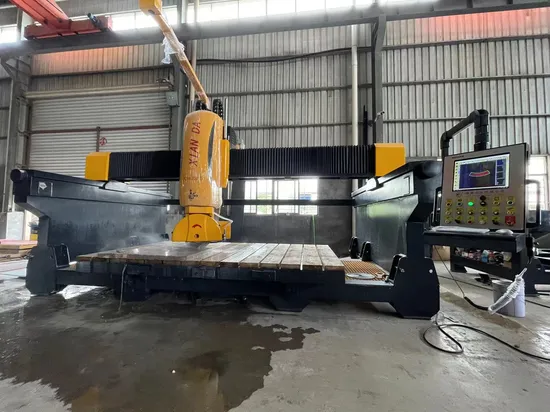

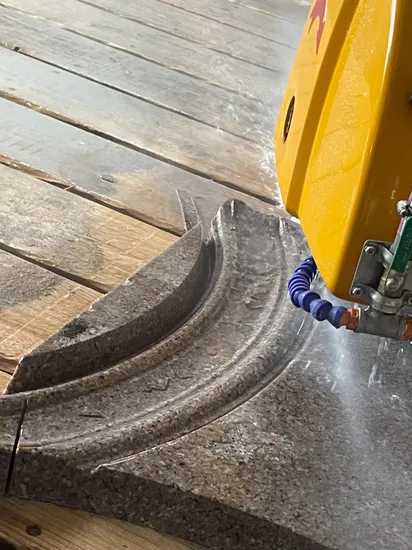

Detailed Photos
Product Description

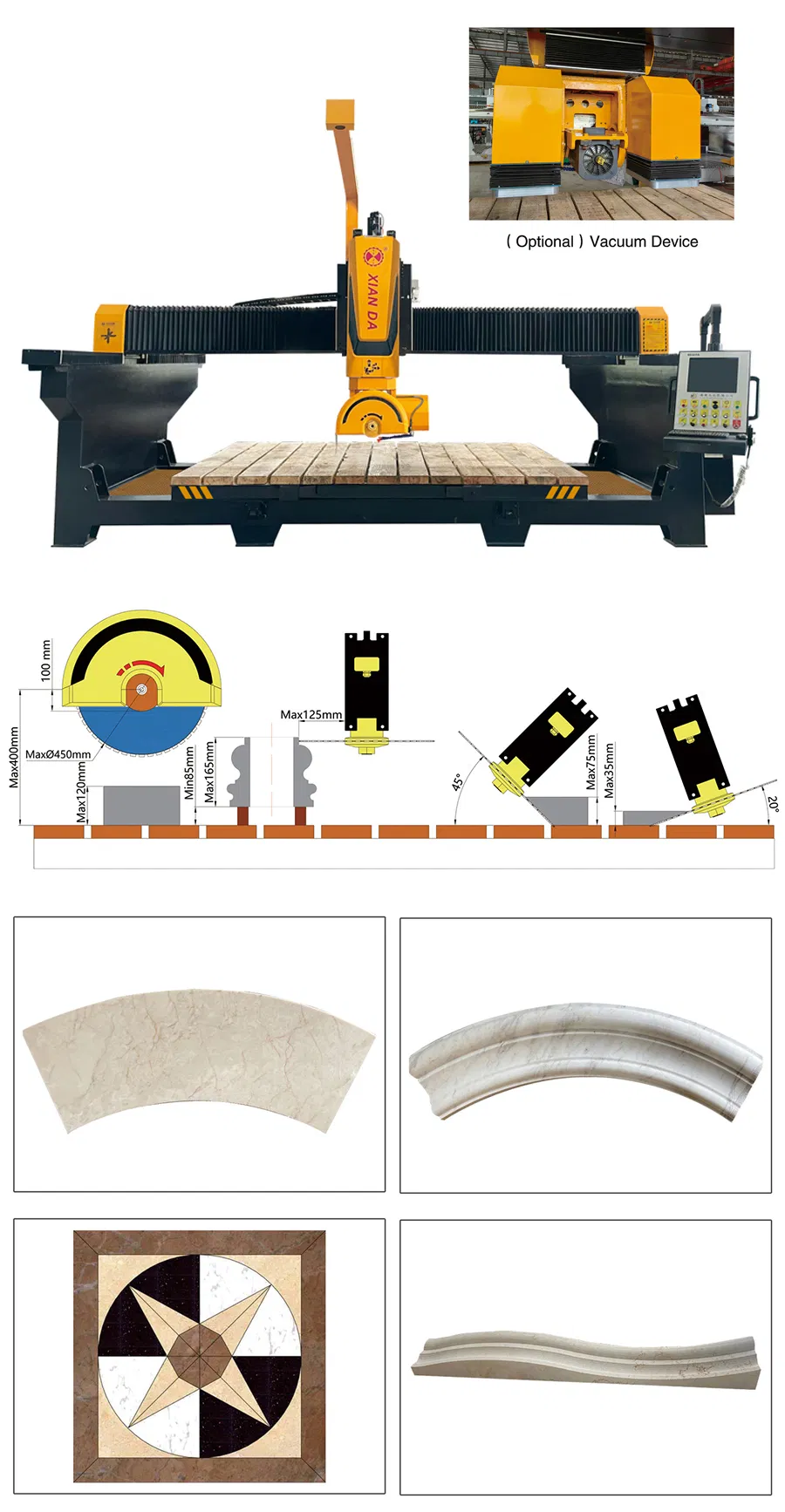

5 Axis Bridge cutting machine adopts 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, oil-immersed track structure, with multi-function, high precision, strong stability and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates,wash basin and special-shaped edge profling, etc. The equipment has multiple processing functions, wide application, small space, and simple operation. It is a great equipment for stone processing.
Product Parameters
|
Parameter
|
Unit
|
Create 450
|
|
Blade Diameter
|
mm | φ350-φ450 |
| Worktable Size | mm | 3200*2000 |
|
Max Processing Size
|
mm |
3200*2000*120
|
|
Table Tilting Degree
|
°
|
0°-85° |
| Head Rotatimg Degree |
°
|
0°-360° |
| Head Tilting Degree | ° | 0°-90° |
| Air Speed | m/min | 15 |
| Repeated Accuracy of Positioning | mm | <0.1mm/1000 |
|
Main Motor
|
kw |
18.5(permanent Magnetic synchronos motor)
|
| Gross Power | kw | 26 |
|
Water Consumption
|
m³/h |
3
|
|
Outline Dimension
|
mm | 5600*3600*3500 |
| Gross Weight | kg | ≈6000 |
