Description:

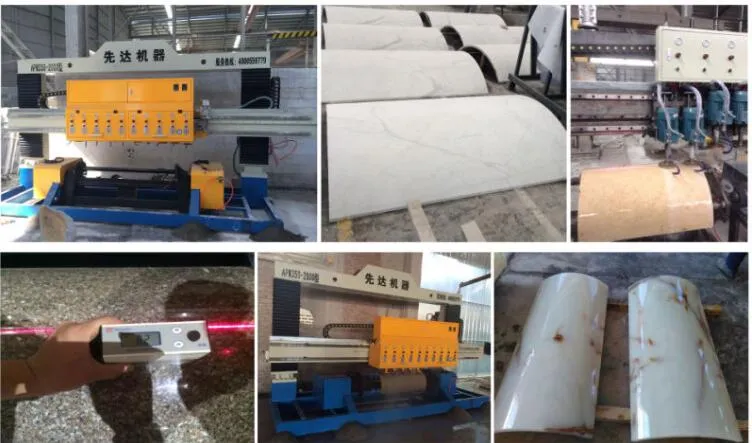

APM-350-2000 XIANDA STONE POLISHING MACHINE ,Arc Slab Polishing Machine fix the arc slab by vacuum sucker, replaced conventional clamping fixing on both sides, solved the deviation of the squareness and inclination which were generated by the steps trimming-grinding, at the meanwhile, clear the customer’s concerns about arc slab edge&angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.
Technical Parameter
| Parameter | Unit | APM-350-2000-10 | APM-350-2000-12 |
| Processing diameter | mm | 350-2000 | 350-2000 |
| Processing length | mm | 1300 | 1300 |
| Grinding number | piece | 10 | 12 |
| Gross motor | kw | 27.5 | 32 |
| Efficiency | min/M2 | ≈7 | ≈8 |
| Outline dimension | mm | 5200*1700*2900 | 5800*1700*2900 |
| Water consumption | m³/h | 6 | 7 |
| Gross weight | kg | 5000 | 6000 |
Xianda machinery

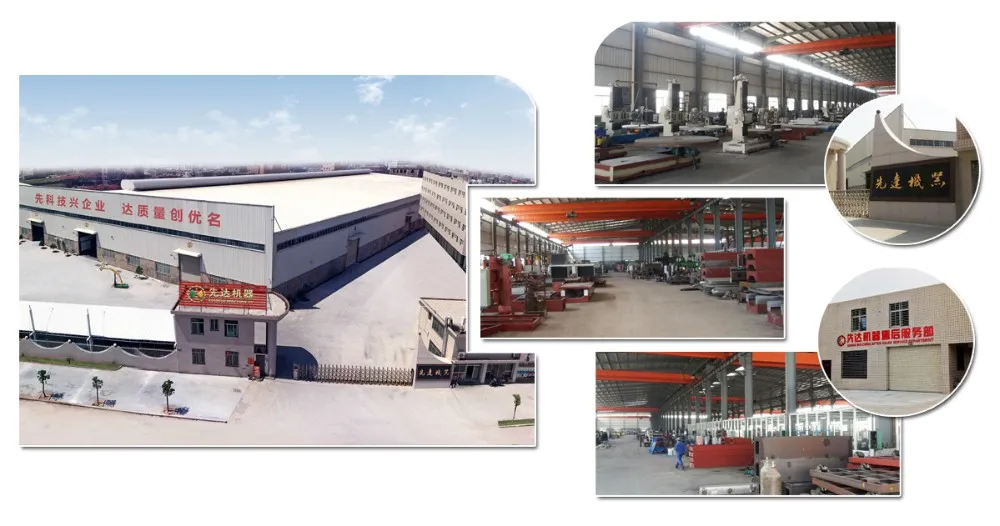

Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
