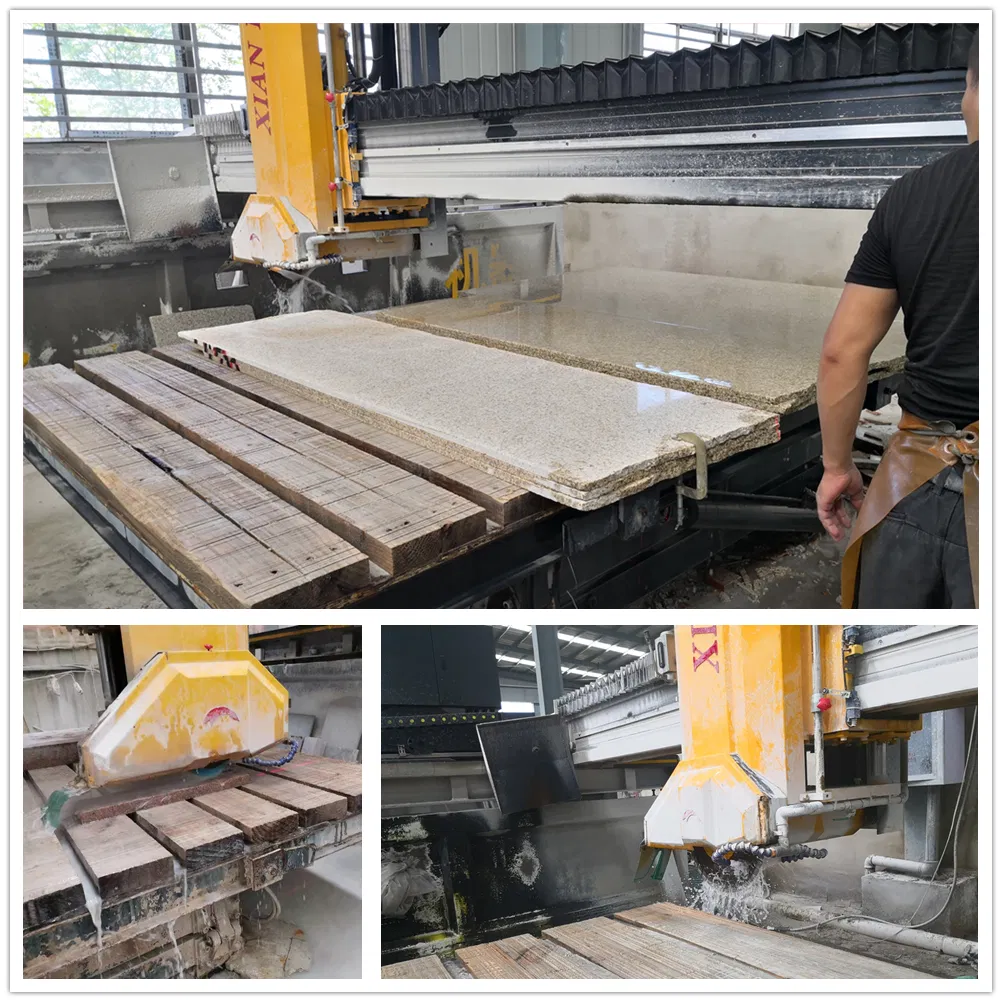

Bridge Automataic Cutting Machine for Cutting Marble ZDSC-400
This machine is controlled by microcomputer, its worktable can be 90°/360° rotating. Special structure for the guide pulley and side beam makes its cutting high accuracy, high stability, high efficiency. lt’s suitable for processing marble artificial stone with high value and big size.
This machine is controlled by microcomputer, its worktable can be 90°/360° rotating. Special structure for the guide pulley and side beam makes its cutting high accuracy, high stability, high efficiency. lt’s suitable for processing marble artificial stone with high value and big size.
Technical Parameter
|
Parameter
|
Unit
|
ZDSC-400
|
|
Blade Diameter
|
mm | φ300-φ400 |
|
Max Processing Size
|
mm |
3200*2000*80
|
| Trolley Size | mm | 3200*2000 |
|
Worktable Tilting Angle
|
°
|
0-85° |
|
Worktable Rotation Angle
|
°
|
0-90°/0-360° (optional) |
|
Main Motor
|
kw |
15kw
|
|
Gross Power
|
kw |
20.5
|
|
Water Consumption
|
m³/h |
3
|
|
Outline Dimension
|
mm |
5550*4700*2650
|
|
Gross Weight
|
kg | 5100 |
