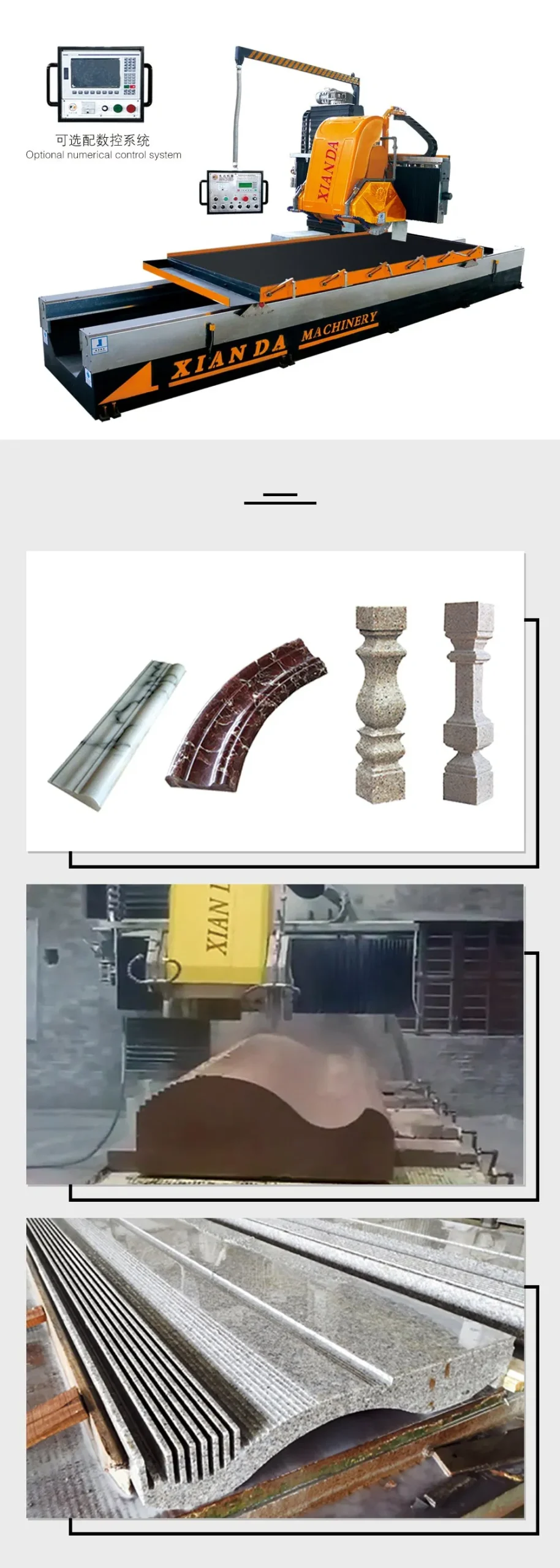

Automatic Multi-Function Marble Granite Profiling Linear Stone Machine
DNFX-1300/1400 CNFX-1300/1400
DNFX-1300/1400 CNFX-1300/1400
Product Description
This machine adopts PLC/CNC system with double blades,it’s suitable for profiling the linear,also it can cut the square balusters.With extra rotating table,it can cut the curve linear.Easy operation makes it popular especially for new operators.
Technical Parameter
| Parameter | Unit | DNFX-1300/CNFX-1300 | DNFX-1400/CNFX-1400 |
| Blade diameter | mm | φ350-φ600 | φ350-φ600 |
| Max lifting travel of cutting frame | mm | 650 | 650 |
| Dimension of worktable | mm | 1300*3000 | 1400*3500 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 18.5 | 18.5 |
| Outline dimension | mm | 5500*2300*2300 | 6000*2400*2300 |
| Gross weight | kg | 4000 | 4500 |
| Water consumption | m³/h | 6 | 6 |
