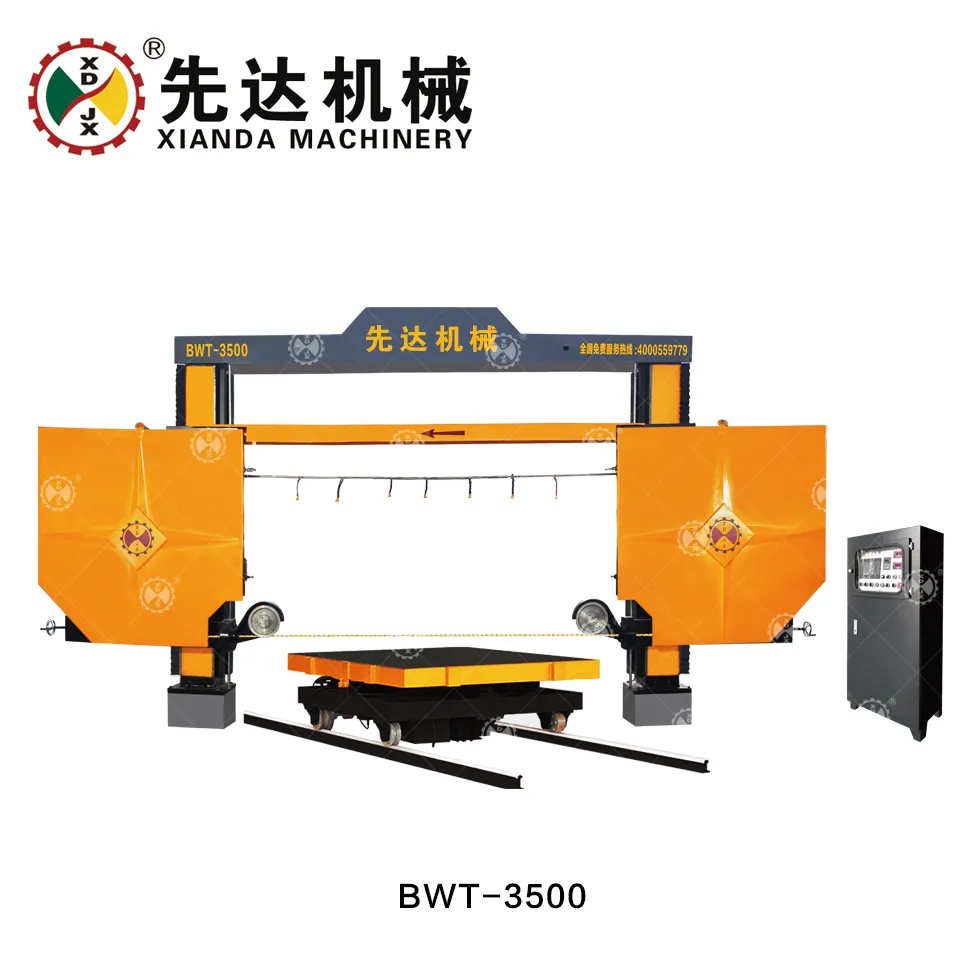

BWT-3500 diamond wire-saw trimming machine adopts PLC control,CNC is available also.The special design for 360° worktables will fulfil your need,used to trimming the four surfaces of the block,also can cut the block to slab,which is the ideal equipment for cutting and trimming block.Some more it compatible with CNC system,which can process the column slab,pillar,roman column,numeral,letter,Chinese characters and other shapes for the stone.
| Parameter | Unit | BWT-35000 | CNC-3500 |
| Max processing size | mm | 3500x3500x2100 | 3500x3500x2100 |
| Dimension of worktable | mm | 2500×2000 | 2500×2000 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 24 | 23 |
| Outline dimension | mm | 9500x6800x4700 | 9500x6800x4700 |
| Gross weight | kg | 8000 | 8000 |
| Water consumption | kw | 4 | 4 |

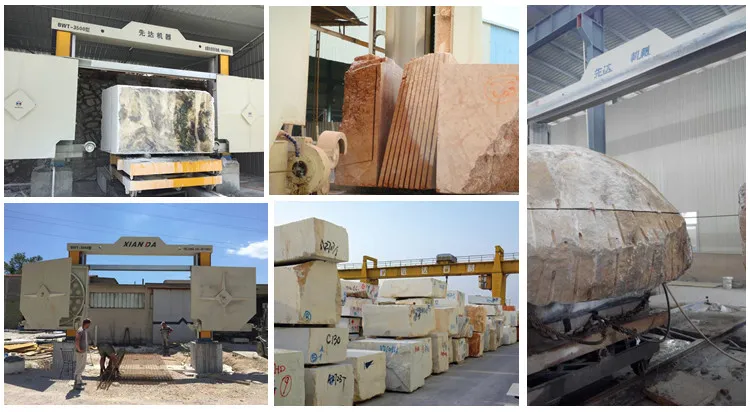

Factory Overviews
