Product Description

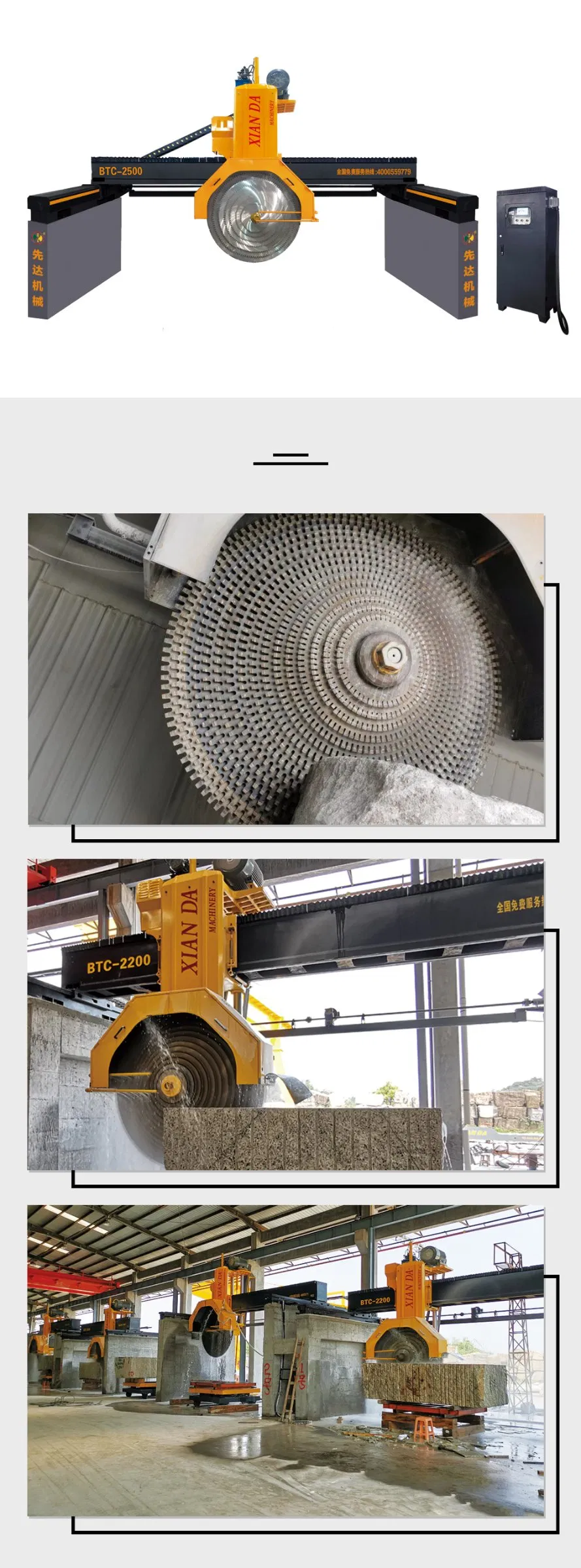

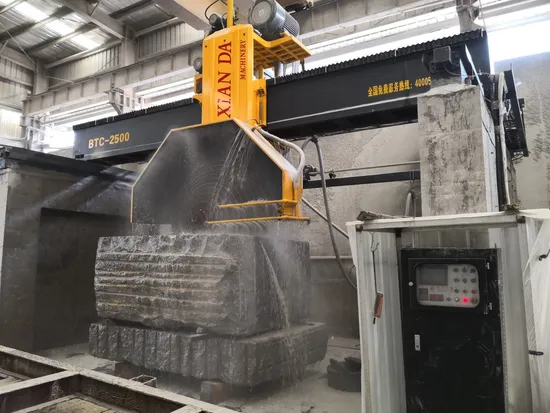

BTC-2500/2800 Multi-blades Granite Marble Bridge Block Cutting Machine uses inverter to control left-right feeding, speed adjustable. It uses hydraulic lifting system, combined with four guide poles, also Guide Sleeve with multi-functions layer seals, like waterproof, dustproof, anti-spill. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. Main spare parts adopt imported good-quality materials, the block can be placed on the ground directly. Thus the whole machine is featured with high cutting efficiency, high slicing precision, high flatness of plate after cutting, high stability, easy-operating etc. It is a ideal equipment for your fabricating plant.
Note: 360°rotating worktable can be selected if customer requires.
Technical Parameter
| Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | 2200 | 2500 | 2800 |
| Max processing length | mm | 3600 | 3300 | 3200 |
| Max processing width | mm | 2200 | 2200 | 2800 |
| Max lifting stroke | mm | 1350 | 1350 | 1350 |
| Water consumption | m3/h | 15 | 15 | 15 |
| Main motor | kw | 45/55 | 45/55 | 55 |
| Gross motor | kw | 56/66 | 56/66 | 66 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800*3700 |
| Gross weight | kg | 14000 | 14500 | 15000 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
