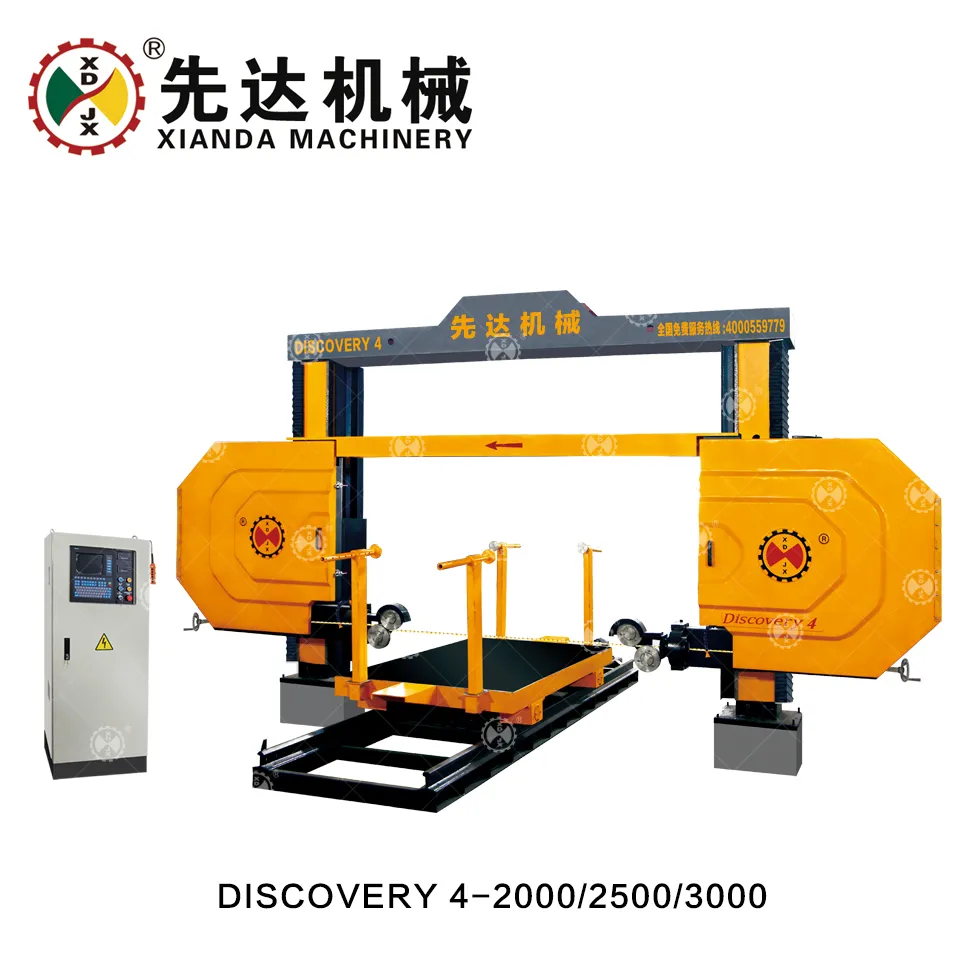

Xianda CNC Diamond Wire Saw Discovery 4-2500 Ultimate
Stone Cutting Machine
Product Description

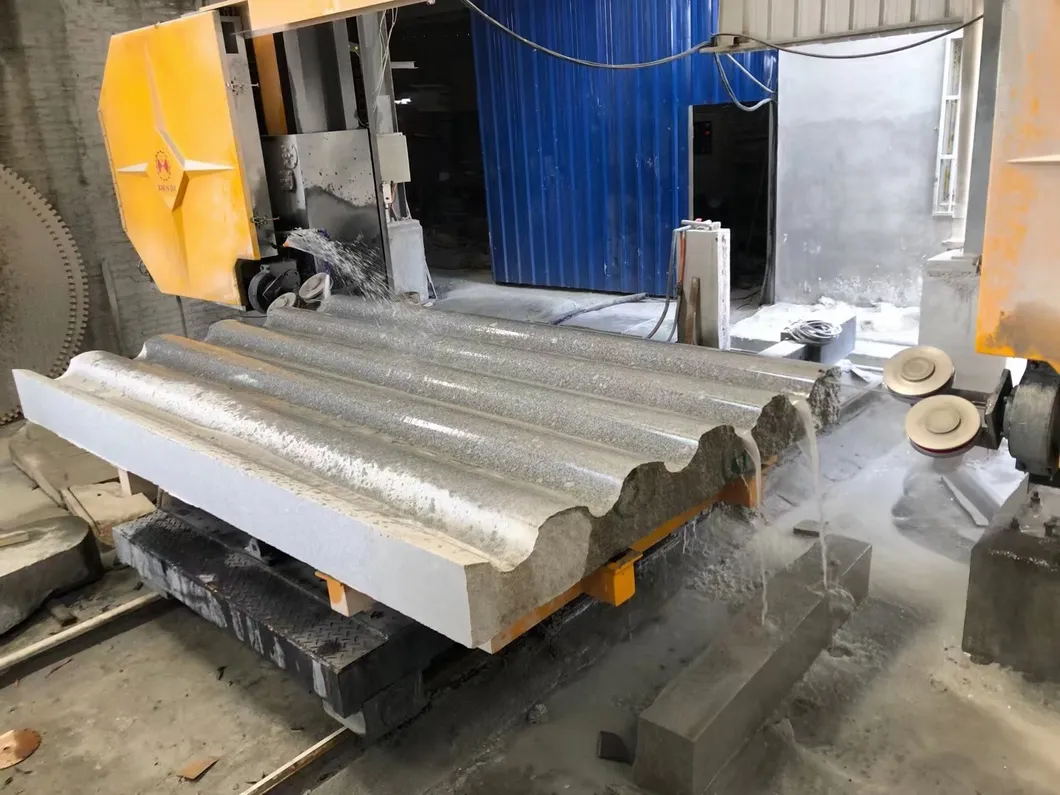

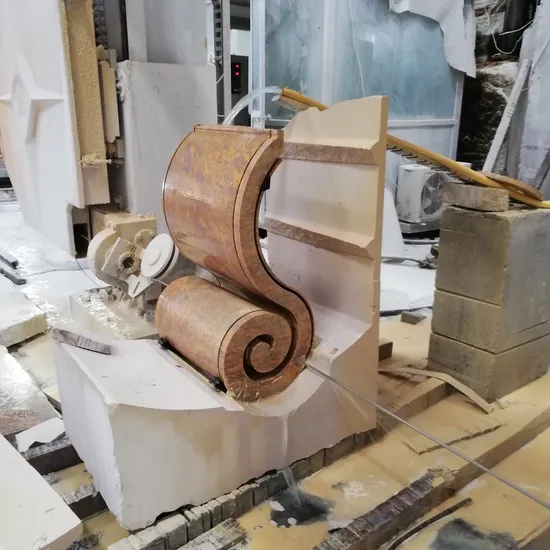

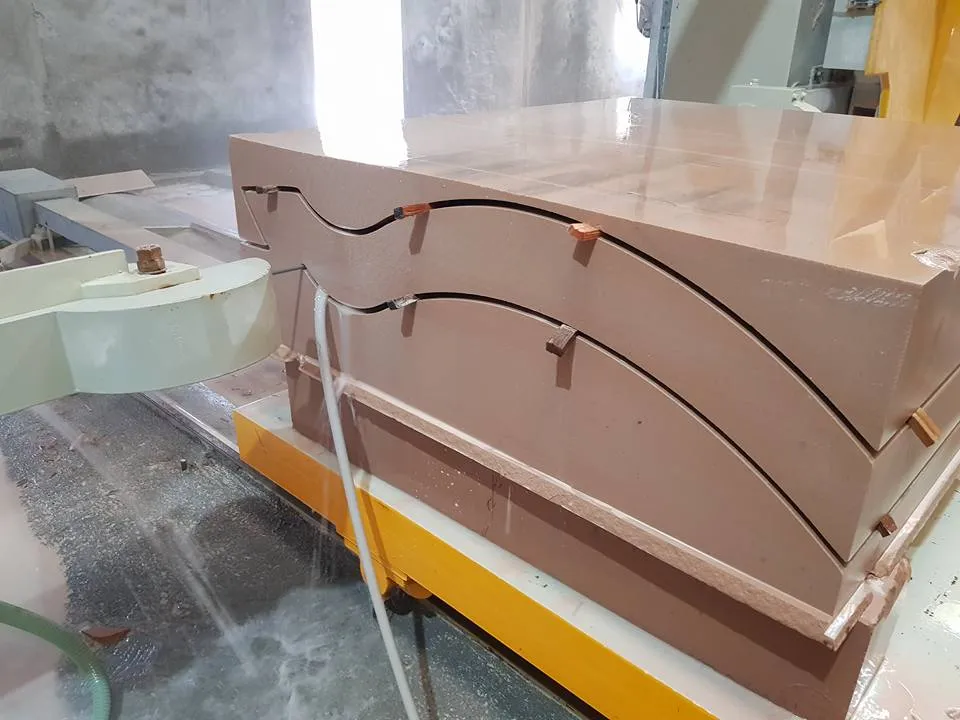

Fujian Xianda DISCOVERY 4-2000/2500/3000,Discovery 4 is our Ultimate version in CNC Diamond Wire Saw Machine .Lifting structure adopt 16 surface slideway, 28pcs rolling wheels structure. Trolley using double nut structure ,the track using steel frame-type reinforcement structure; Cantilever gearbox use S-type channel waterproof structure ,Main motor have variable frequency speed control function,with more advantages during processing , like cutting more precision ,precision more durable,cutting more stable,more efficiency,etc.Meanwhile this machine adopts CNC control , four-spindle linkage, which can process the circular stone slab, column , numeral, letter, Chinese characters and other shapes for the stone.
Product Parameters
| Parameter | Unit | Discovery 4-2000 | Discovery 4-2500 | Discovery 4-3000 |
| Max processing size | mm | 2000*3000*1500 | 2500*3000*1500 | 3000*3000*1500 |
| Dimension of worktable | mm | 1400*2500 | 1400*2500 | 1400*2500 |
| Main motor | kw | 11 | 11 | 11 |
| Outline dimension | mm | 6800*6300*3950 | 7800*6300*3950 | 8800*6300*3950 |
| Gross weight | kg | 6000 | 6250 | 6500 |
| Water consumption | m3/h | 4 | 4 | 4 |
