Bridge saw machine Dual drive cutting machine Stone cutter machine
Product Description

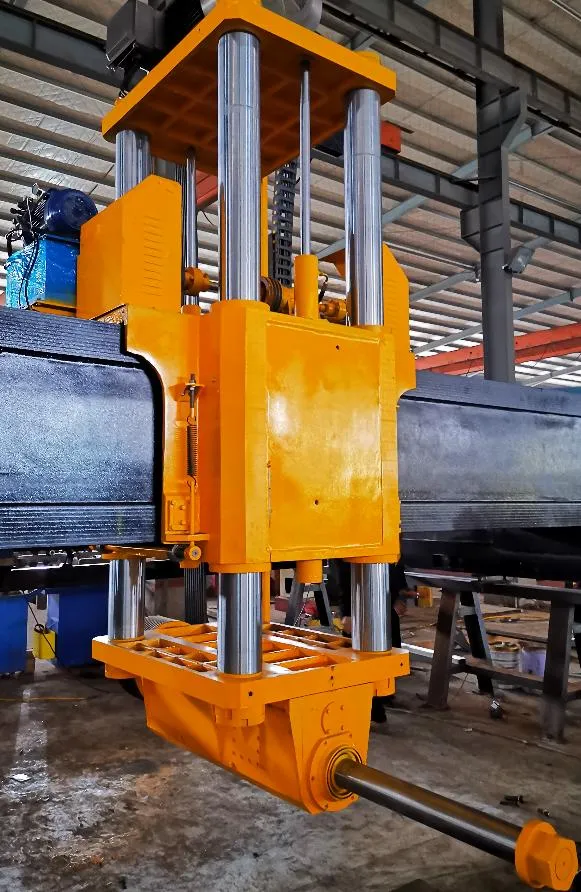

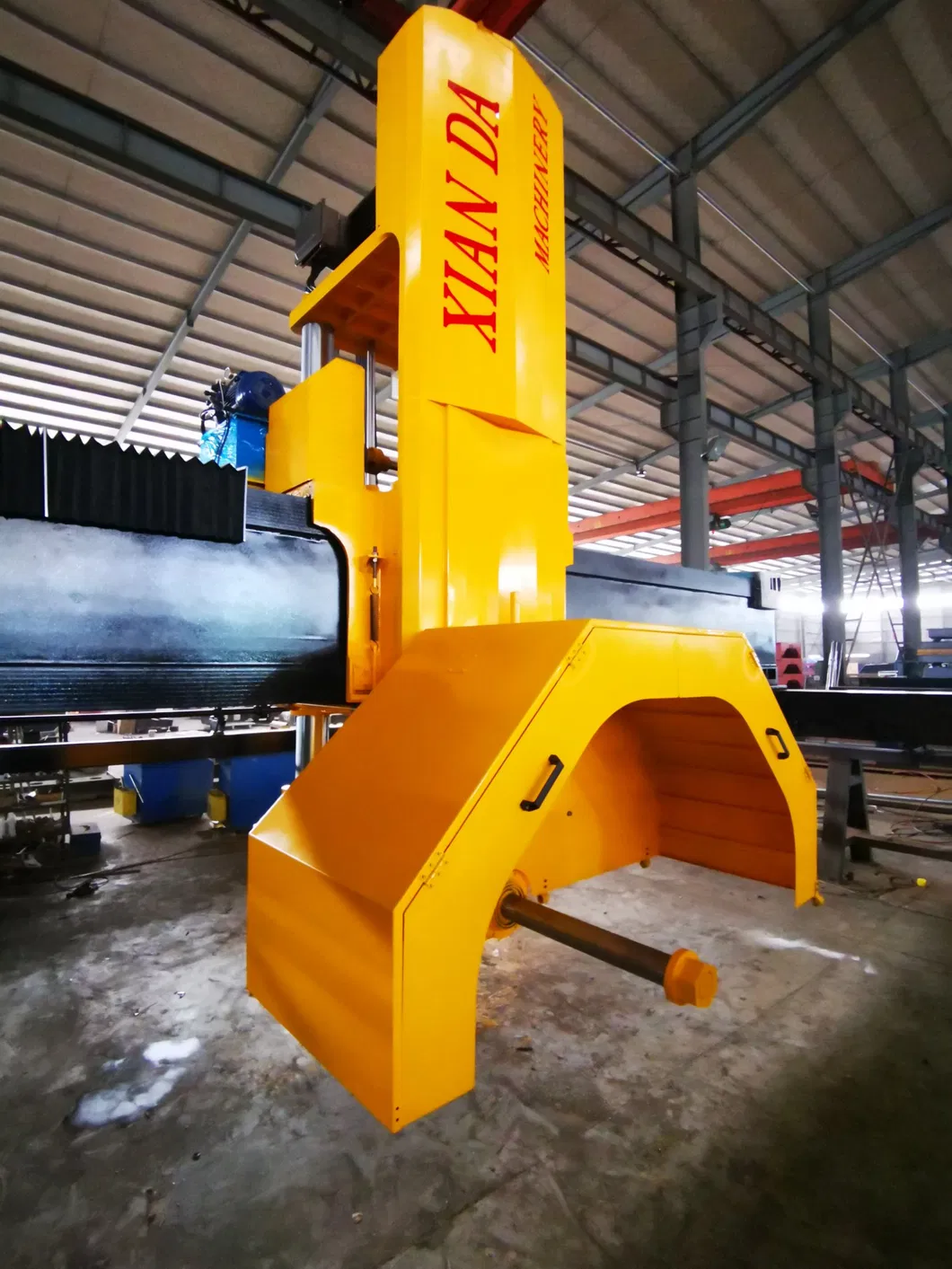

Fujian Xianda DQCM-26-75/95-A/B,Dual drive heavy duty block cutting machine , adopts our patented dual-drive mode (one pull and one push) for moving left and right ,and can adjust the moving speed according to the material ,and cooperate with the Dual V-track beam track ,so moving more stable; Lifting using hydraulic , with four guide pose made of 200mm solid round steel chrome-plated ;front and back adopt screw drive and double nut drive ,and cooperate with the oil-immersed sidebeam rail ,which is more wear -resis-tant ;adopts more longer and more heavy casting beams ,Cutting more stable .Main parts adopt imported materials ;The block can be placeed in the ground directly to save worktable and its maintenance costs ;Thus the whole machine is featured as high cutting efficiency ,high slicing precision ,flatness of plate after cutting ,high stability ,easy-operating to suit specially cutting granite block.
Product Parameters
| Parameter | Unit | DQCM-26-75-A | DQCM-26-75-B | DQCM-26-95-A | DQCM-26-95-B |
| Blade Diameter Range | mm | 1650*2500 | |||
| Max Processing Length | mm | 3600-2700 | 5600-4700 | ||
| Max Processing Width | mm | 2200 | 3300 | 2200 | 3300 |
| Max Lifting Stroke | mm | 1150 | |||
| Power of Main Motor | kw | 90(Standard)/110(Costomized) | |||
| Gross Power | kw | 105(125) | 106(126) | ||
| Outline Dimension | mm | 8000*5400*3800 | 8000*6500*3800 | 10000*5400*3800 | 10000*6500*3800 |
| Water Comsumption | m³/h | 25 | 25 | 25 | 25 |
| Gross Weight | kg | 22500 | 23500 | 25500 | 26500 |
| Guide Pole Diameter | mm | 200 | |||
| Shaft Diameter | mm | 120 | |||
| Crossbeanm Size | mm | 820*950*7500 | 820*950*9500 | ||
| Sidebeam Length | mm | 4500 | 5600 | 4500 | 5600 |
