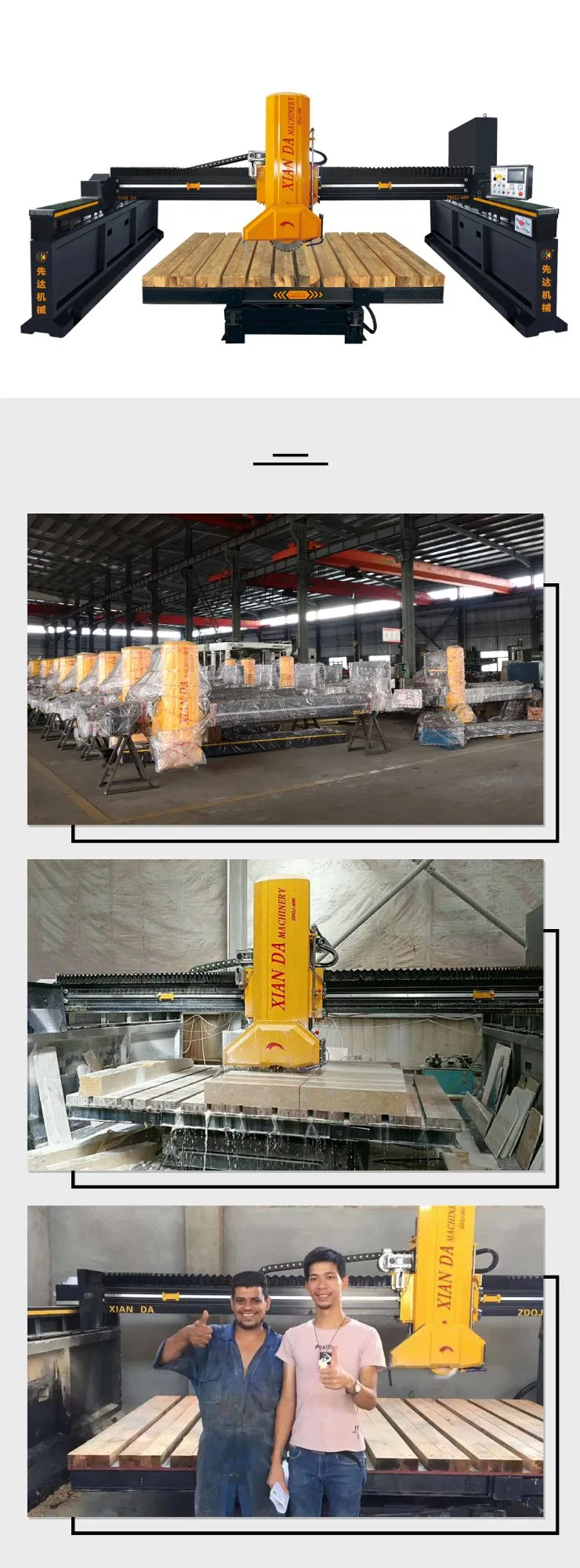

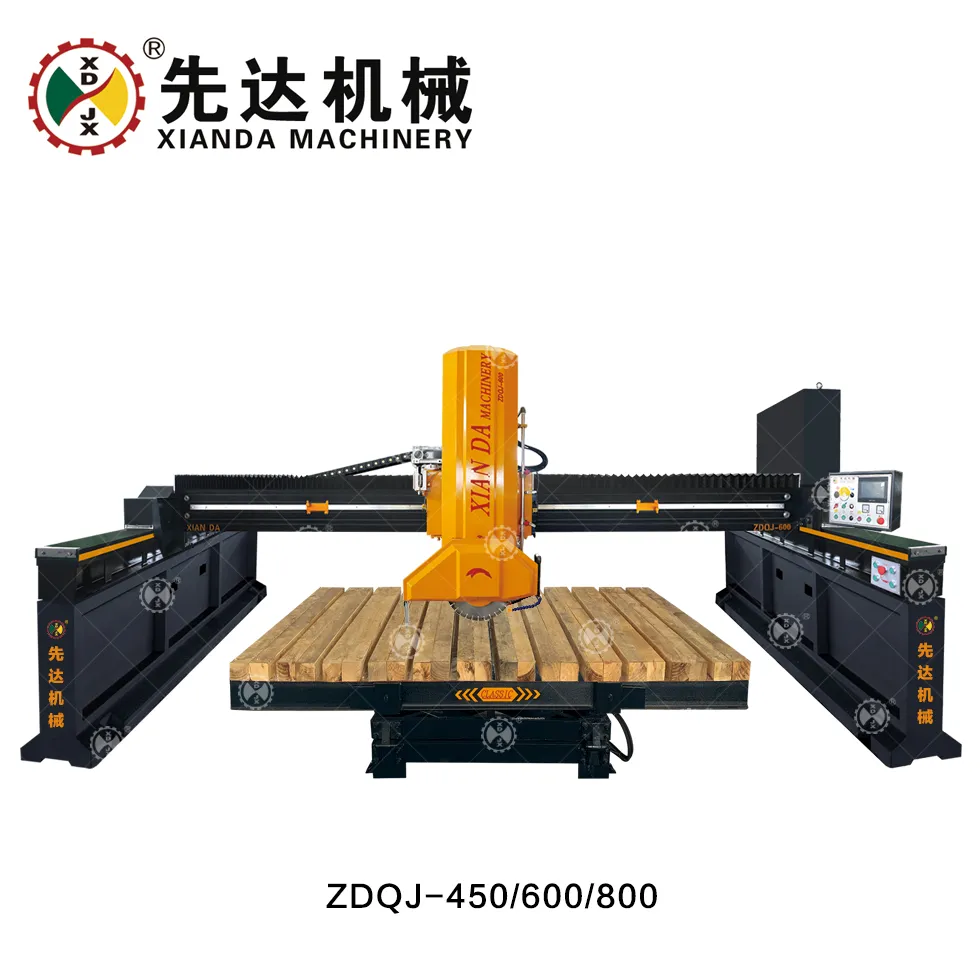

CE Laser Bridge Type Stone Cutting Machine for Granite marble ZDQJ-450
Product description
This machine is controlled by microcomputer, its worktable can be 909360 rotating. Special structure for the guide pulleyand side beam makes its cutting high accuracy, high stability, high efficiency. lt’s suitable for processing the marble&granite with high value.
Technical Parameter
|
Parameter
|
Unit
|
ZDQJ-450
|
ZDQJ-600
|
ZDQJ-800
|
|
Blade Diameter
|
mm | φ300-φ450 |
φ350-φ600
|
φ500-φ800
|
|
Max Processing Size
|
mm |
3200*2000*100
|
3200*2000*170
|
3200*2000*270
|
| Trolley Size | mm | 3200*2000 |
3200*2000
|
3200*2000
|
|
Worktable Tilting Angle
|
°
|
0-85° |
0-85°
|
0-85°
|
|
Worktable Rotation Angle
|
°
|
0-90°/0-360° (optional) |
0-90°/0-360° (optional)
|
0-90°/0-360° (optional)
|
|
Main Motor
|
kw |
15
|
18.5
|
22
|
|
Gross Power
|
kw |
20.5
|
24
|
27.5
|
|
Water Consumption
|
m³/h |
3
|
3
|
3
|
|
Outline Dimension
|
mm |
5850*4700*2700
|
5850*4700*3000
|
5850*4700*3450
|
|
Gross Weight
|
kg | 5500 |
5750
|
6000
|
