Block cutting machine for granite marble cutting machine BTC-2200/2500/2800

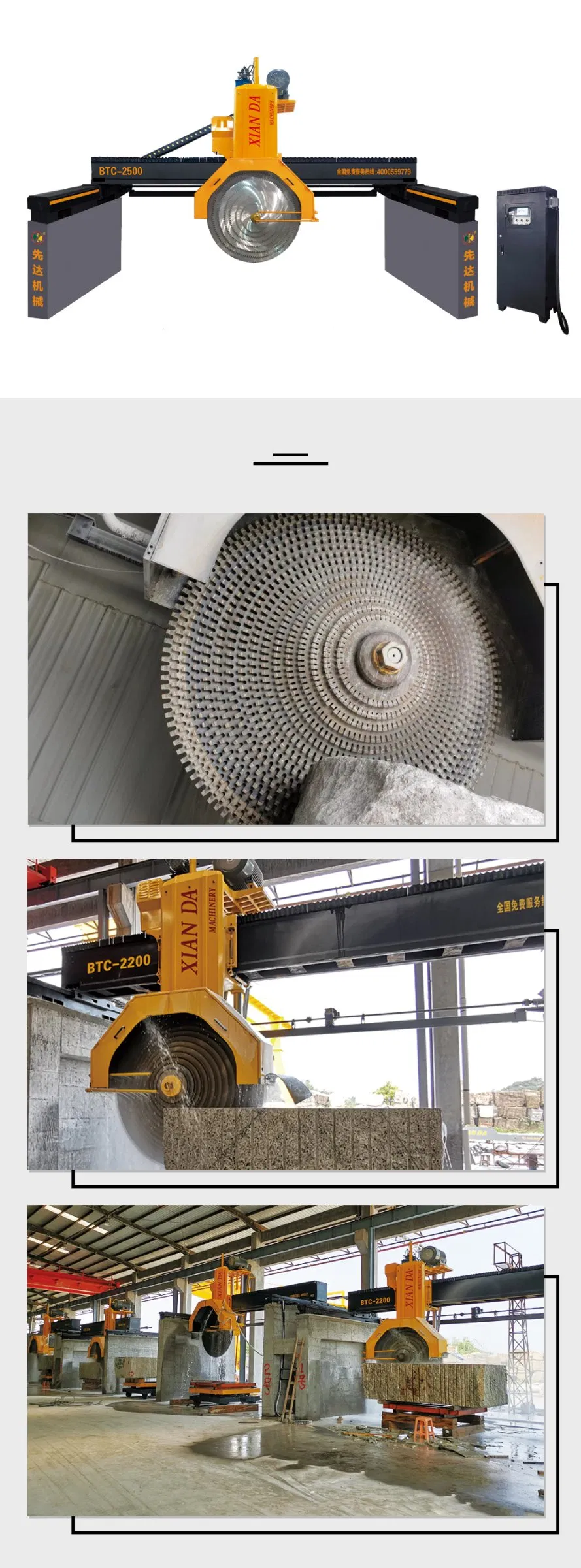

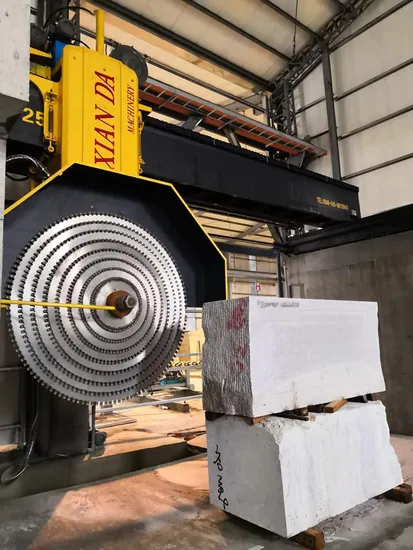

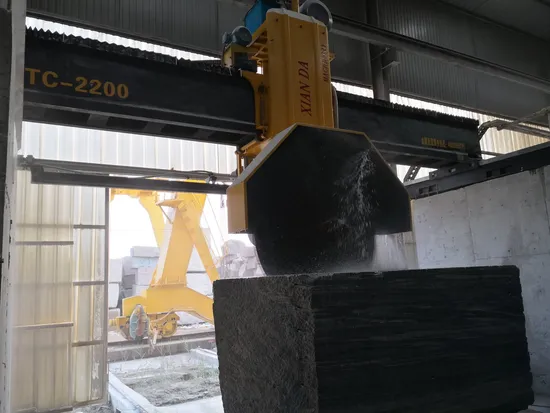

Product Show
Product Description
1.BTC-2500/2800 adopts frequency converter to control the left and right feeding to adjust the speed according to the stone material, and the speed can be adjusted according to the stone material.
2.Adopt hydraulic lifting system
3.The front and rear shards are driven by high-precision screw nuts and automatically sharded. The main spare parts are made of imported high-quality materials. The raw materials can be placed directly on the ground, saving workbench and maintenance costs.
3The whole machine has the characteristics of high cutting efficiency, high slicing accuracy, flat plate after cutting, high stability, and easy operation.
4.It is especially suitable for cutting high-value granite and marble blocks.

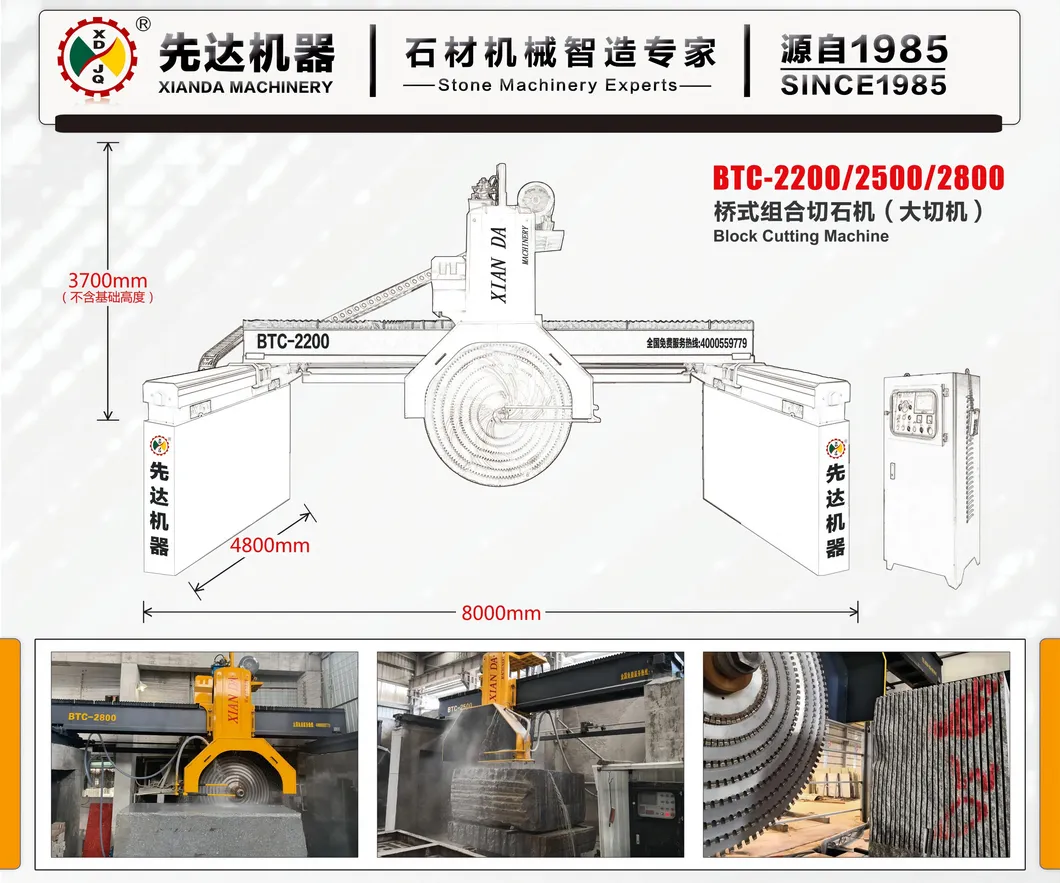

Product size details
Technical Data
| Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | φ2200 | φ2500 | φ2800 |
| Max processing length | mm | 3600 | 3300 | 3000 |
| Max processing width | mm | 2200 | 2200 | 2200 |
| Max lifting stroke | mm | 1350 | 1350 | 1350 |
| Main motor | kw | 45/55 | 45/55 | 55 |
| Gross motor | kw | 56/66 | 56/66 | 66 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800×3700 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Gross weight | kg | 14000 | 14500 | 15000 |
