Product Description

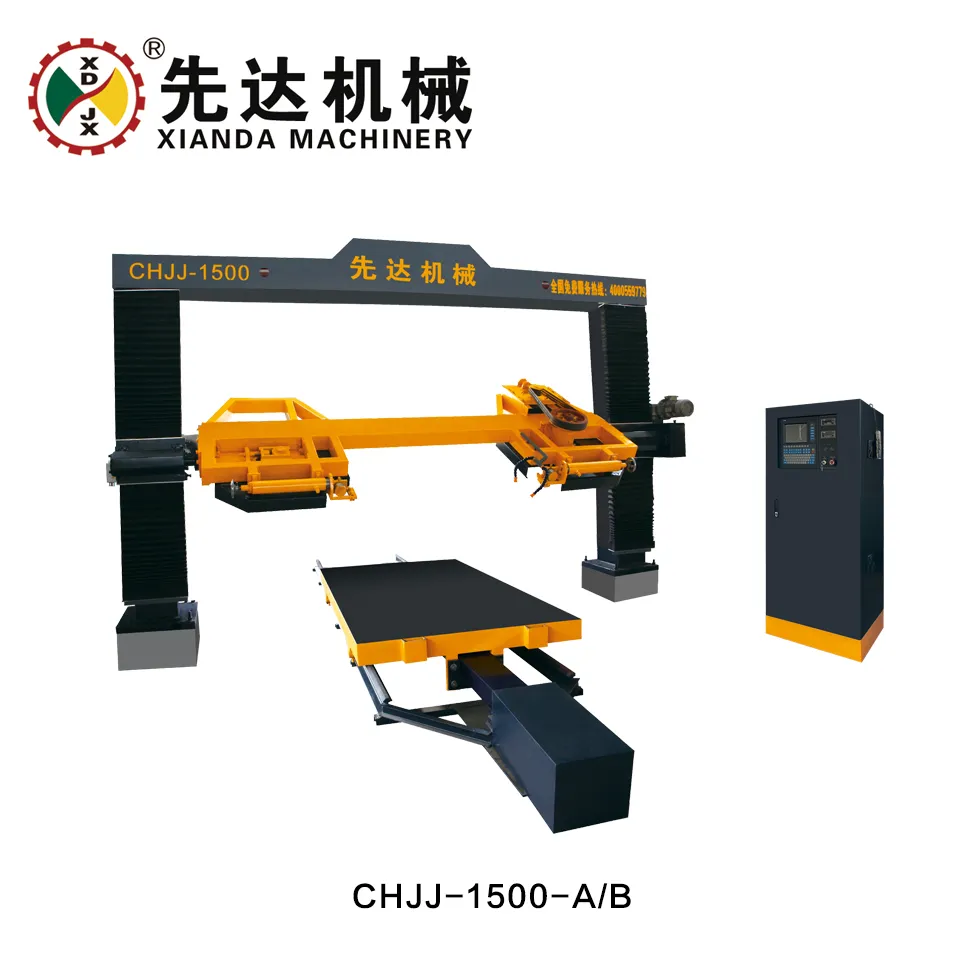

Xianda CHJJ-1500 CNC Circular slab stone cutting machine for mable adopts the latest structure design, the saw blade which operates around the central axis, slicing blocks is controled by the worktable automatic feeding. It has he features of lower energy consumption and small saw kerfs(3mm sawkerfs), saving blocks, simple operation, high precision and high efficiency. Maximum’s processing diameter range is 600mm to 2000mm, which is the optimal choice for processing the circular arc slab stone material.

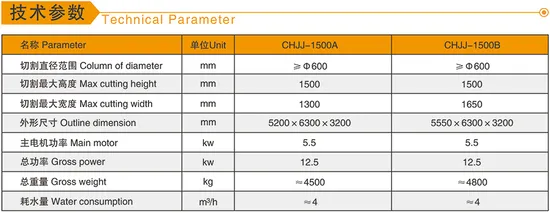

Technical Parameter
|
Parameter
|
Unit
|
CHJJ-1500
|
|
Column of diameter
|
mm
|
600
|
|
Max cutting height
|
mm
|
1500
|
|
Max cutting width
|
mm
|
1300
|
|
Outline dimension
|
mm
|
6300*5200*3200
|
|
Main motor
|
kw
|
4
|
|
Gross motor
|
kw
|
11
|
|
Gross weight
|
kg
|
5000
|
|
Water consumption
|
m3/h
|
4
|
Xianda Machinery

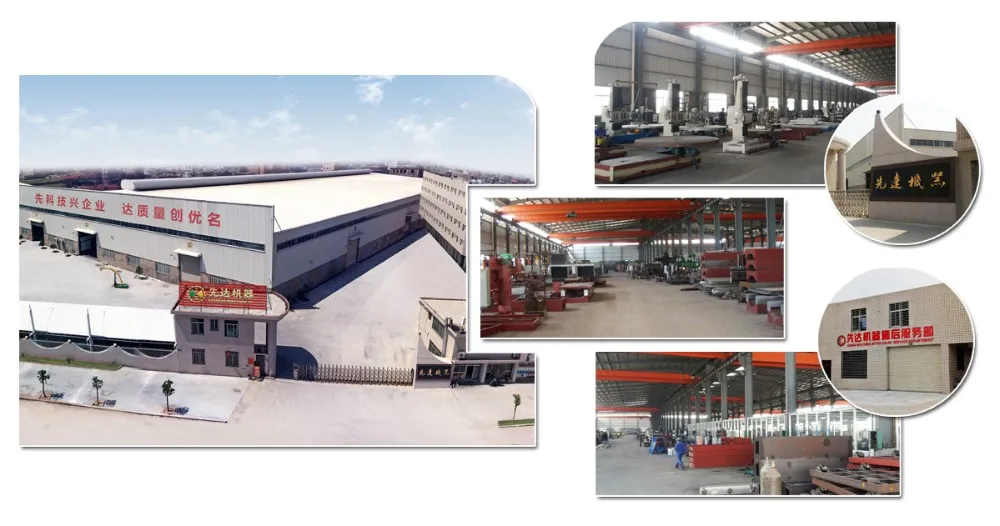

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
