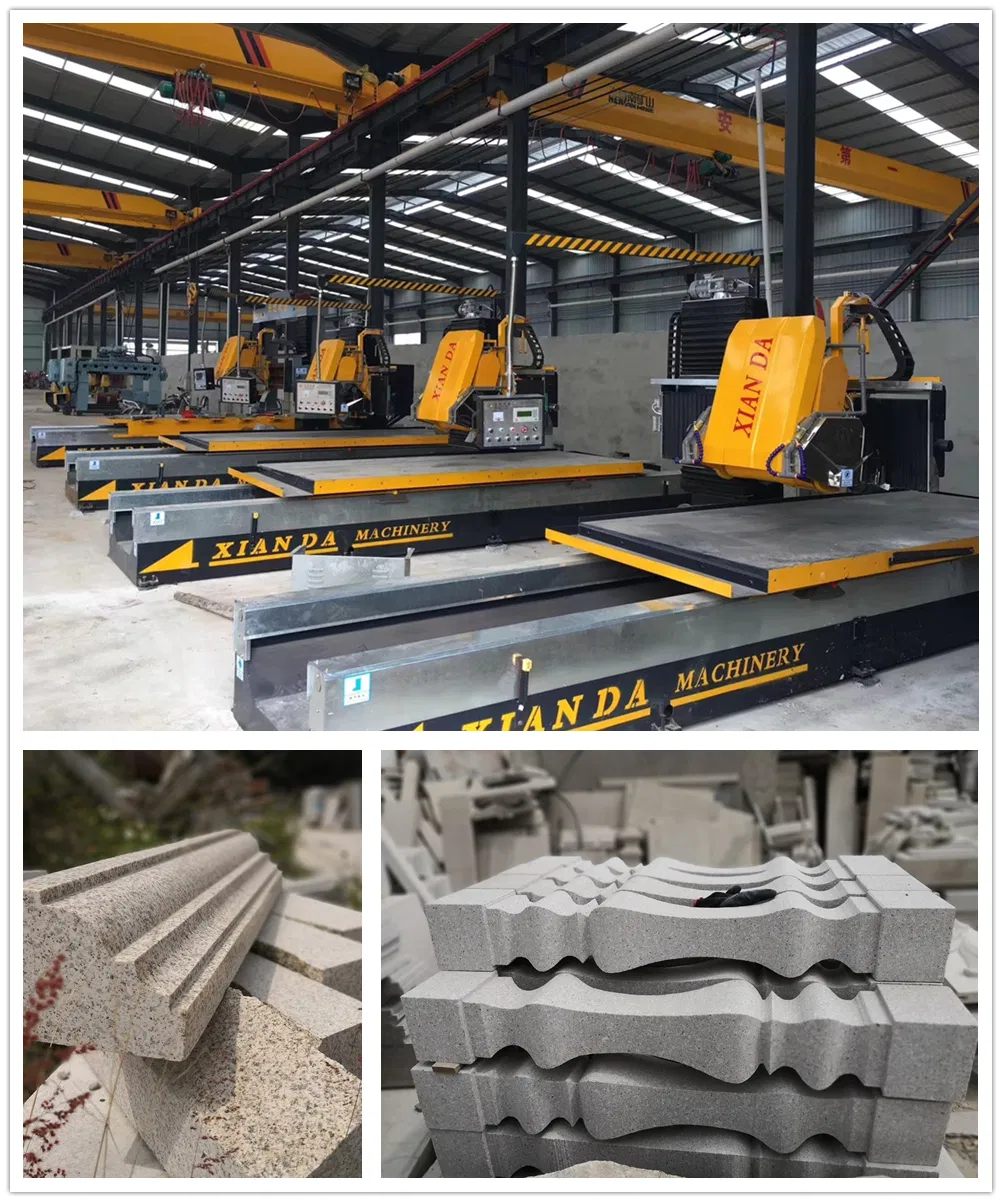

CNC Curve Linear Profiling Machine for Marble Granite CNFX-1300/1400

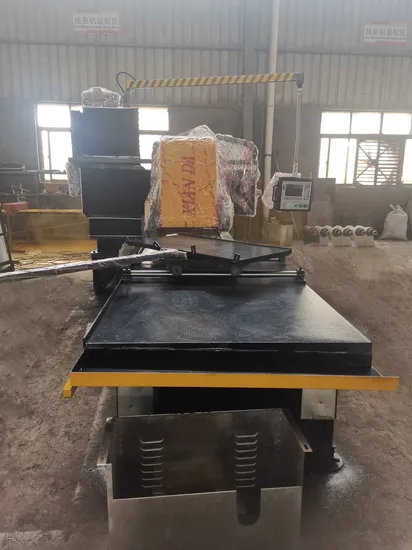

This machine adopts CNC system with double blades, it’s suitable for profiling the linear, also it can cut the squarebalusters. With extra rotating table, it can cut the curve linear. Easy operation makes it popular especially for new operators.
Technical Parameter
| Parameter |
Unit |
CNFX-1300 |
CNFX-1400 |
| Blade Diameter |
mm |
φ350-φ600 |
φ350-φ600 |
| Max Lifting Travel of Cutting Frame |
mm |
650 |
650 |
| Dimension of Worktable |
mm |
1300*3000 |
1400*3500 |
| Main Motor |
kw |
15 |
15 |
| Gross Motor |
kw |
18.5 |
18.5 |
| Outline Dimension |
mm |
5500*2300*2300 |
6000*2400*2300 |
| Gross Weight |
kg |
4000 |
4500 |
| Water Consumption |
m³/h |
6 |
6 |
Model NO.CNFX-1300/1400
TypeProfiling Cutting Machine
UsageGranite, Marble
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlCNC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Blade DiamensionΦ350-600mm
Max Lifting Travel of Cutting Frame650mm
Trolley Size1300*3000mm;1400*3500mm
Main Motor15kw
Gross Motor18.5kw
Outline Dimension5500*2300*2300mm;6000*2400*2300mm
Water Consumption6m3/H
Gross Weight4000kg;4500kg

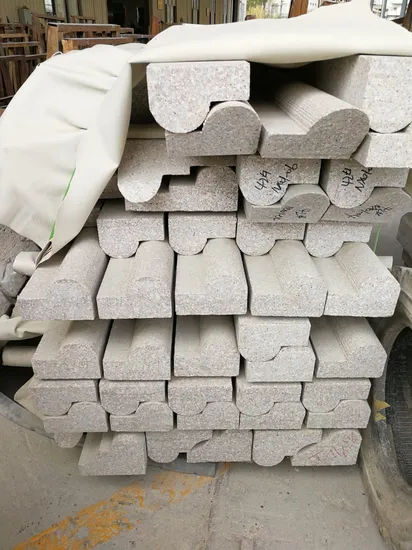

Use forCutting Profiling Lines,Column,Column Slab
Blade QtyTwo
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification5500*2300*2300mm; 6000*2400*2300mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
