الوصف

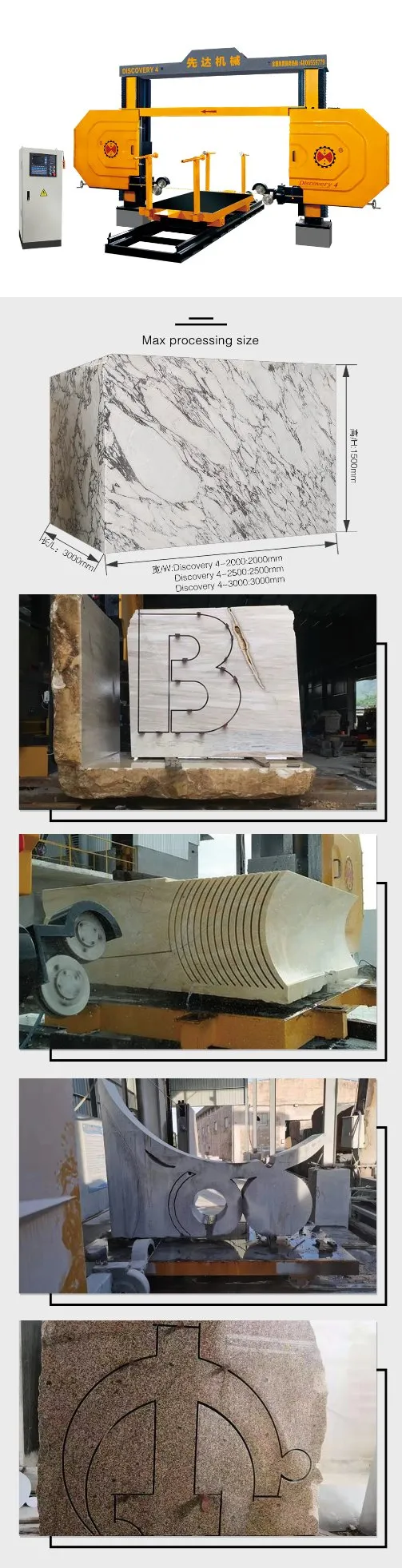

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
Technical Parameter

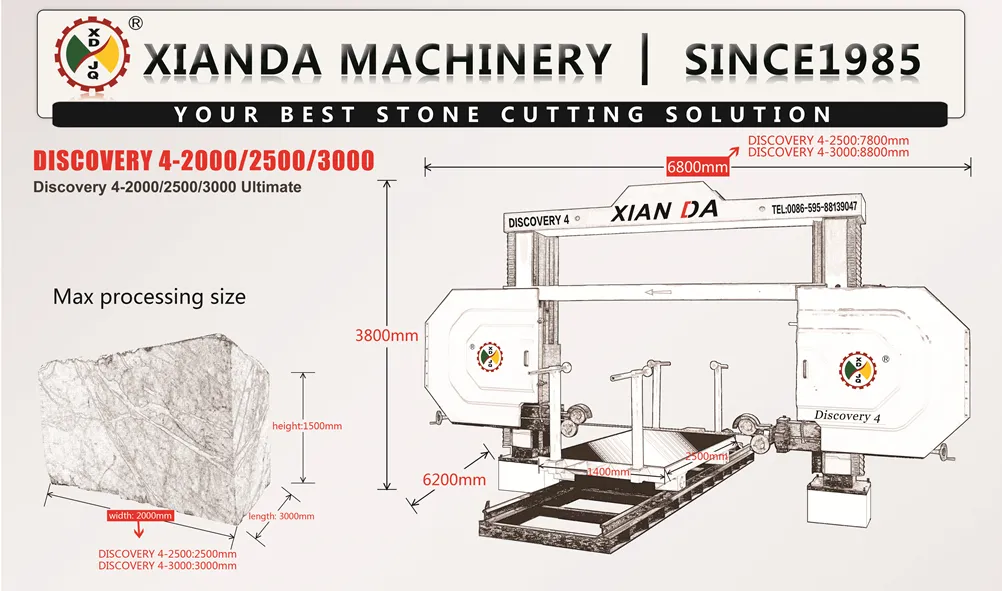

| Parameter | Unit | Discovery 4-2000 | Discovery 4-2500 | Discovery 4-3000 |
| Max Processing Size | mm | 2000*3000*1500 | 2500*3000*1500 | 3000*3000*1500 |
| Trolley Size | mm | 1400*2500 | 1400*2500 | 1400*2500 |
| Wire Speed | m/s | 0~40 | 0~40 | 0~40 |
| Main Motor | kw | 11 | 11 | 11 |
| Outline Dimension | mm | 6800*6300*3950 | 7800*6300*3950 | 8800*6300*3950 |
| Gross Weight | kg | 6000 | 6250 | 6500 |
| Water Consumption | m3/h | 4 | 4 | 4 |
| Max Processing Size (with rotary worktable) | mm | No option | 2500*2500*1500 | 3000*3000*1500 |
| Rotary Trolley Size (with rotary worktable) | mm | No option | 1400*2000 | 1600*2000 |
| Outline Dimension (with rotary worktable) | mm | No option | 7800*6300*4250 | 8800*6800*4250 |
Xianda machinery

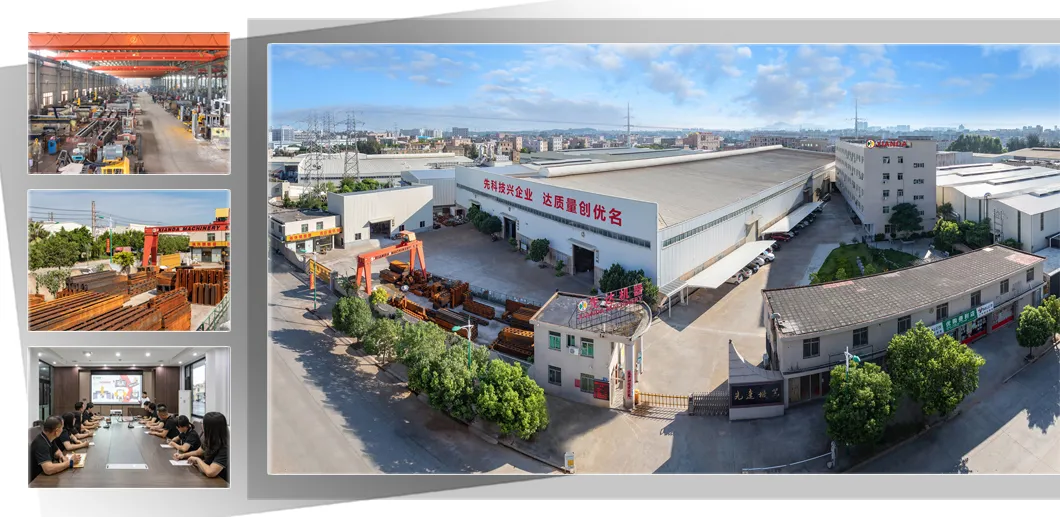

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting andcontacting is always welcomed.
