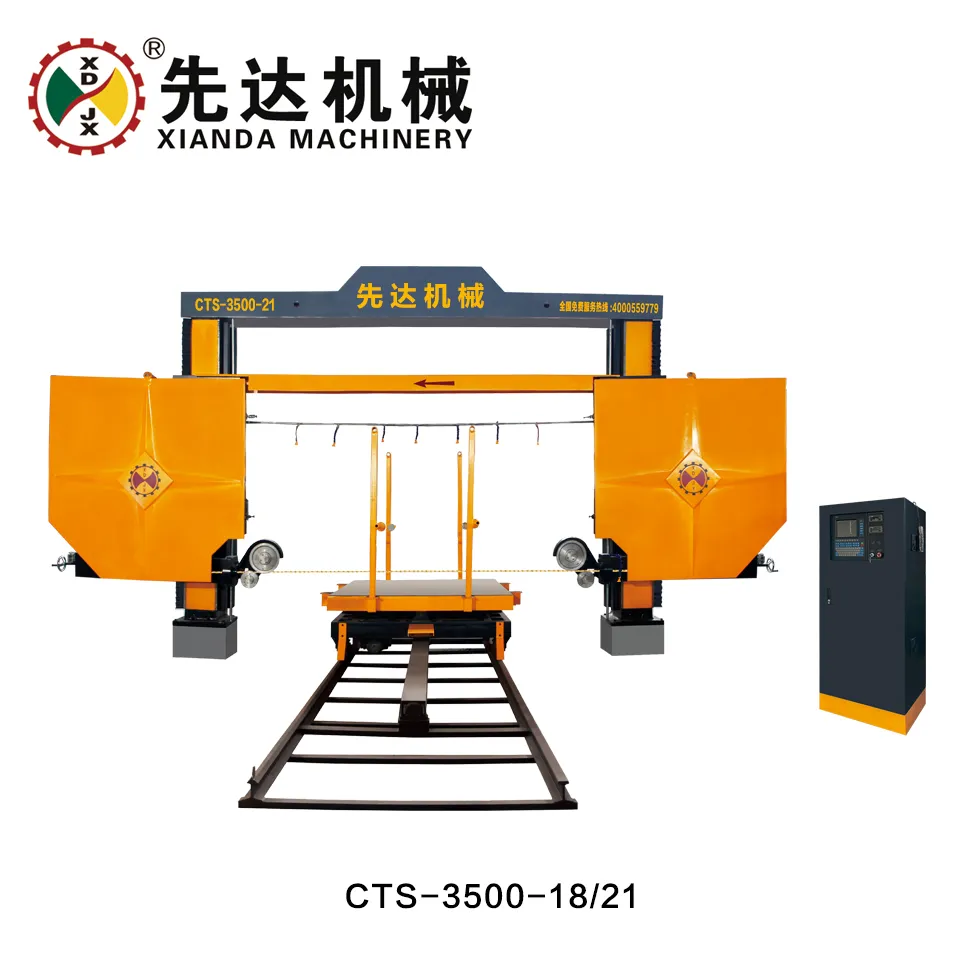

CTS-3500 CNC Diamond Wire-saw Machine
Product Parameters
| Parameter | Unit | CTS-3000-18 | CTS-3500-21 |
| Max processing size | mm | 3500*3000*1800 | 3500*3500*2100 |
| Wheel diameter | mm | 1900 | 2200 |
| Trolley size | mm | 1800*2000 | 2000*2500 |
| Table bearing weight | T | 35 | 50 |
| Wire speed | m/s | 0~40 | 0~40 |
| Main motor | kw | 11 | 15 |
| outline dimension | mm | 9300*6800*4800 | 9800*7400*5600 |
| Gross weight | kg | ≈9300 | ≈11000 |
| Water consumption | m3/h | 6 | 6 |

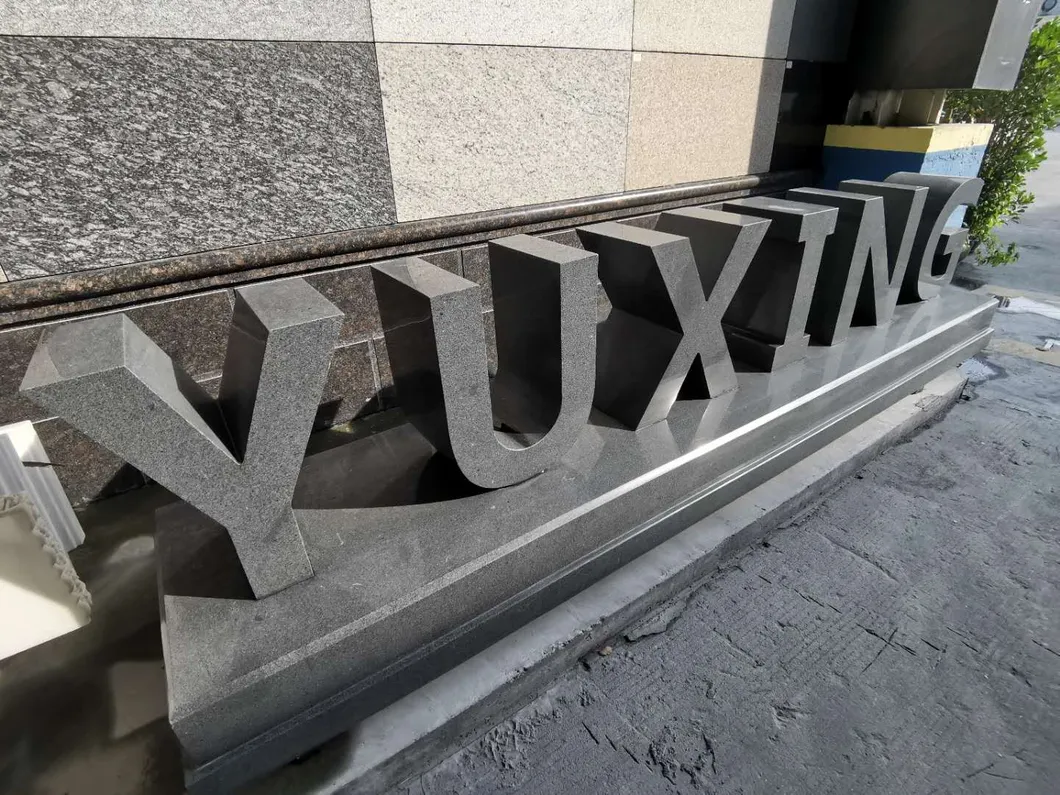

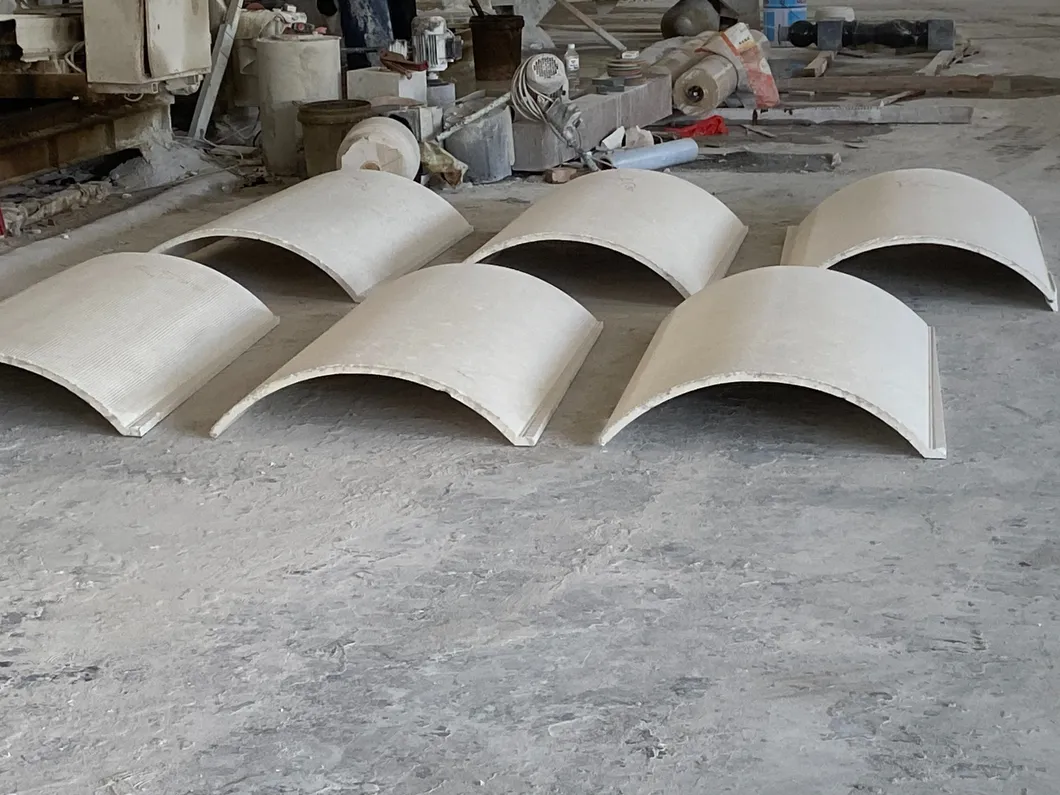

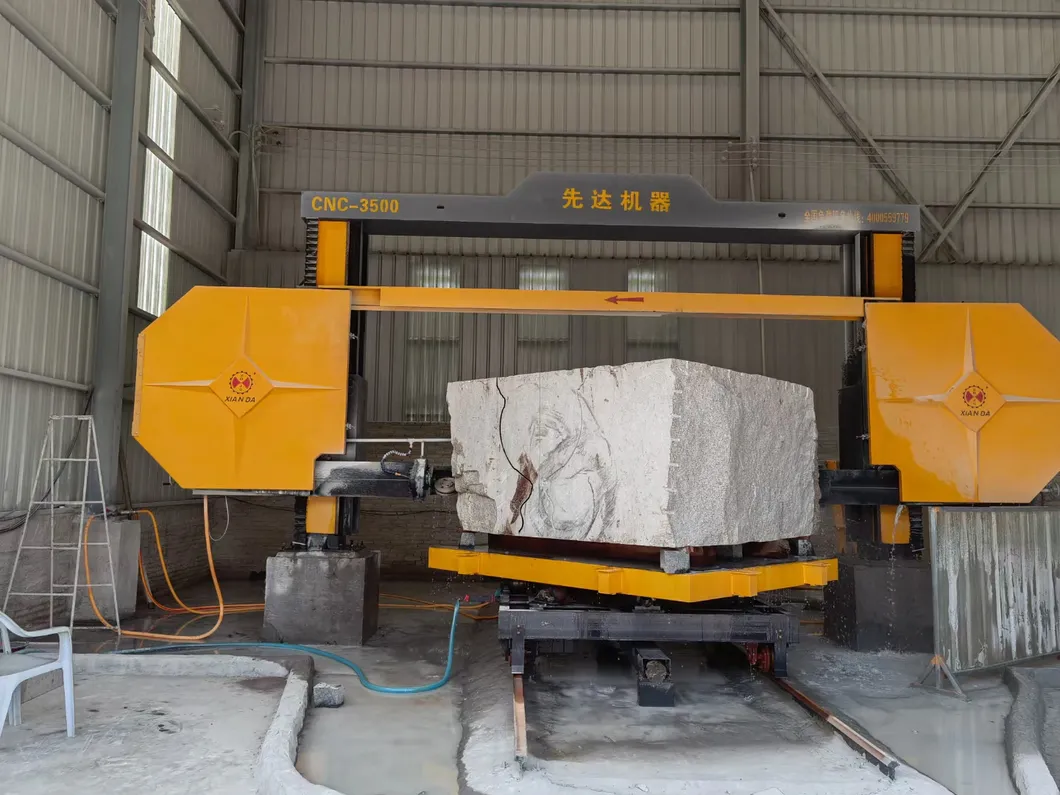

CNC-3500 adopts CNC system, fourlinkage, use 16 surfaces slideway, 28pcs rolling wheels structure. And synchronous lifting through intermediate drive, with 360 rotarytrolley, cutting stable and with high efficiency, it can dress 4 surfaces. Moreover, as it’s with CNC system, ti can process the column slab, pillar, numeral, letter, Chinese characters and other shapes for the stone.
