Product Description

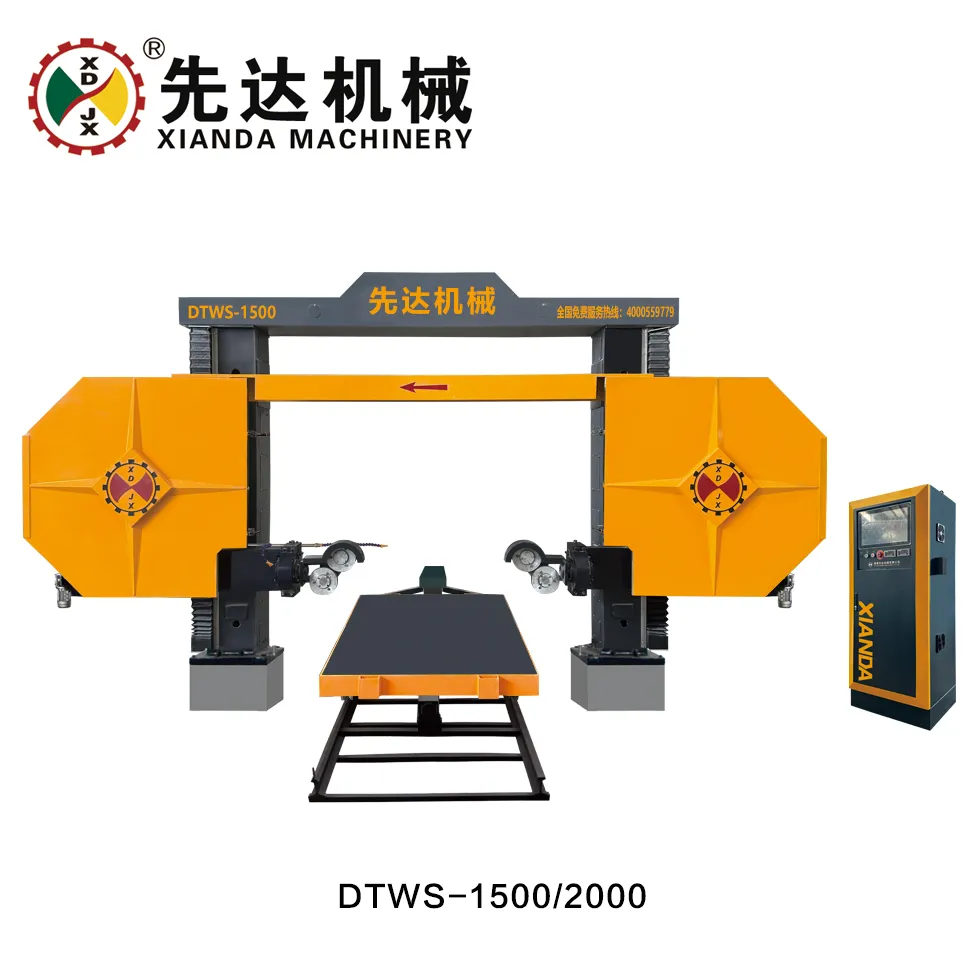

The machine adopts PLC control,three inverter,bridge structure,synchronous lifting and left-right walking,easy to operate,practical structure,and high efficiency.Dedicated to the processing of baluster,pillar,column base column caps,roadblock and other.
Specification
|
Technical Parameter
|
Unit
|
DTWS-1500
|
|

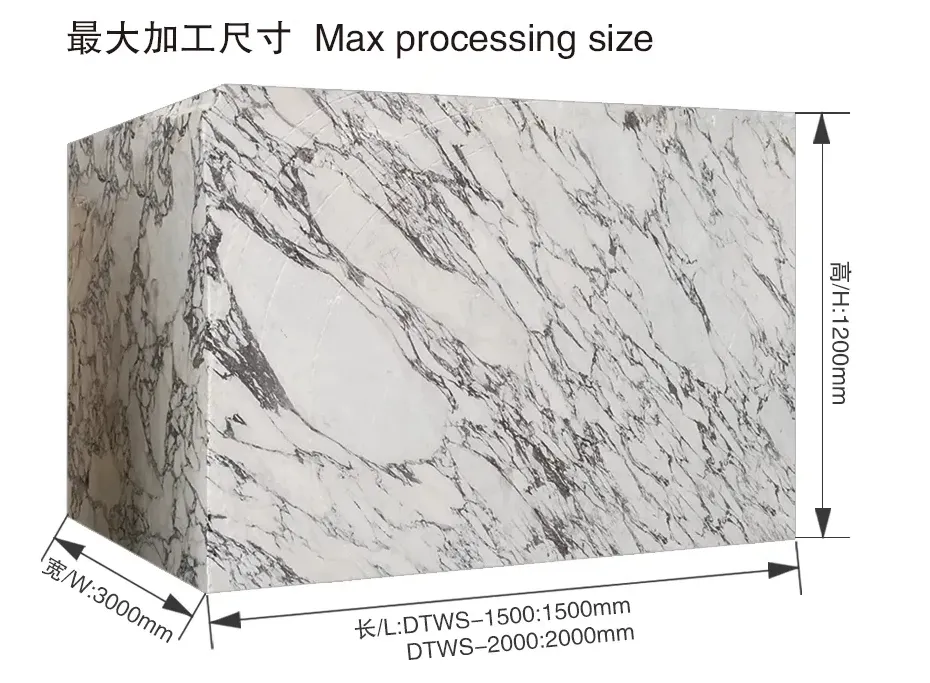

Max processing size
|
mm
|
1500 X3000X 1200
|
|
Wheel diameter
|
mm
|
1300
|
|
Trolley size
|
mm
|
1300 X 2500
|
|
Table bearing weight
|
T
|
15
|
|
Wire speed
|
m/s
|
20~40
|
|
Main motor
|
kw
|
11
|
|
Gross power
|
kw
|
17
|
|
Outline dimension
|
mm
|
6300 X 6300X 3300
|
|
Gross weight
|
kg
|
≈4600
|
|
Water consumption
|
m³/h
|
≈3
|
