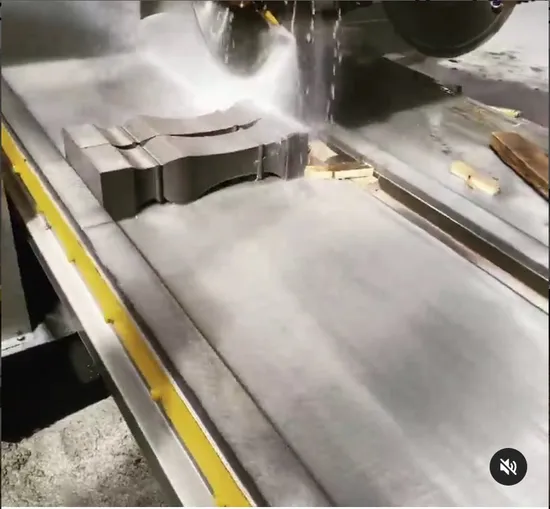

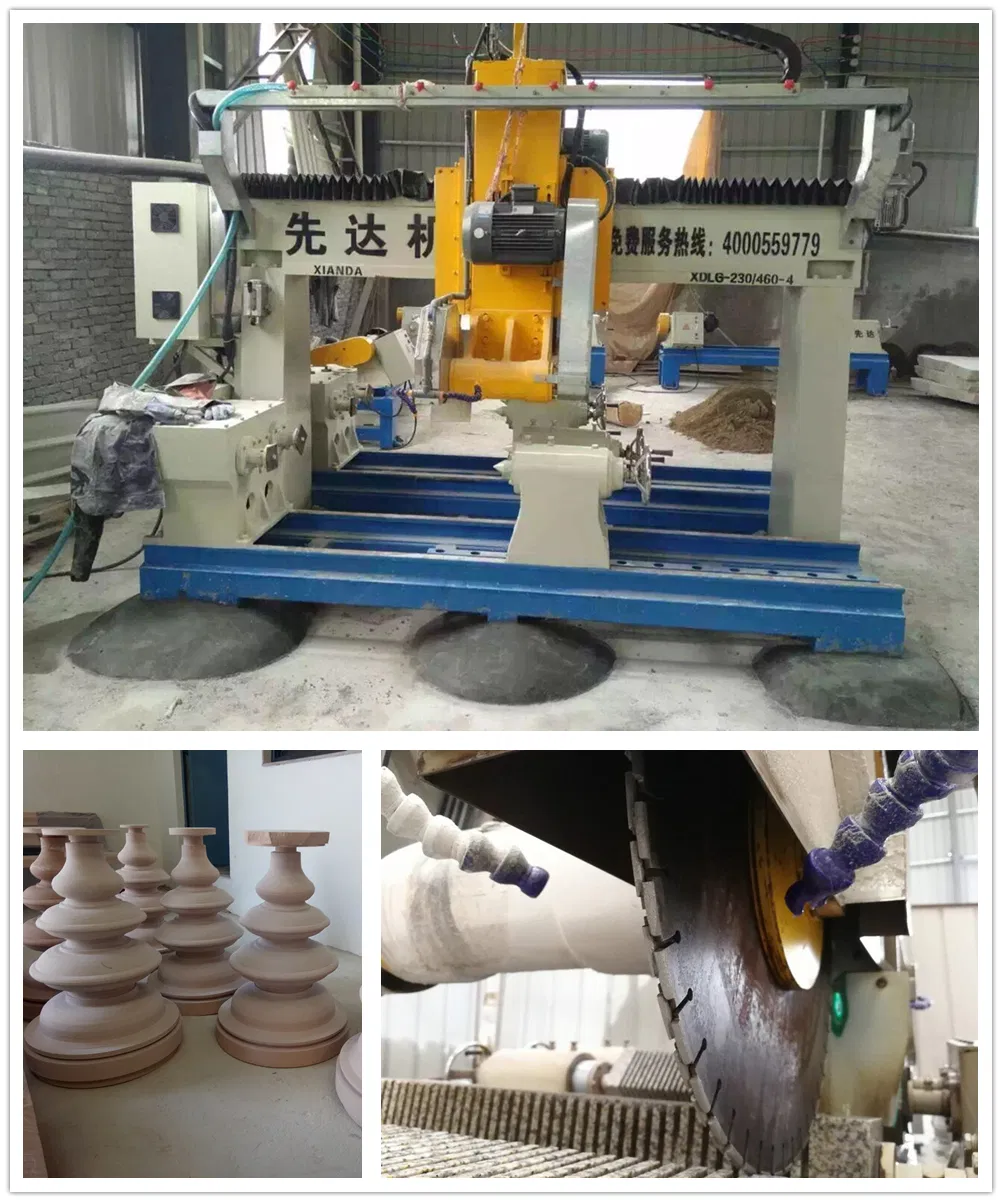

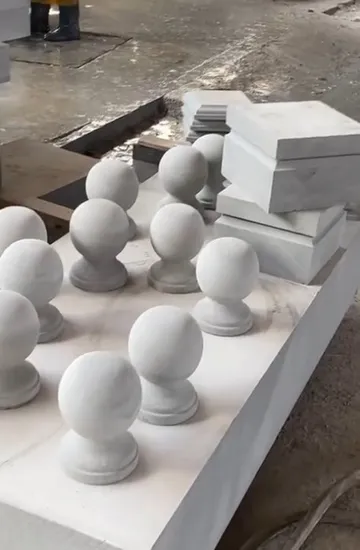

The machine adopts PLC/CNC system, three inverter, bridge sructure, synchronous lifting and Left-Right walkin, easy to operate, practical and high efficiency. Dedicated to the processing of baluster, pillar, column base and column caps, roadblock and others.

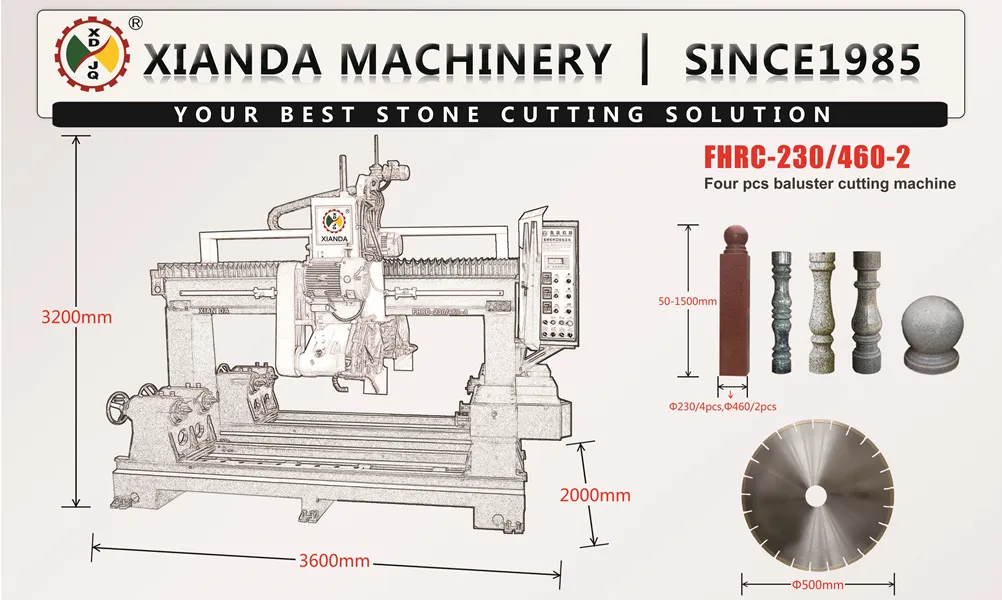

Technical Parameter
| Parameter | Unit | FHRC-250/500-4 CHRC-250/500-4 |
| Blade Diameter | mm | φ500 |
| Max Processing Diameter | mm | φ250/4pcs;φ500/2pcs |
| Processing Length | mm | 50-1500 |
| Main Motor | kw | 11×2 |
| Gross Power | kw | 29.5 |
| Outline Dimension | mm | 3600*2000*3200 |
| Gross Weight | kg | 5000 |
| Water Consumption | m³/h | 6 |

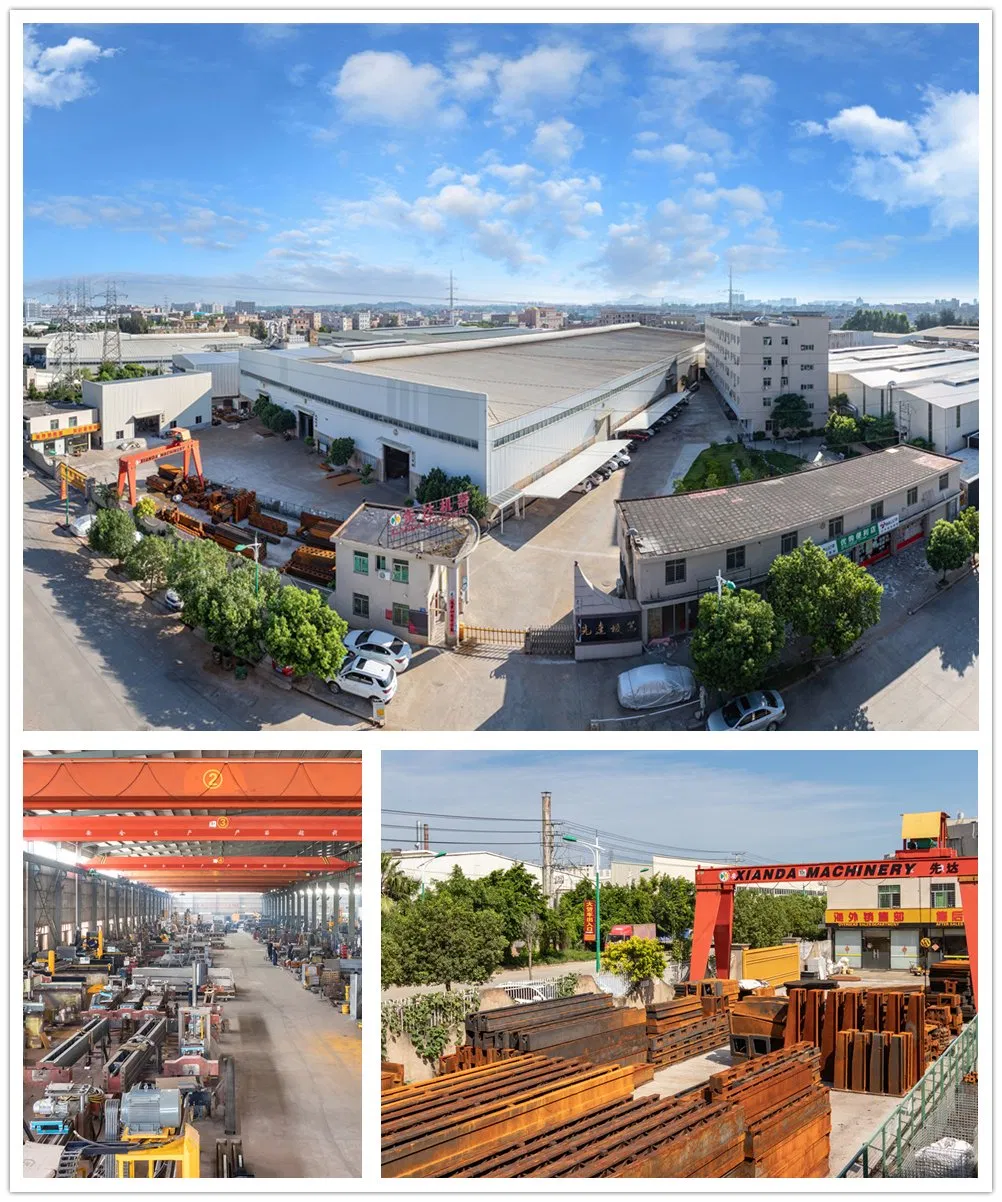

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting andcontacting is always welcomed.
