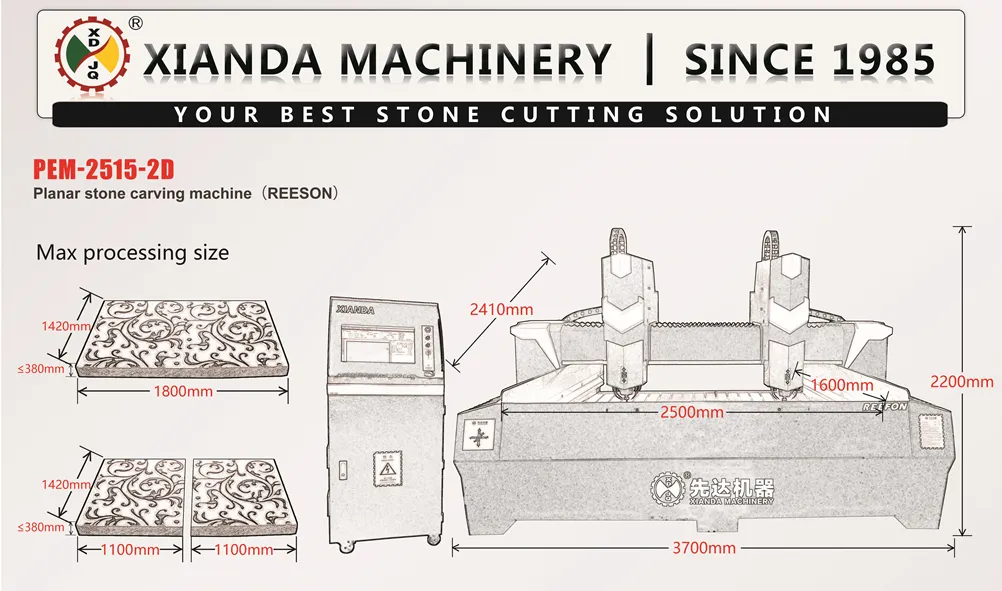

Planar Stone 3D Carving Machine Sculpture for Processing Marble Granite (REESON) PEM-2515-2D/3D

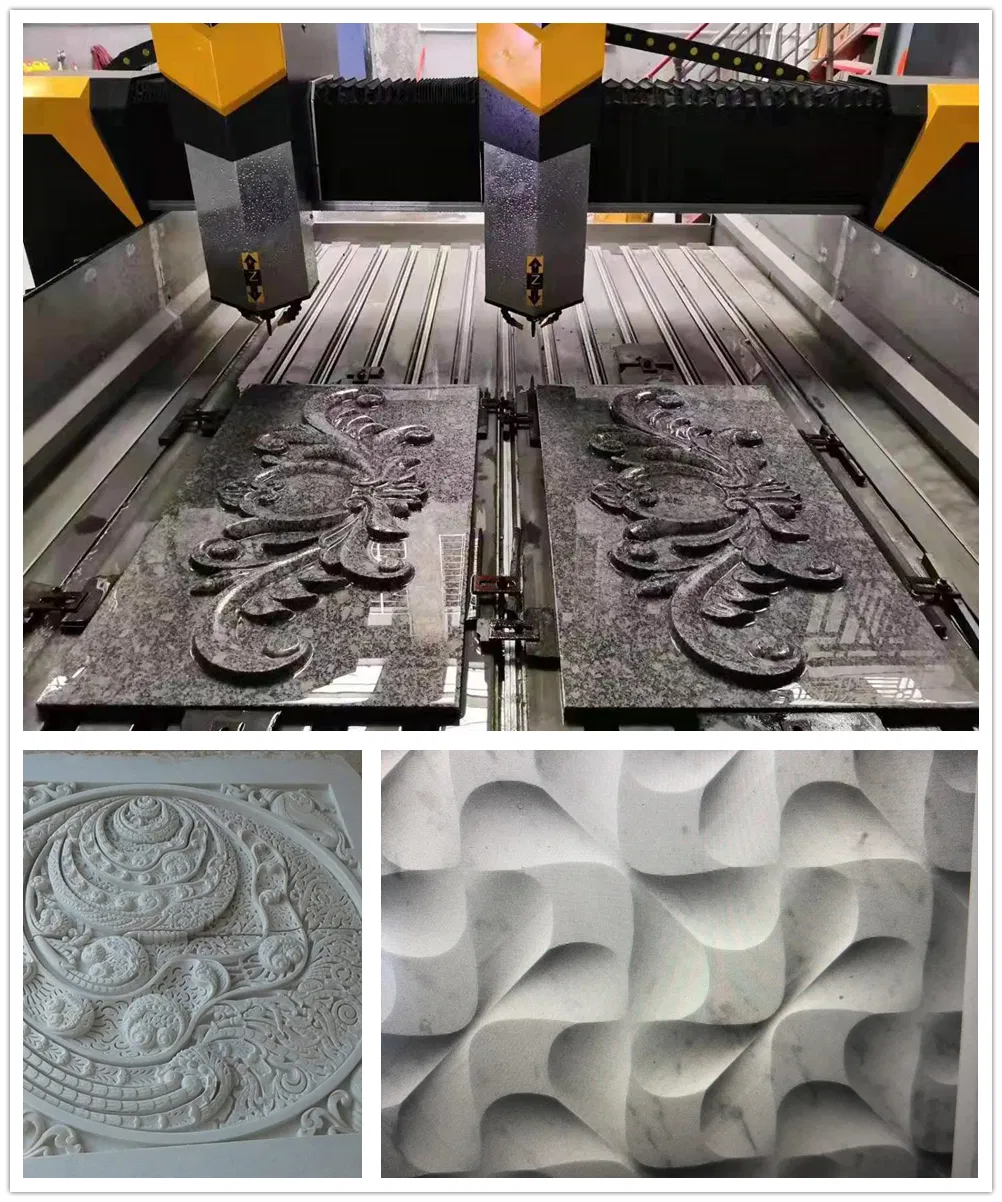

This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor,two-way tool cooling system, with stable running, high precision and high efficiency advantages,suitable for processing marble, granite, bluestone, jade,agate, copper plate and aluminum plate and other materials.
This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor,two-way tool cooling system, with stable running, high precision and high efficiency advantages,suitable for processing marble, granite, bluestone, jade,agate, copper plate and aluminum plate and other materials.
Technical Parameter
| Parameter | Unit | PEM-2515-2D | PEM-2515-3D | PEM-3015-3D | PEM-3015-4D |
| Dimension of Worktable | mm | 2500*1500 | 2500*1500 | 3000*1500 | 3000*1500 |
| Feed Height | mm | ≤350(≤650) | ≤350(≤650) | ≤350(≤650) | ≤350 |
| Air Speed | m/min | 15/12 | 13/10 | 13/10 | 10/8 |
| Number of Spindles | pcs | 2pcs | 3pcs | 3pcs | 4pcs |
| Spindle Power | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Outline Dimension | mm | 3700*2410*2200 3700*2410*3500 |
3700*2410*2200 3700*2410*3500 |
4200*2410*2200 4200*2410*3500 |
4200*2410*2200 |
| Water Consumption | m³/h | 2 | 3 | 3 | 4 |
