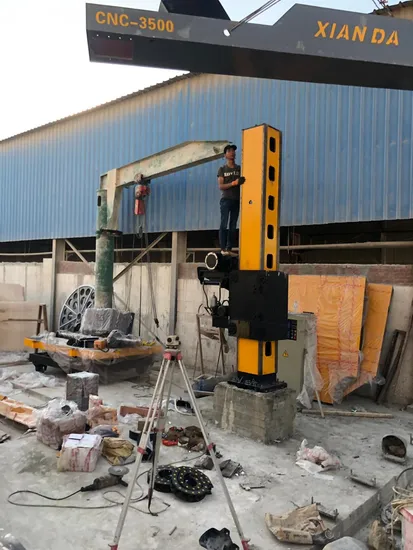

Diamond Wire Saw Machine Granite Marble Stone Cutting Machine CNC-3500

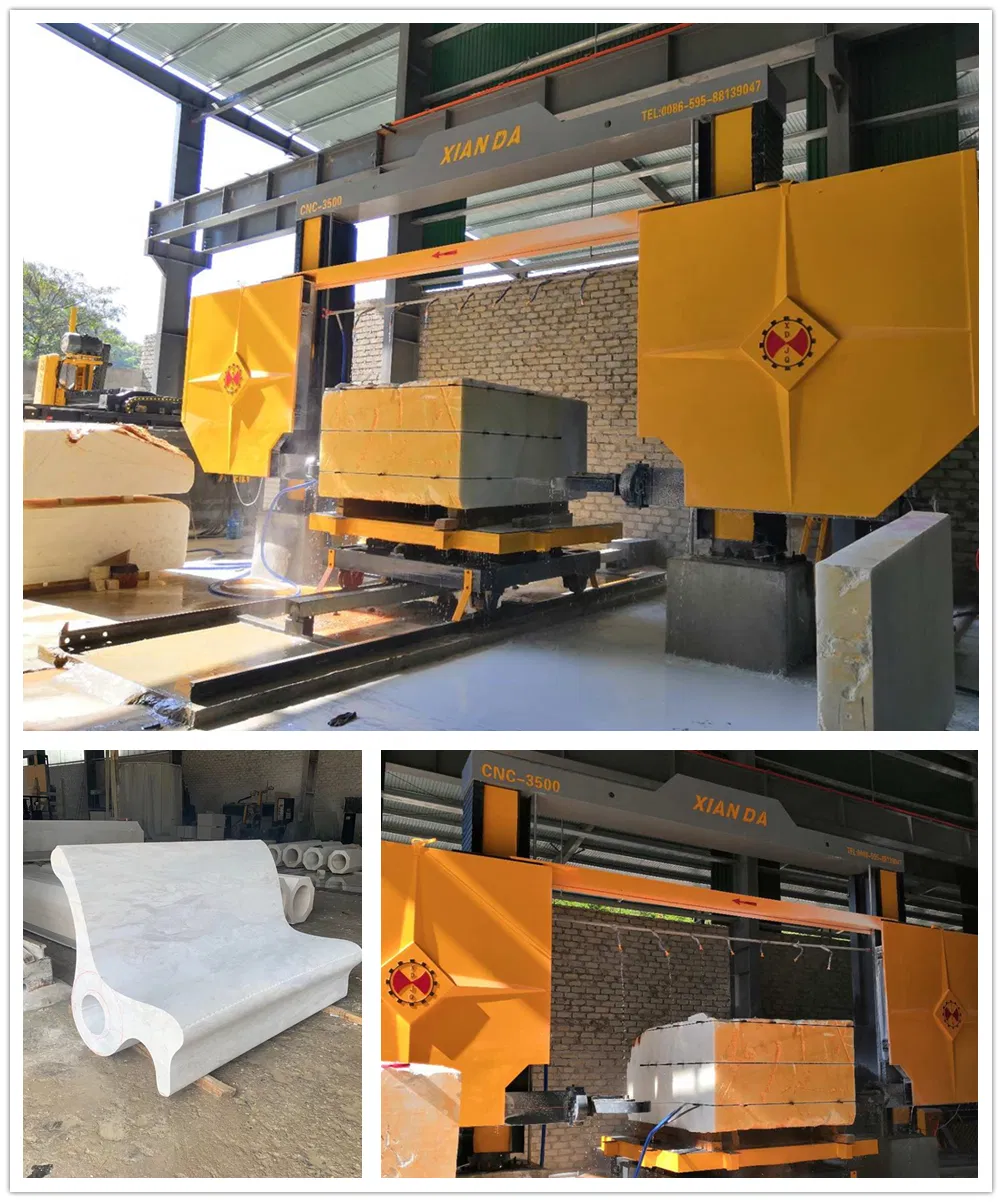

CNC- 3500 adopts CNC system, four linkage, use 16 surfaces slideway, 28pcs rolling wheels structure. And synchronous lifting through intermediate drive, with 360 rotary trolley, cutting stable and with high efficiency, it can dress 4 surfaces.
Moreover, as it’s with CNC system, it can process the column slab, pillar, numeral, letter, Chinese characters and other
shapes for the stone.
CNC- 3500 adopts CNC system, four linkage, use 16 surfaces slideway, 28pcs rolling wheels structure. And synchronous lifting through intermediate drive, with 360 rotary trolley, cutting stable and with high efficiency, it can dress 4 surfaces.
Moreover, as it’s with CNC system, it can process the column slab, pillar, numeral, letter, Chinese characters and other
shapes for the stone.
Technical Parameter
| Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 | CNC-3500 |

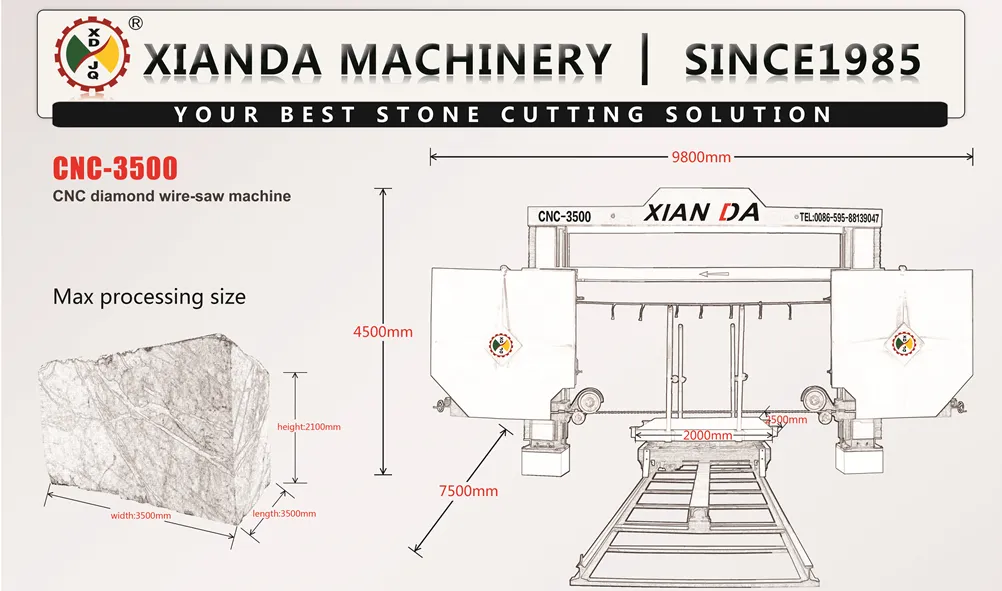

| Max Processing Size | mm | 2000*3000*1500 | 2500*3000*1500 | 3000*3000*1500 | 3500*3500*2100 |
| Trolley Size | mm | 1300*2500 | 1300*2500 | 1300*2500 | 2000*2500 |
| Wire Speed | m/s | 0~40 | |||
| Main Motor | kw | 11 | 11 | 11 | 15 |
| Outline Dimension | mm | 6800*6300*3800 | 7800*6300*3800 | 8800*6300*3800 | 9800*7500*4500 |
| Gross Weight | kg | 5500 | 5750 | 6000 | 10500 |
| Water Consumption | m3/h | 4 | 4 | 4 | 6 |
