Product Description

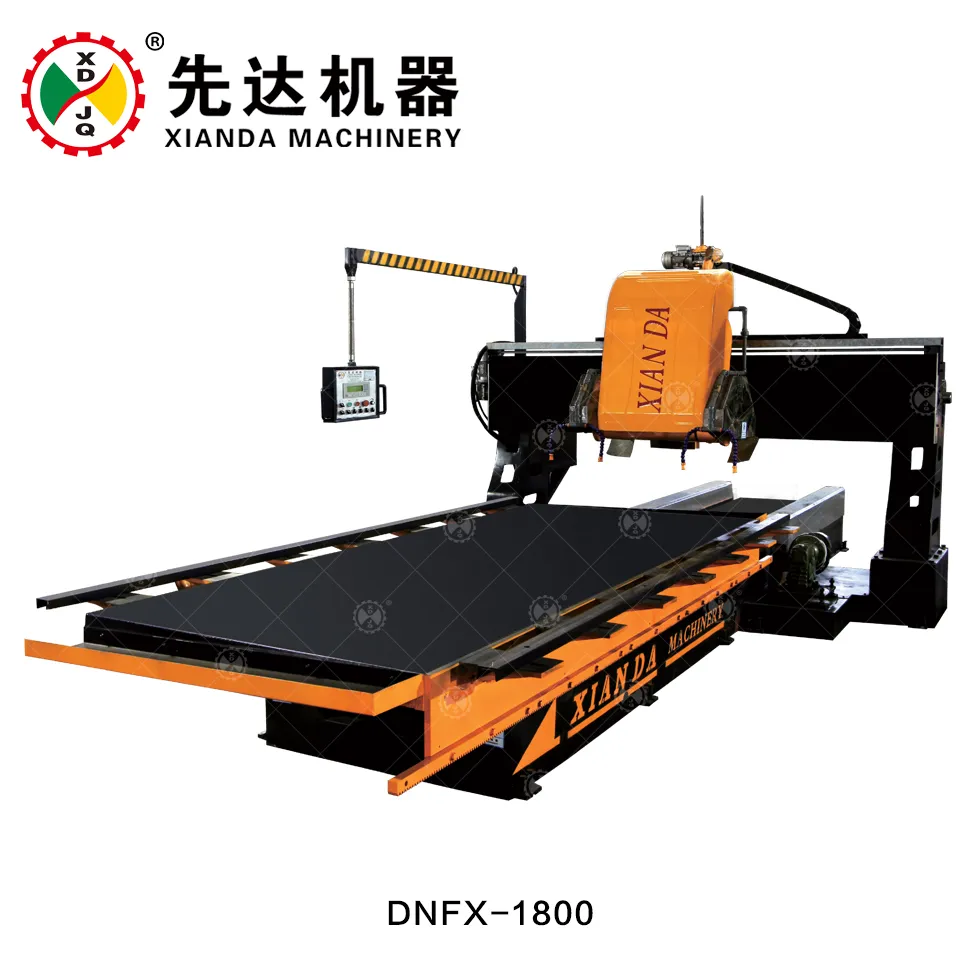

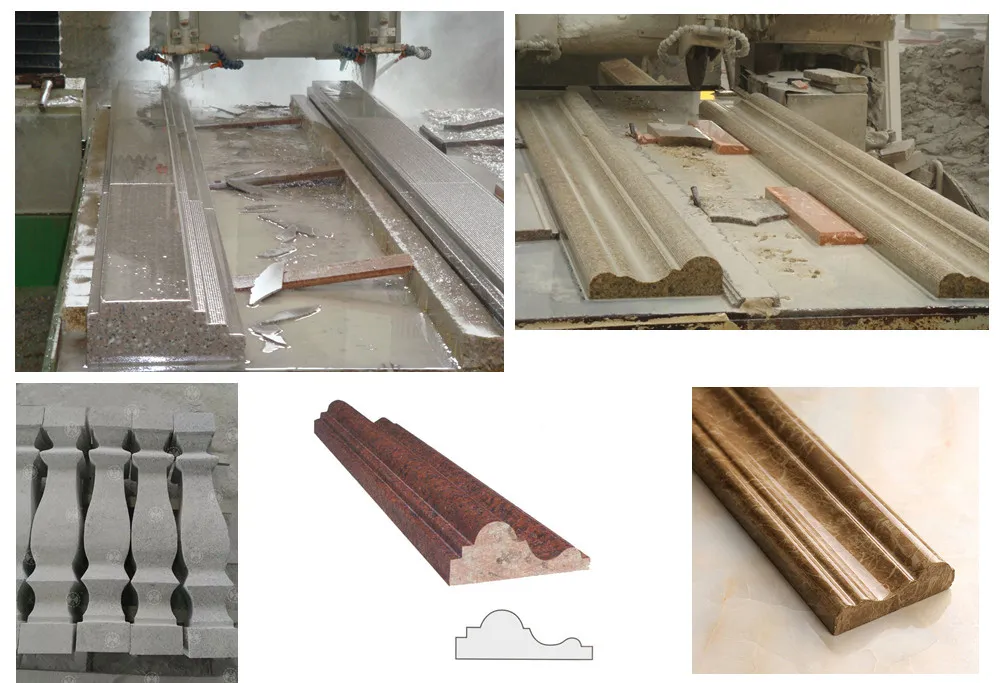

CNFX-1800/DNFX-1800 adopts CNC or PLC system.It automatically profiling through diamond circular saws to cut stone with program,uses inverter to control up-down rising and left-right feeding ,adjusts the speed according to the stone material.This machine adopts CNC system, higher degree of automation, higher precision cutting; using double-blades designing,with higher cutting efficiency,higher stability, easy-operation to suit for lines,arc-shaped lines,Roman columns etc.
Remark: If choosing rotating worktable,the processing of arc-shaped lines can be done.
Technical Parameter
| Parameter | Unit | DNFX-1800 | CNFX-1800 |
| Blade diameter | mm | 400-600 | 400-600 |
| Max lifting travel of cutting frame | mm | 250 | 250 |
| Worktable dimension | mm | 3500*1800 | 3500*1800 |
| Main motor | kw | 15 | 15 |
| Gross motor | kw | 17.5 | 17.5 |
| Outline dimension | mm | 6000*3600*2500 | 6000*3600*2500 |
| Gross weight | kg | 6000 | 6000 |
| Water consumption | m3/h | 6 | 6 |

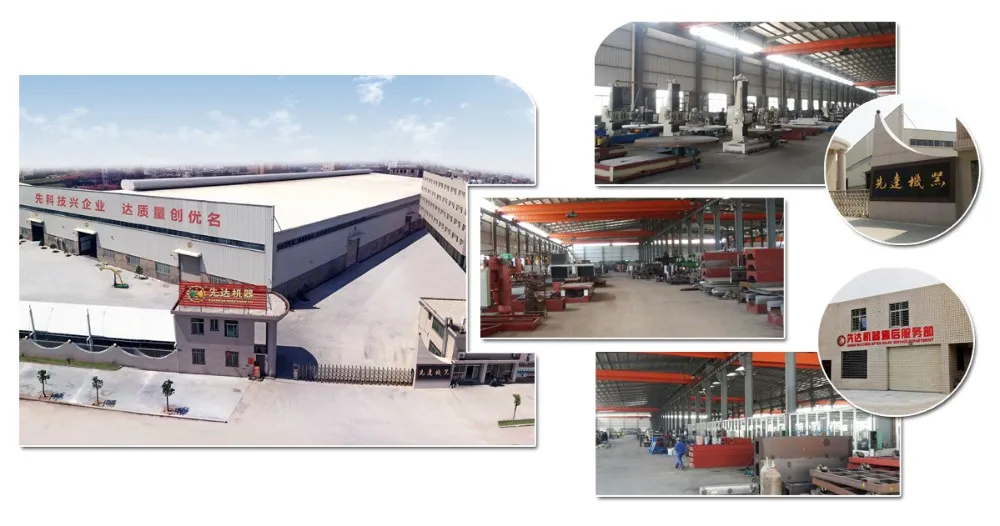

Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
