Marble Granite CNC STONE CARVING MACHINE

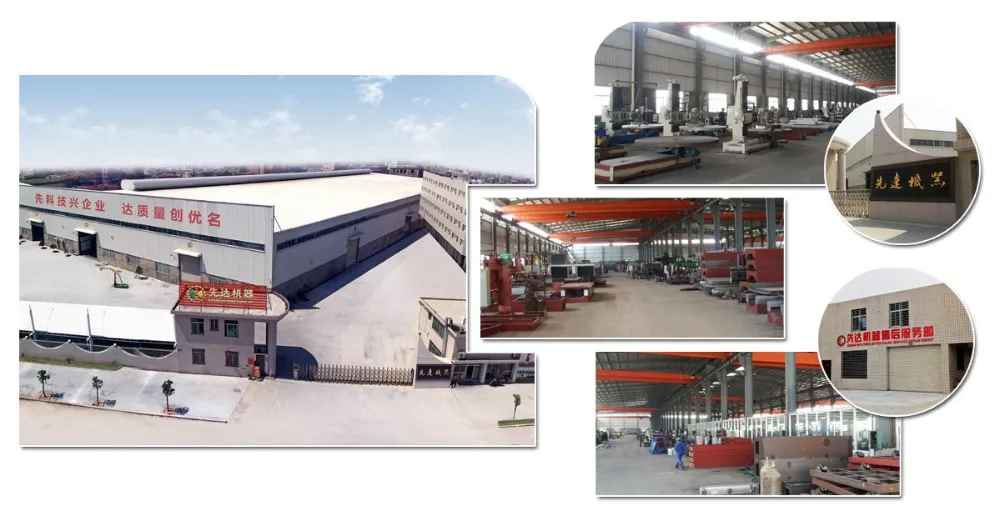

Fujian Jinjiang XianDa Machinery Co.Ltd was established in 1985 and covers an area of 20,000 square meters.We are dedicated to the development and production of series of column making machine,wire saw stone cutting machine,block trimming machine,Infrared bridge saw,profiling stone machine.
With rapid development,we have attained ISO9001 standard,CE,and won many honorary titles, including international Gold Plant Quality Award,China construction recommend building materials production enterprises.etc.
Since its foundation in 1985,we keep ”Advanced Technology and High Quality” as our aim, moreover,our company dare innovate and develope,and invite the high quality engineers and own a group of strong team with modern technology.
Application

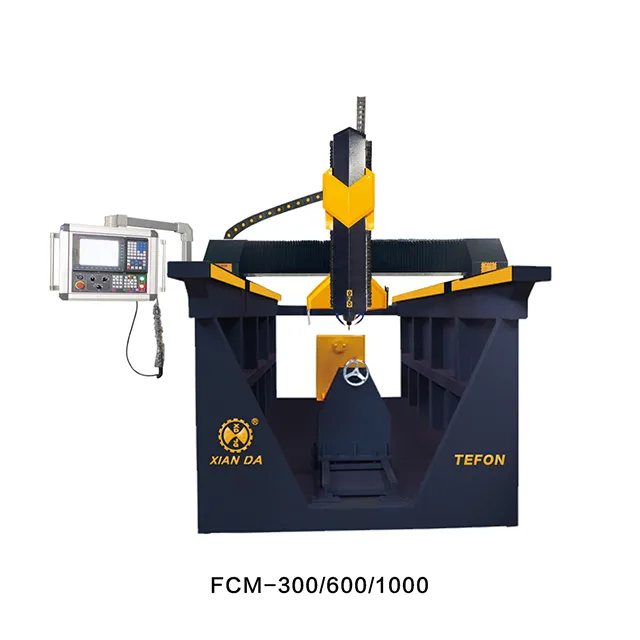

FCM-600
This machine adopts numerical control system, three -axis linage, doulbe row four-row slider, constant power spindle motor, two -way toll colling system, with stable running , high efficiency advantages,suitable for processing marble, granite, aluminum plate and other materials.
Technical Parameter
| Parameter | Unit | FCM-300 | FCM-600 | FCM-1000 |
| Max procesing diameter | mm | φ300 | φ600 | φ1000 |
| Max processing length | mm | 2500 | 3500 | 3500 |
| Number of spindles | pcs | 2 | 2 | 2 |
| sculpted spindle power | kw | 7.5 | 7.5 | 7.5 |
| Disc rounghing spindle power | kw | 7.5 | 7.5 | 7.5 |
| Outline dimension(L*W*H) | mm | 1800*4600*2150 | 2250*5800*2700 | 2800*5800*3600 |
| Water consumption | M3/h | 3 | 3 | 3 |
