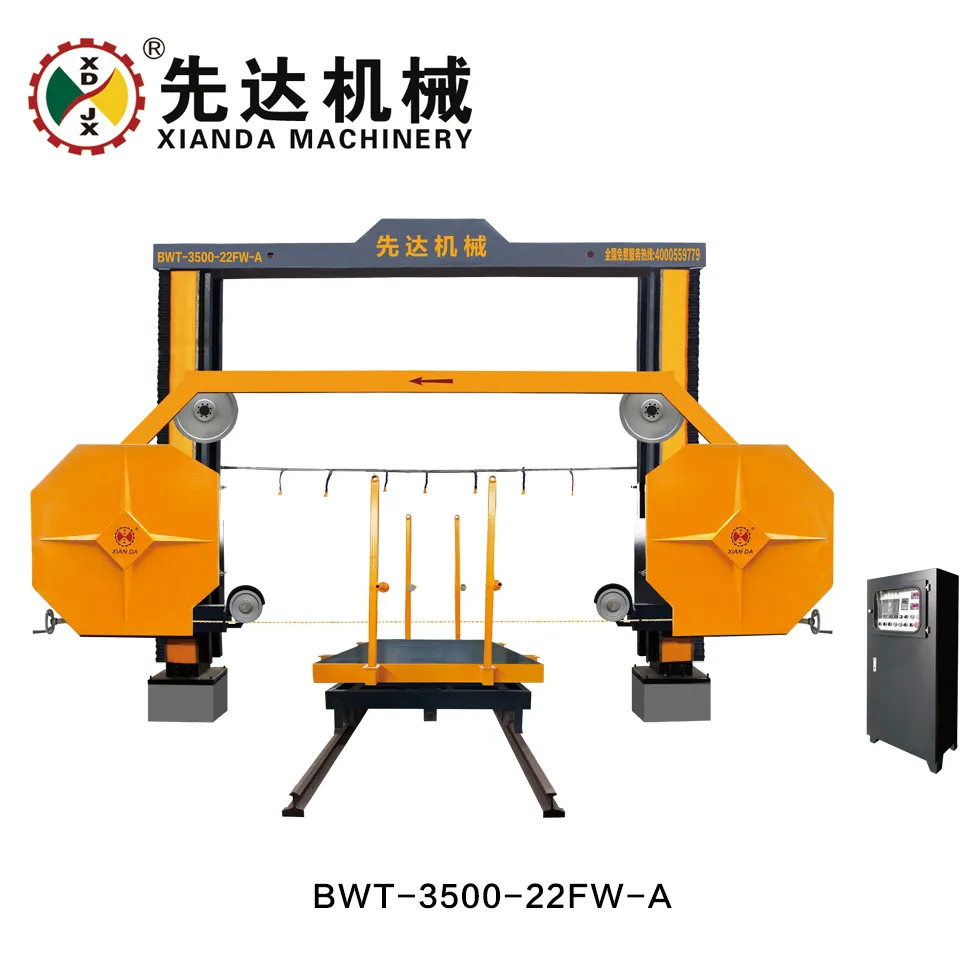

Multi-Function CNC Diamond Wire Stone Cutting Machine for Granite
Product Description

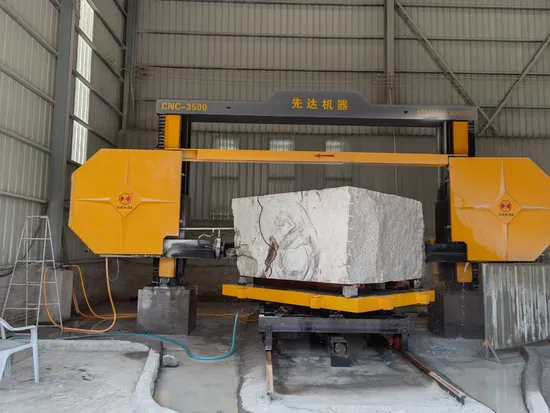

China Xianda marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Keywords: diamond wire saw machine, block cutting machine, stone trimming machine
Technical Parameter
| Parameter | Unit | CTS-3500-22FW |
| Max processing size | mm | 3500*3500*2200 |
| Dimension of worktable | mm | 2000*2500 |
| Main motor | kw | 15 |
| Outline dimension | mm | 8800*7800*5750 |
| Gross weight | kg | 10500 |
| Water consumption | m3/h | 4 |
