Product Description

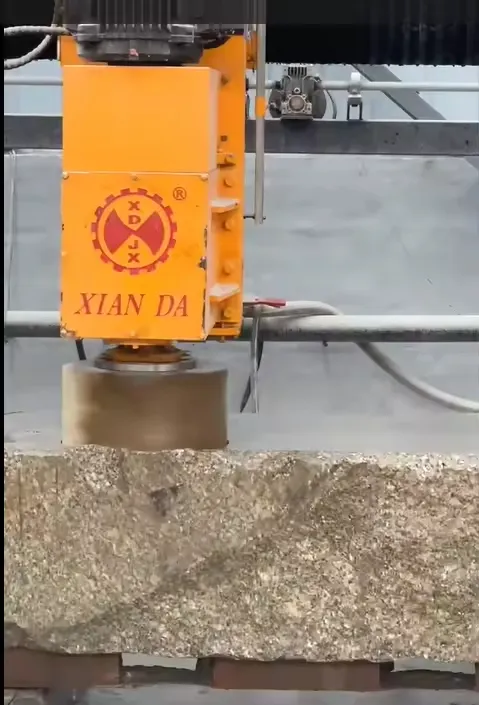

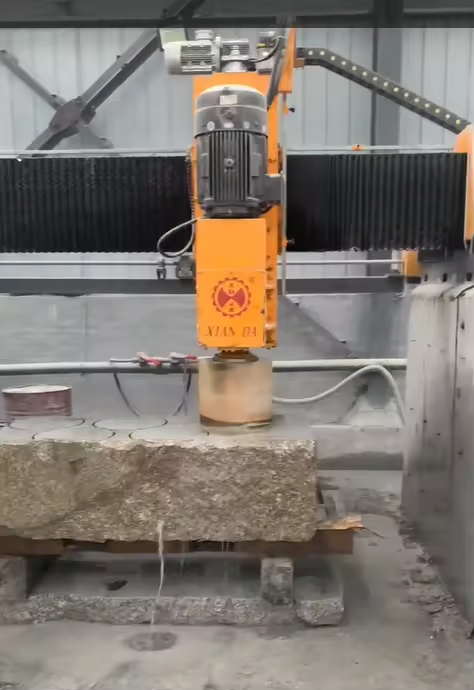

The machine adopts PLC control,three inverter,bridge structure,synchronous lifting and left-right walking,easy to operate,practical structure,and high efficiency.Dedicated to the processing of baluster,pillar,column base column caps,roadblock and other.
Advantage :
1.Bridge Type Stable Structure
High-strength steel bridge gantry frame + cast iron anti-vibration workbench, no deformation during high-speed drilling, ensuring stable operation and consistent drilling precision for long-term use.
2.Fully Automatic Intelligent Operation
Equipped with CNC numerical control system and automatic feeding/clamping device, realize one-key start of continuous drilling, no manual real-time operation, greatly improve processing efficiency by 40% compared with traditional driller.
3.High Precision Drilling
Drilling positioning precision controlled within ±0.05mm, uniform hole diameter without burrs, no secondary finishing needed, suitable for high-precision processing of industrial workpieces.
4.Multi-material & Multi-spec Adaptation
Widely applicable to metal, stone, steel plate, marble, concrete and other materials, customizable drilling diameter/depth/spindle speed, meet diverse industrial drilling needs of large/small workpieces.
5.Humanized & Safe Design
With overload protection, emergency stop button and dust-proof cover, avoid equipment damage and personal injury; anti-rust coating on the body, adapt to harsh industrial working environment, extend service life.
6.Efficient Energy Saving
High-power energy-saving motor, low noise and low power consumption during operation; hydraulic transmission system with stable power output, reduce energy loss and save production costs.
High-strength steel bridge gantry frame + cast iron anti-vibration workbench, no deformation during high-speed drilling, ensuring stable operation and consistent drilling precision for long-term use.
2.Fully Automatic Intelligent Operation
Equipped with CNC numerical control system and automatic feeding/clamping device, realize one-key start of continuous drilling, no manual real-time operation, greatly improve processing efficiency by 40% compared with traditional driller.
3.High Precision Drilling
Drilling positioning precision controlled within ±0.05mm, uniform hole diameter without burrs, no secondary finishing needed, suitable for high-precision processing of industrial workpieces.
4.Multi-material & Multi-spec Adaptation
Widely applicable to metal, stone, steel plate, marble, concrete and other materials, customizable drilling diameter/depth/spindle speed, meet diverse industrial drilling needs of large/small workpieces.
5.Humanized & Safe Design
With overload protection, emergency stop button and dust-proof cover, avoid equipment damage and personal injury; anti-rust coating on the body, adapt to harsh industrial working environment, extend service life.
6.Efficient Energy Saving
High-power energy-saving motor, low noise and low power consumption during operation; hydraulic transmission system with stable power output, reduce energy loss and save production costs.
Specification
|
Technical Parameter
|
Unit
|

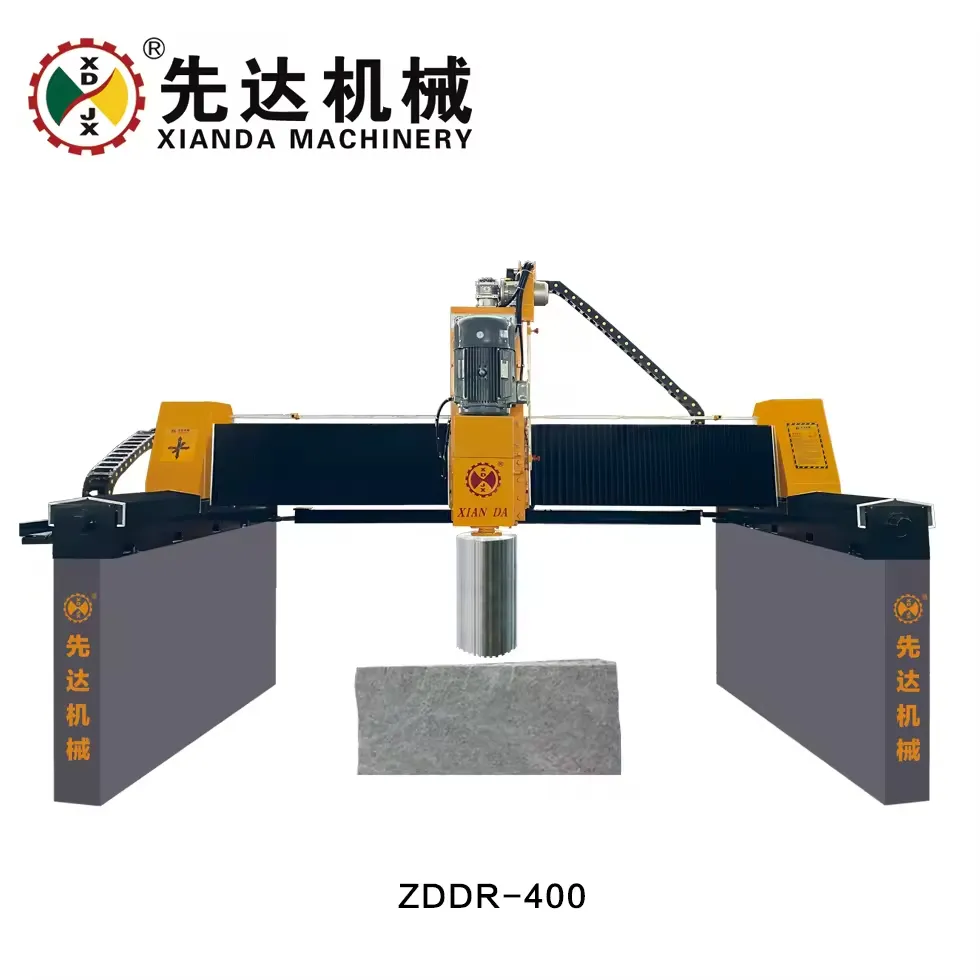

ZDDR-400
|
|
MAXIMUM DRILLING DIAMETER
|
mm
|
Φ400
|
|
X LEFT AND RIGHT TRAVEL
|
mm
|
2500
|
|
Y AXIS FRONT AND BACK TRAVEL
|
mm
|
1500
|
|
Z AXIS LIFTING TRAVEL
|
mm
|
750
|
|
MAIN MOTOR POWER
|
kw
|
15KW-6P(Permanetn magnet motor)
|
|
DRILL BARREL SPEED ADJUSTMENT FUNCTION
|
/
|
Includes
|
|
TOTAL POWER
|
kw
|
18
|
|
TOTAL WEIGHT
|
kg
|
≈3000
|
|
WATER CONSUMPTION
|
m³/h
|
≈3
|
|
OUTLINE DIMENSIONS
|
mm
|
4500 x 3200 x3500(Height including concrete foundation)
|
