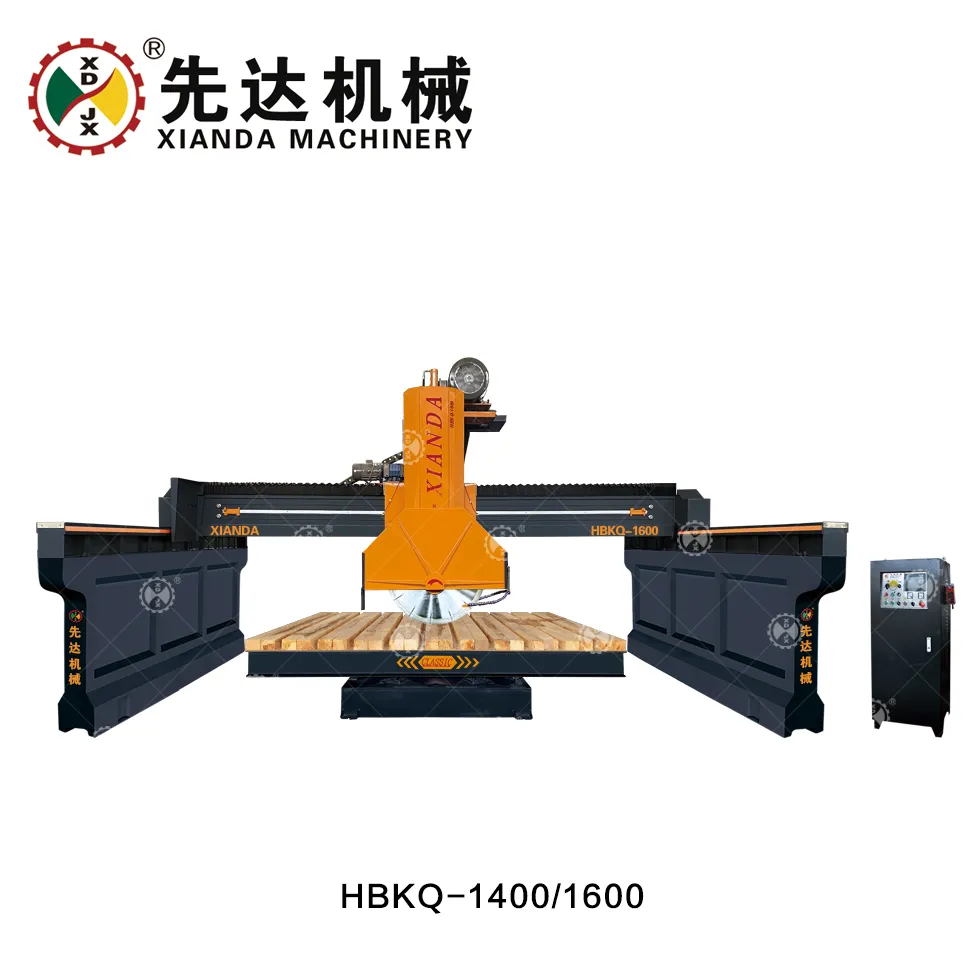

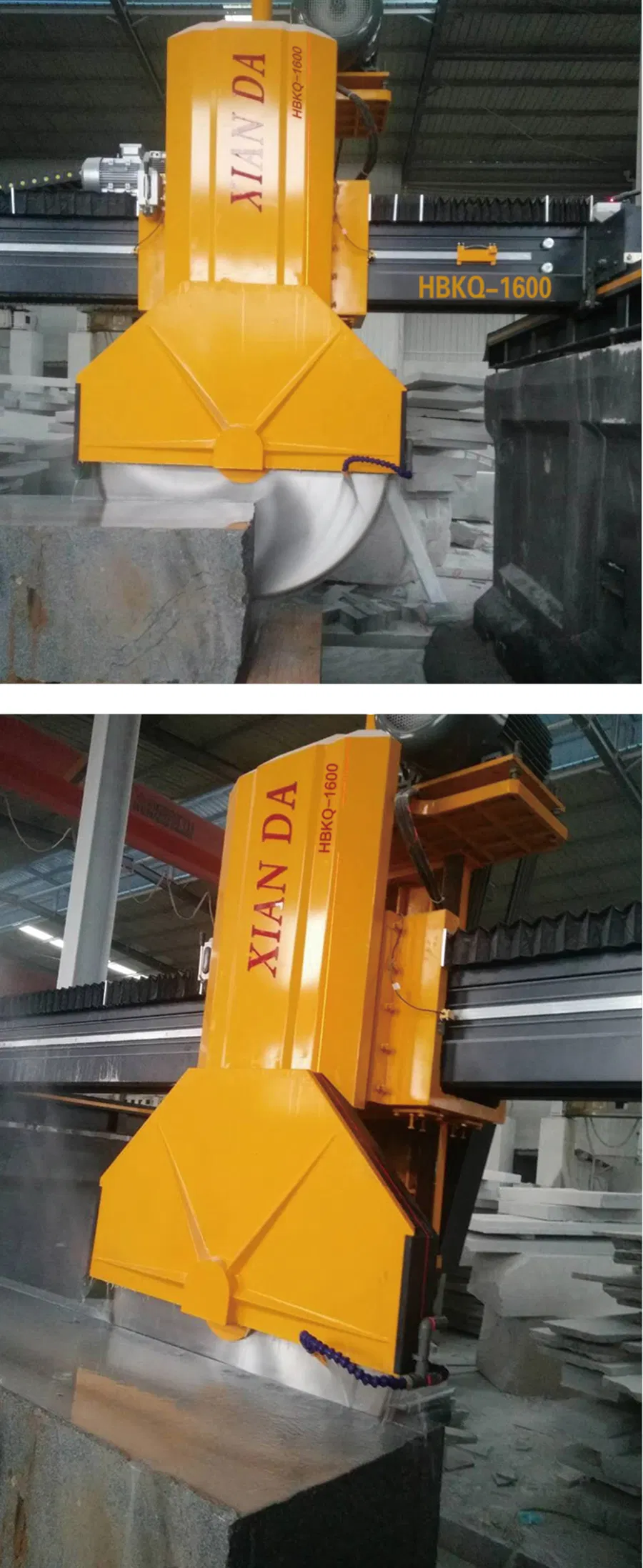

Heavy type middle block cutting machine cutting slab and curbstone
Product description
This machine adopt 4 guide rod , double hydraulic cylinder, heavier structure, with quick lifting , strong power and stable cutting, it is the best choice for cutting thick slab and curbstone .
Technical Parameter
| Parameter | Unit | HBKQ-1400 | HBKQ-1600 |
| Blade diameter | mm | 1000-1400 | 1300-1600 |
| Max lifting travel | mm | 850 | 850 |
| Trolley size | mm | 3000*2000 | 3000*2000 |
| Worktable rotation angle | ° | 0-90° | 0-90° |
| Outline dimension | mm | 6600*4800*4000 | 6600*4800*4200 |
| Main moter | kw | 30 | 30 |
| Gross power | kw | 37 | 37 |
| Goss weight | kg | 8500 | 8750 |
| Water consumption | m³/h | 4 | 4 |
Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
