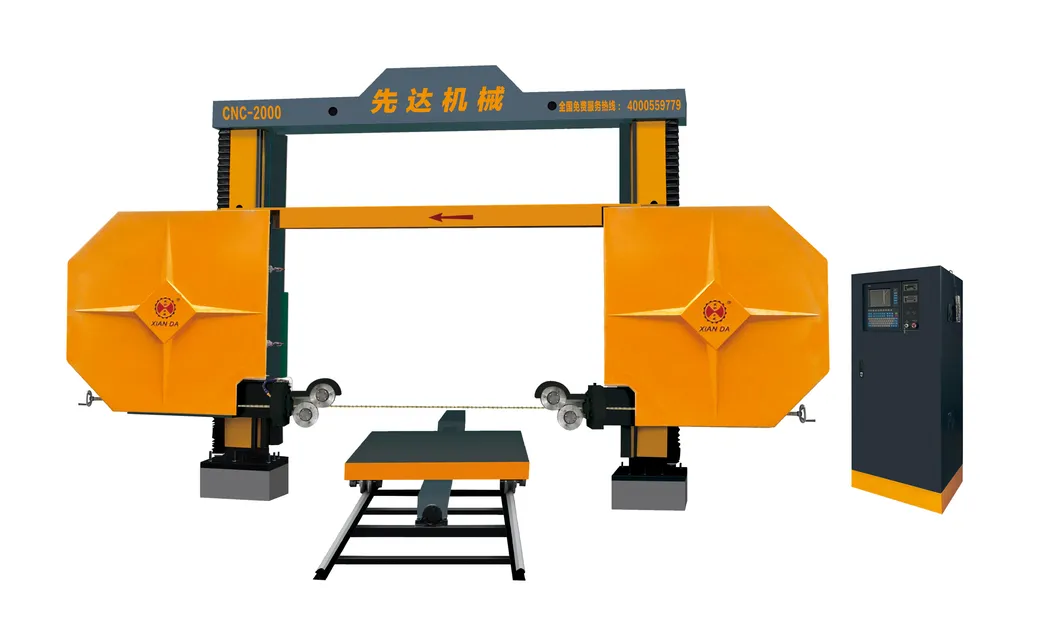

CNC Diamond wire saw machine

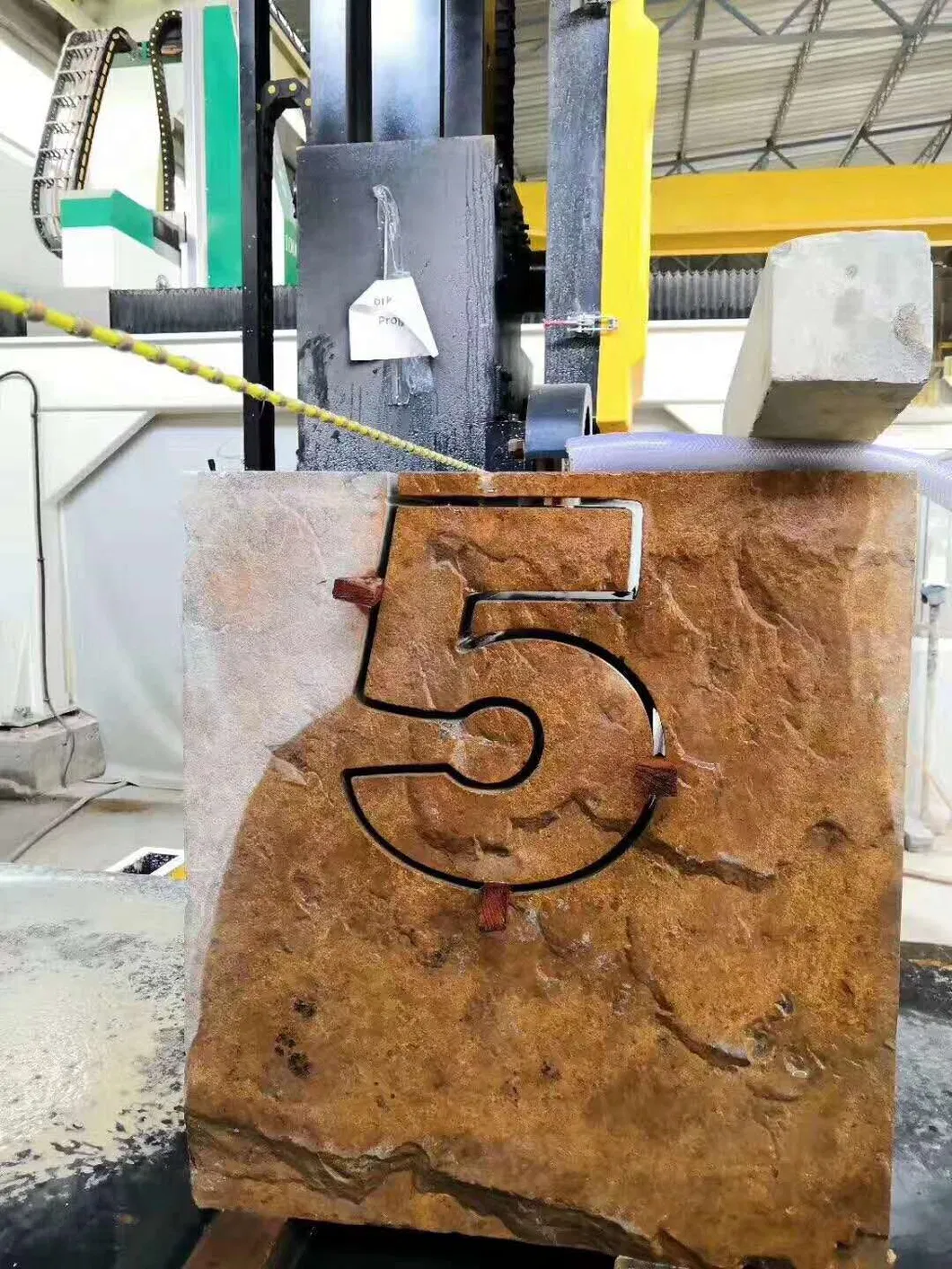

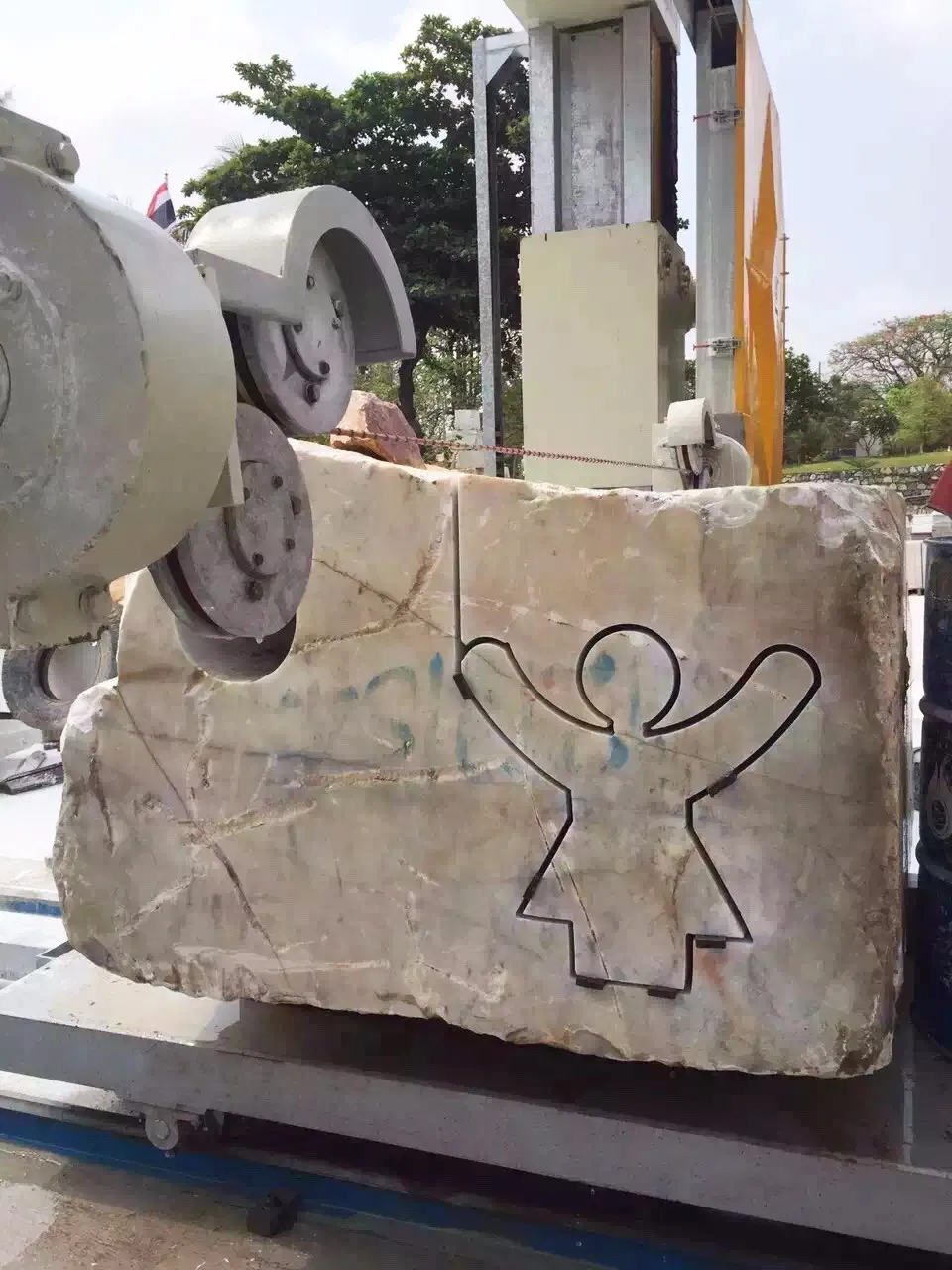

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

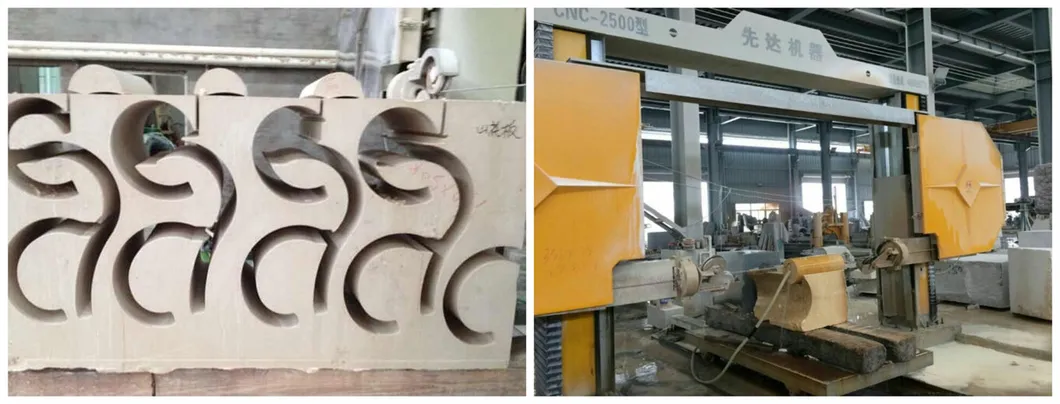

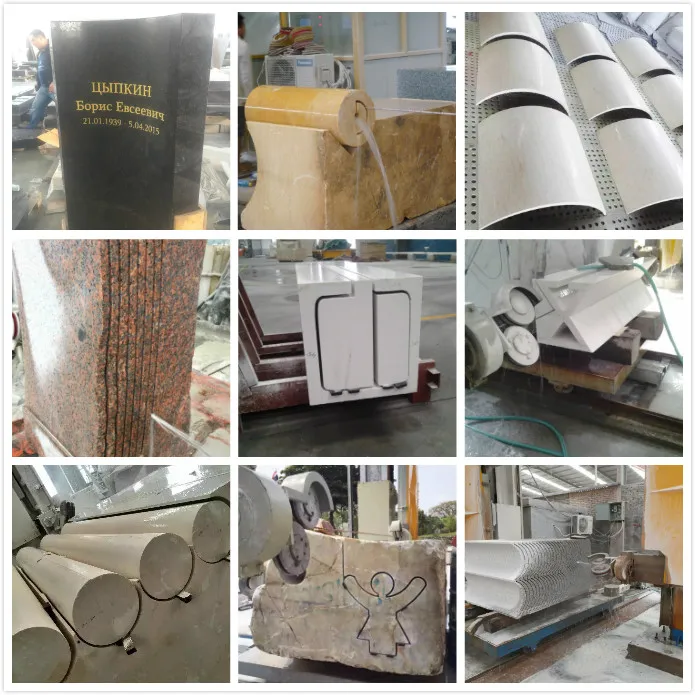

Detailed Photos
Product Parameters
| Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
| Max processing size | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
| Dimension of worktable | mm | 2500*1300 | 2500*1300 | 2500*1300 |
| Main motor | kw | 7.5 | 7.5 | 7.5 |
| Gross motor | kw | 11 | 11 | 11 |
| Outline dimension | mm | 6500*6300*3800 | 7000*6300*3800 | 7500*6300*3800 |
| Gross weight | kg | 5000 | 5500 | 6000 |
| Water consumption | m3/h | 4 | 4 | 4 |
Our Advantages
| Manufacturer Profiles | Quality Control |
| *We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. *We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting. |
*We have our own experienced QC. *Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
