Product Description

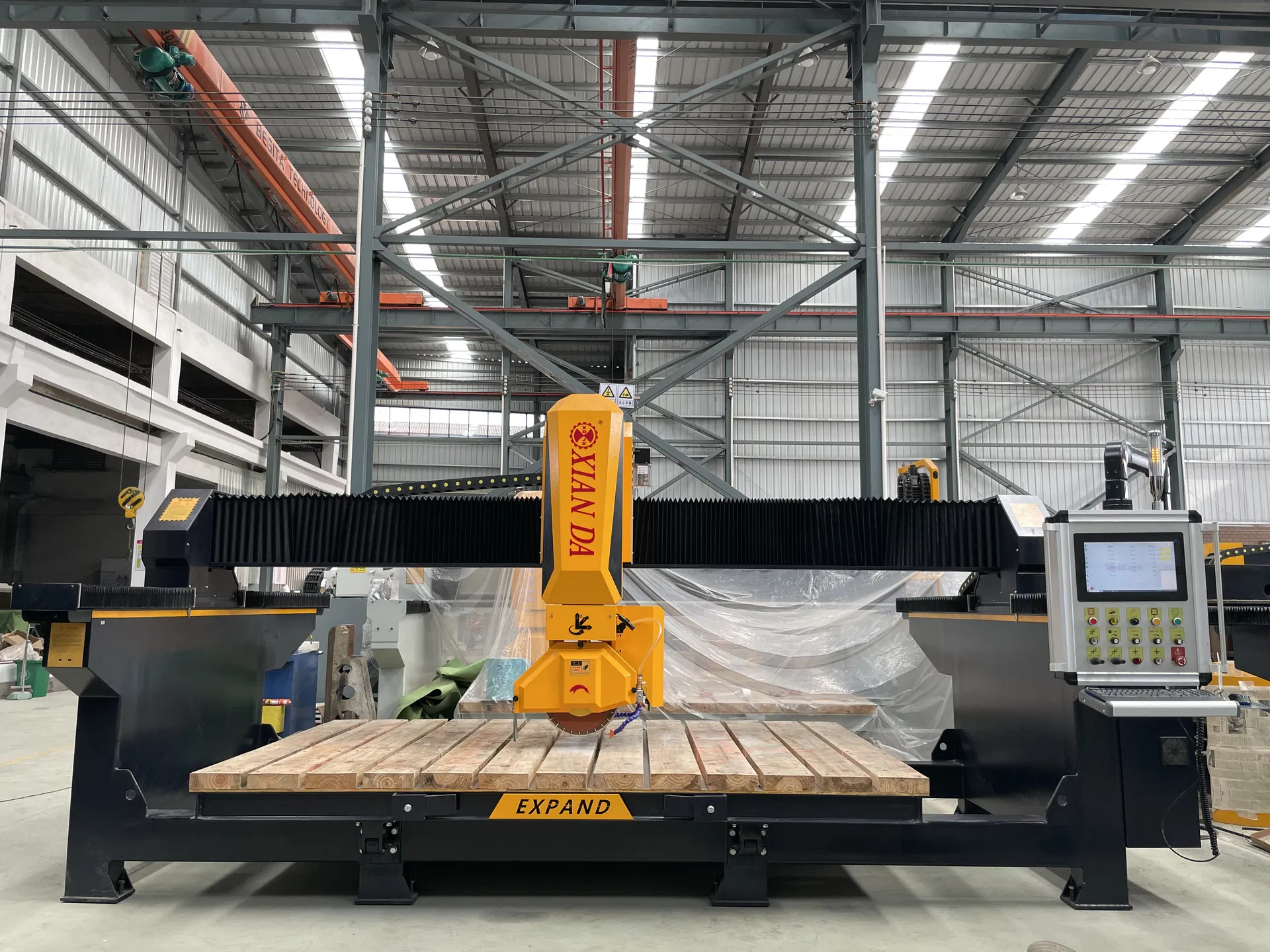

4 Axis bridge cutting machine adopts four-axis linkage CNC system control, bus absolute value servo (with power-off memory function), high-precision linear guide, rack drive, oil-immersed track structure , with multi-function, high precision and strong stability and other advantages.
Specification
|
Technical Parameter
|
Unit
|
Expand 450 MC (4+1)
|
|
Blade diameter range
|
mm
|
Φ350-Φ450
|
|
Max processing size
|
mm
|
3200×2000×100
|
|
Lifting stroke
|
mm
|
300
|
|
Worktable Size
|
mm
|
3200 x 2000
|
|
Table Tilting degree
|
°
|
0,85°
|
|
Head rotating degree
|
°
|
0~360°
|
|
Head tilting degree
|
°
|
0,45°
|
|
Main motor
|
kw
|
15(Permanent magnet motor)+5.5 kw
|
|
Water consumption
|
m³/h
|
≈2
|
|
Outline dimension
|
mm
|
5000 x 3100x 2700
|
