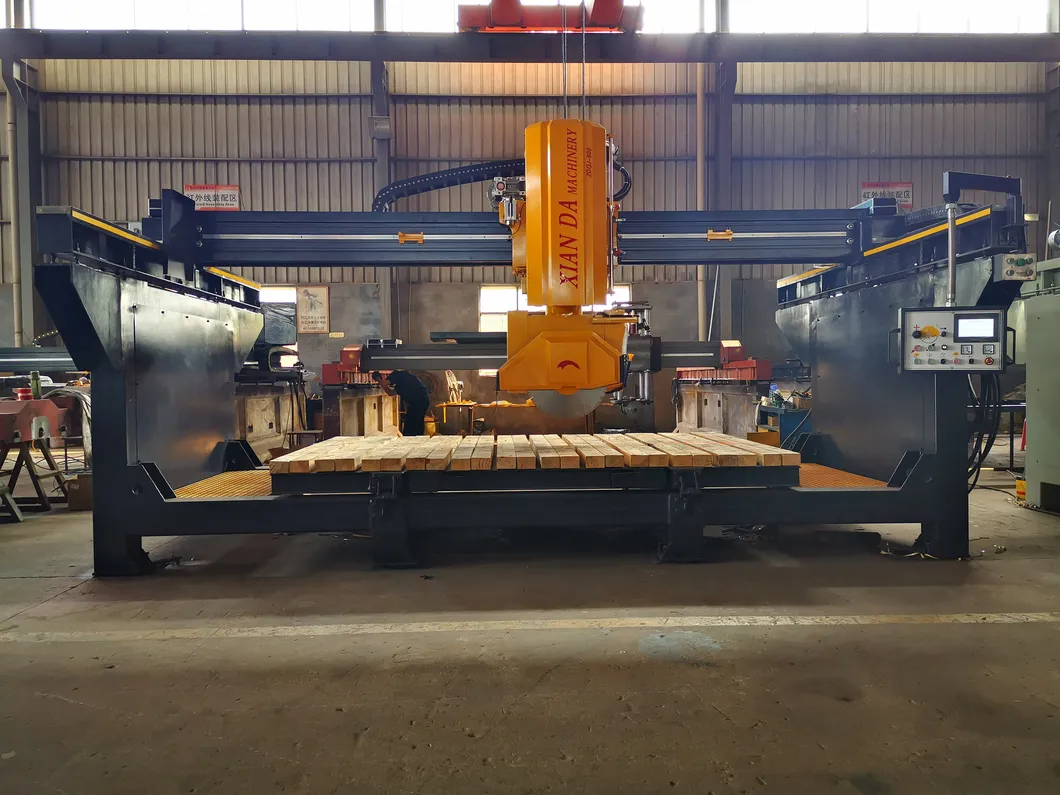

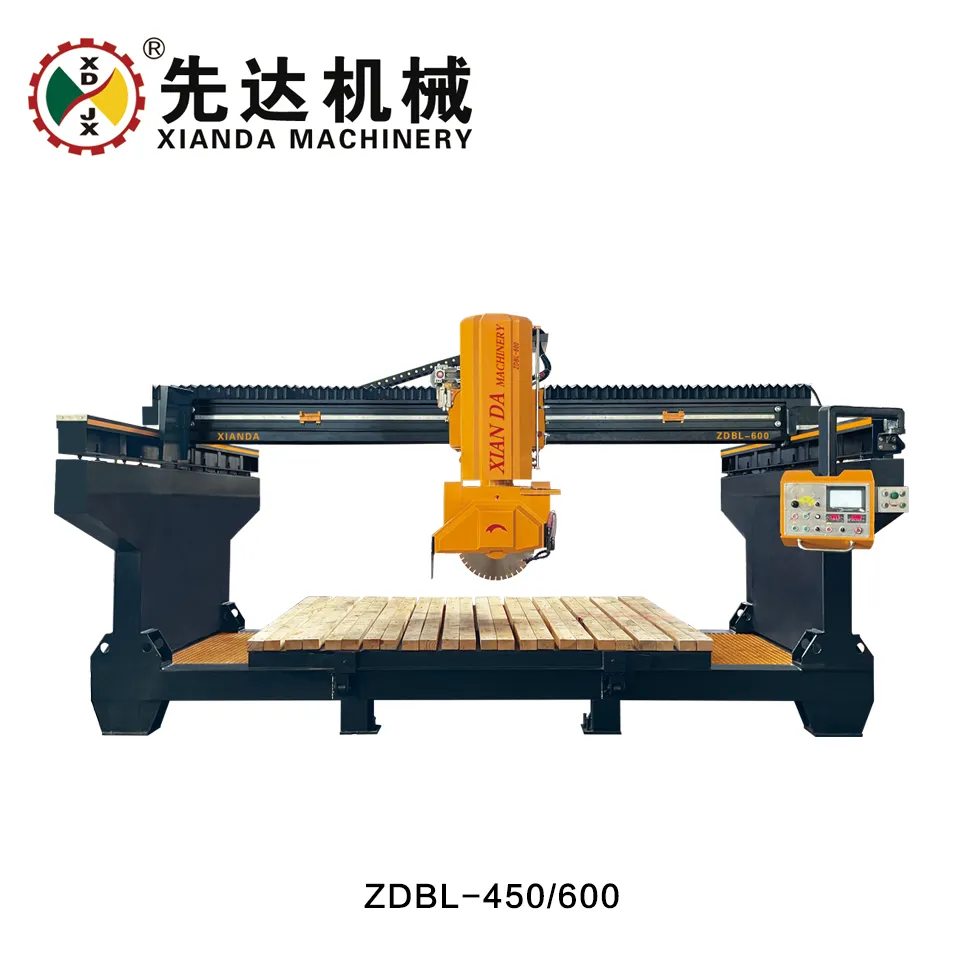

ZDBL-450/600 Integrated Bridge Cutting Machine
Product Description

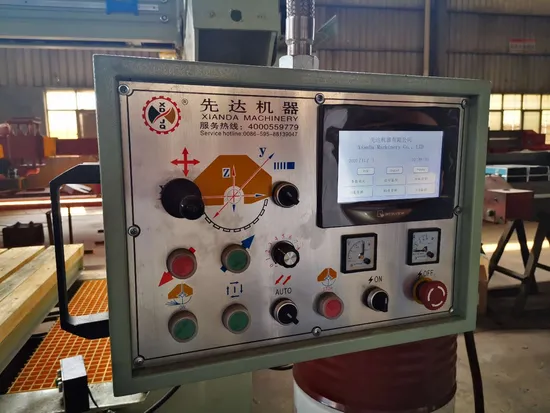

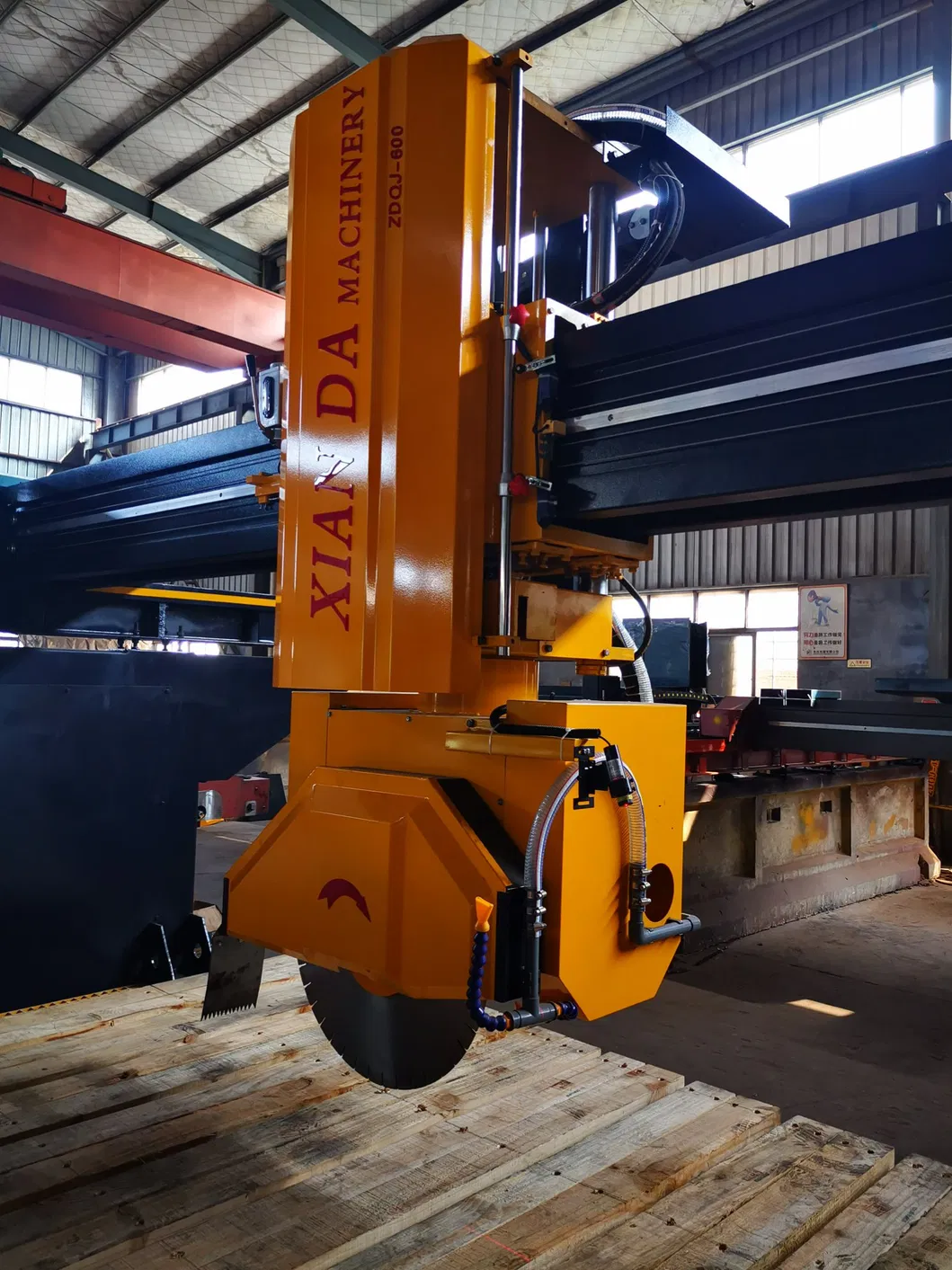

It adopts PLC system and human-machine intelligent operation interface. The main engine uses doub le hydraulic lifting combined with chrome guide sleeve, which is small clear nace and wearable and beautiful. The design of multi-layer seal in the guide sleeve is waterproff, dustproof and leakproof. The sidebeam adopts high precision linear slide track. The left -right foward-backward movement are all use encoder to control. with high precision megnetic railing ruler to detect, it can adjust the speed according to stone materials, theus the accuracy is higher. It uses the dedicated motor of stone machinery. the cutting head can rotate 0° and 90°, enhancing the processing speed. The blade can tilt 0°and 45°, enlarging the rangr of application. It is an integrated machine with compacted structure, easy operation and efficient cutting precision, which is the first chpice for processing and chamfering for high value granite and marble.
Product Parameters
| Parameter | Unit | ZDBL-450 | ZDBL-600 |
| Blade diameter range | mm | Φ350-Φ450 | Φ350-Φ600 |
| Max processing size | mm | 3200*2000*100 | 3200*2000*170 |
| worktable size | mm | 3200*2000 | 3200*2000 |

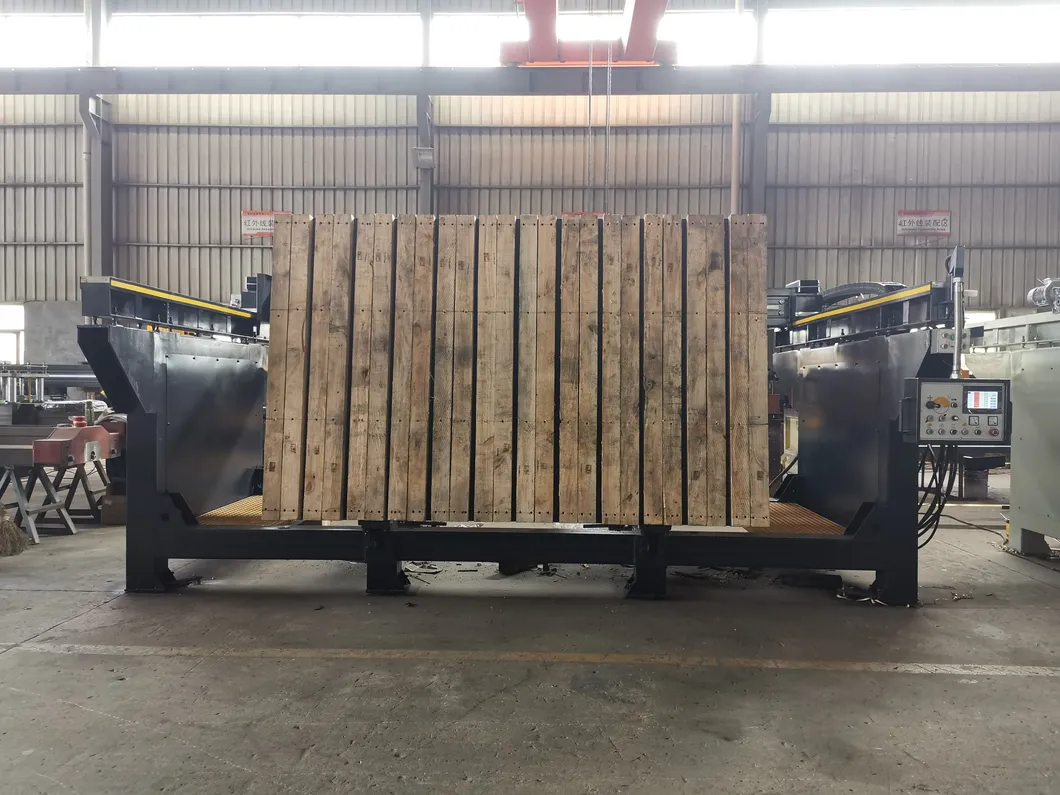

| Worktable tilting degree | ° | 0-85° | 0-85° |
| Blade rotation degree | ° | 0-90° | 0-90° |
| Blade tilting (optional) | ° | 0-45°(optional) | 0-45°(optional) |
| Main motor | kw | 15 permanent magnet motor | 15 permanent magnet motor |
| Gross motor | kw | 20.5 | 20.5 |
| Water consumption | m³/h | 3 | 3 |
| Outline dimension | mm | 6000*3600*2650 | 6000*3600*2950 |
| Gross weight | kg | 6500 | 7000 |

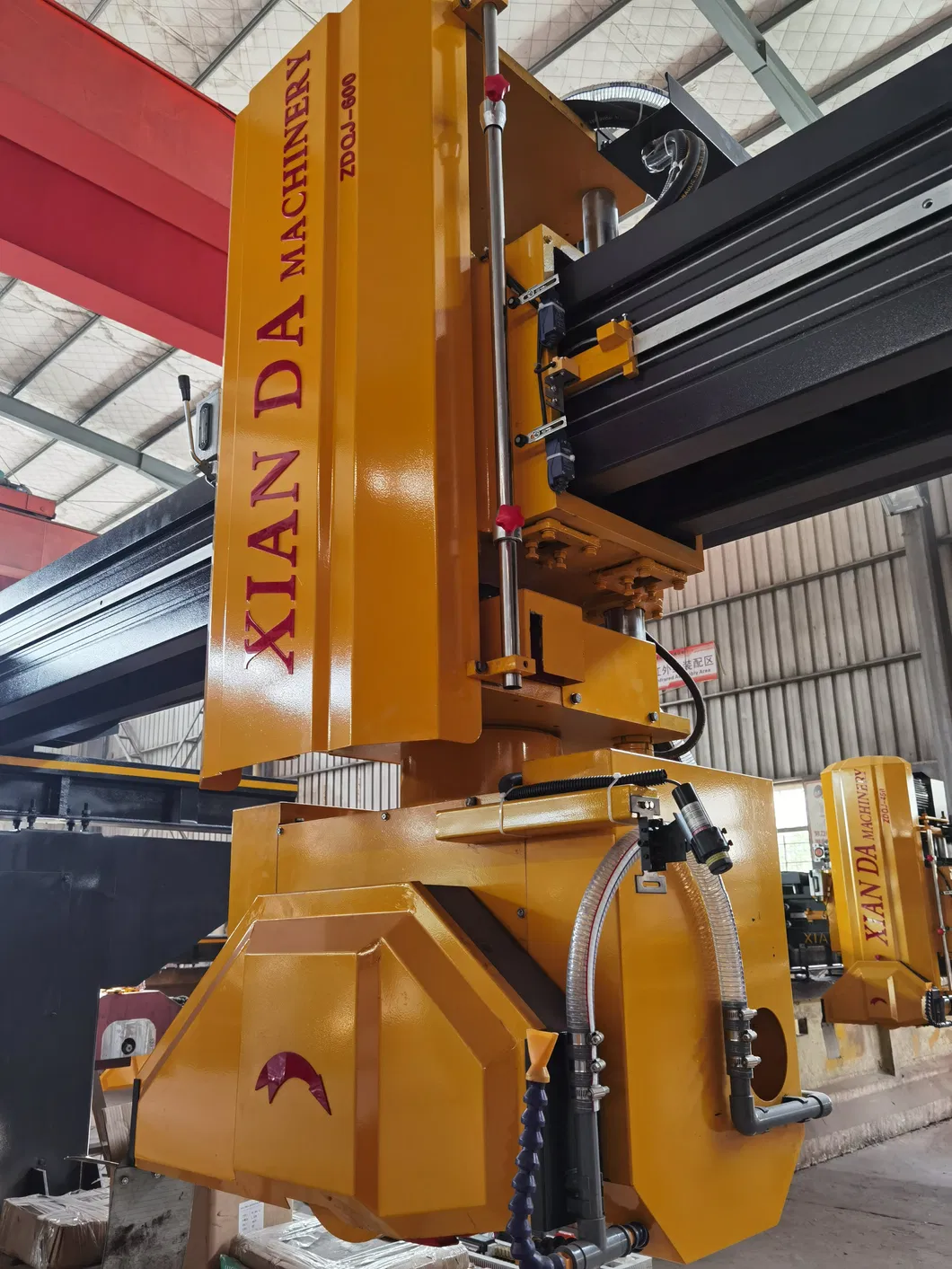

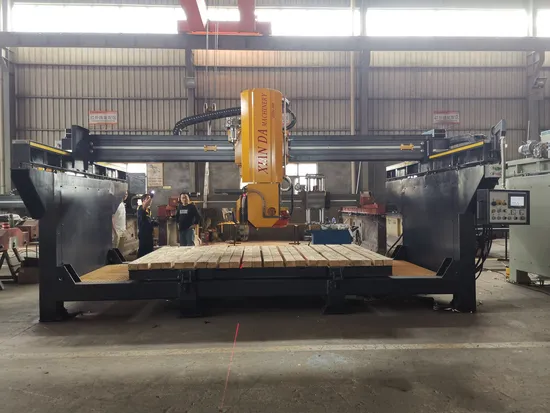

Detailed Photos

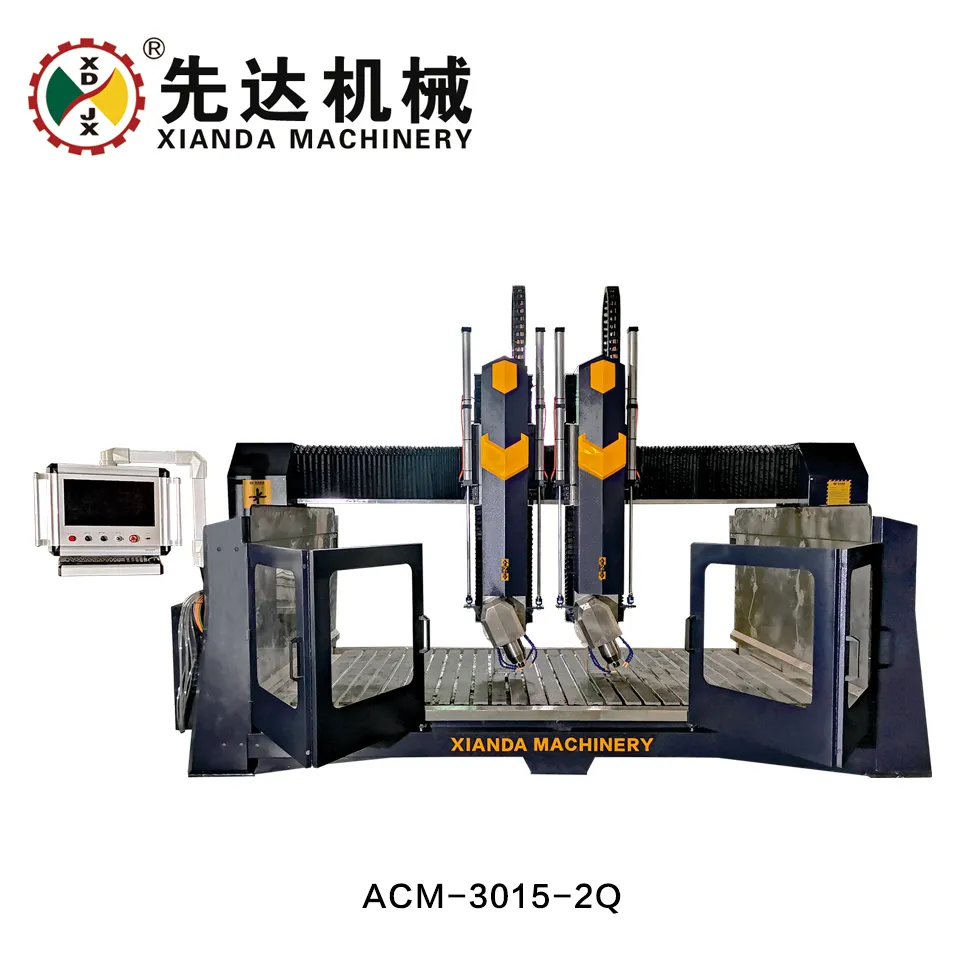

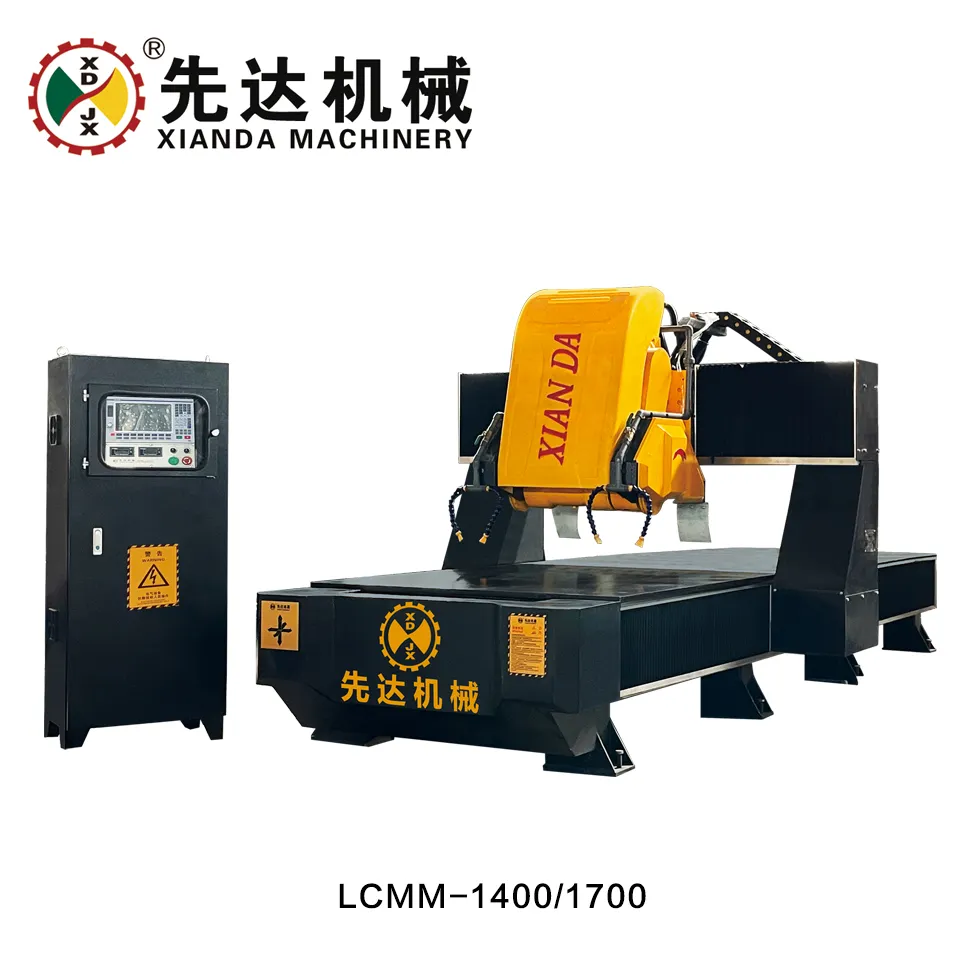

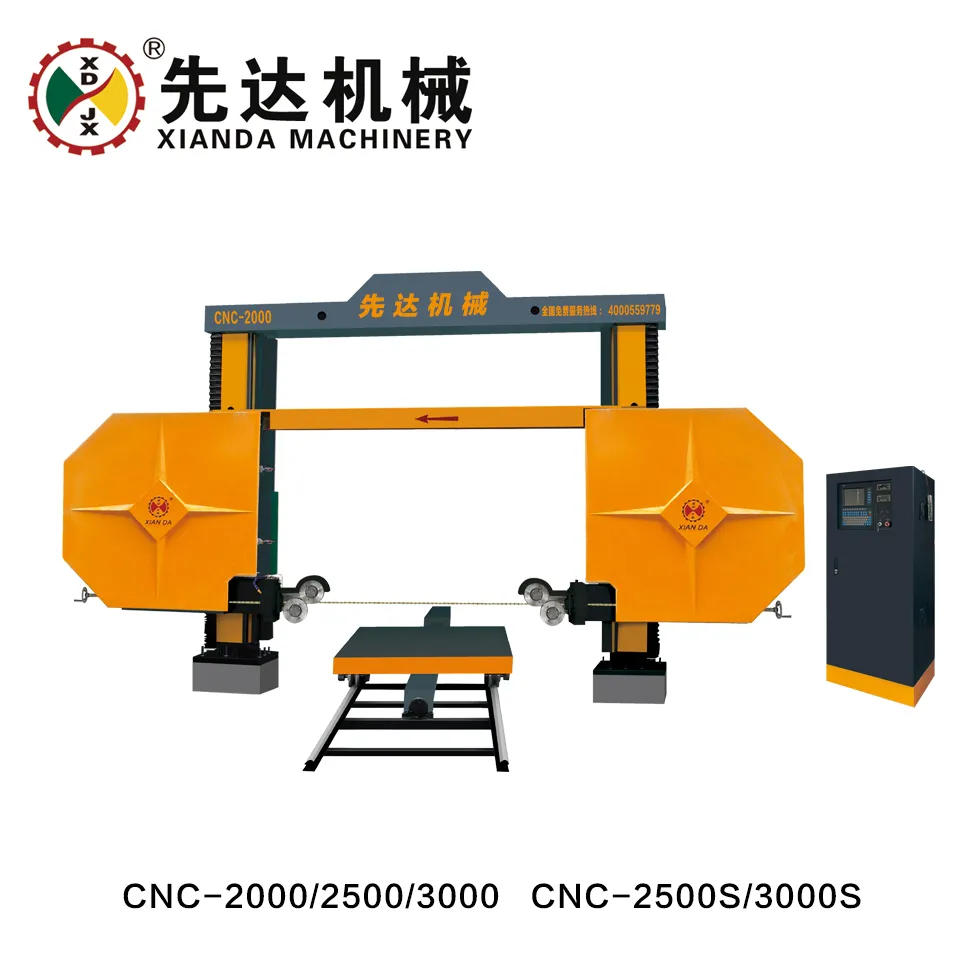

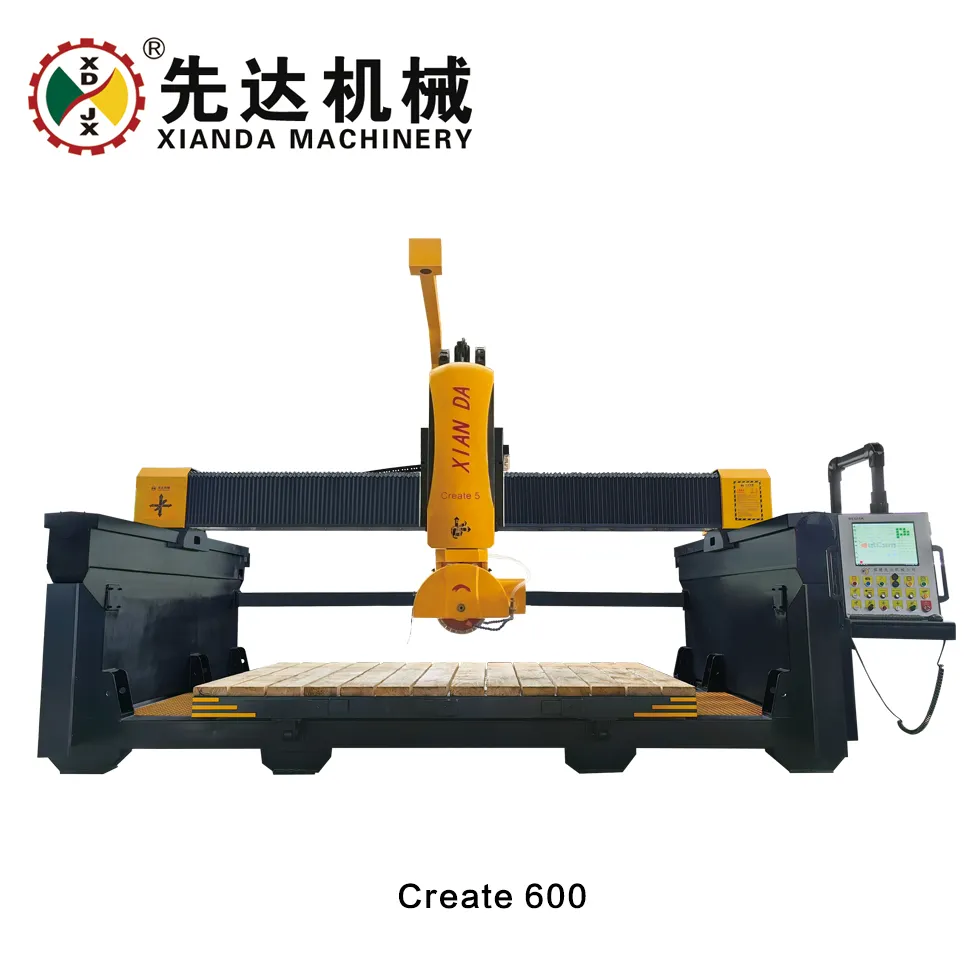

SIMILAR PRODUCT
