Product Description

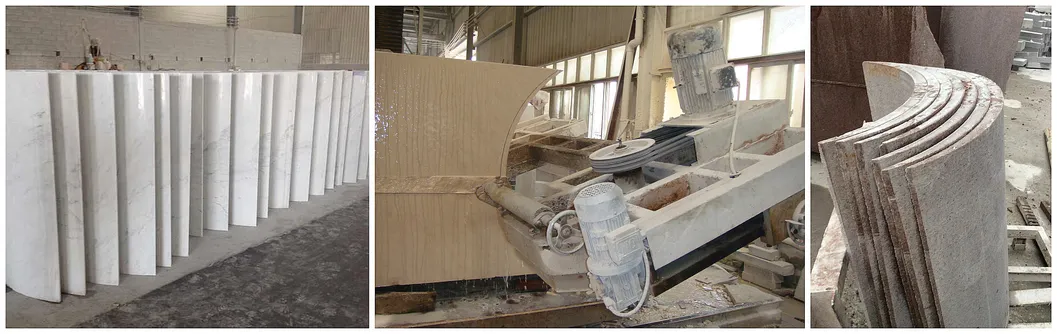

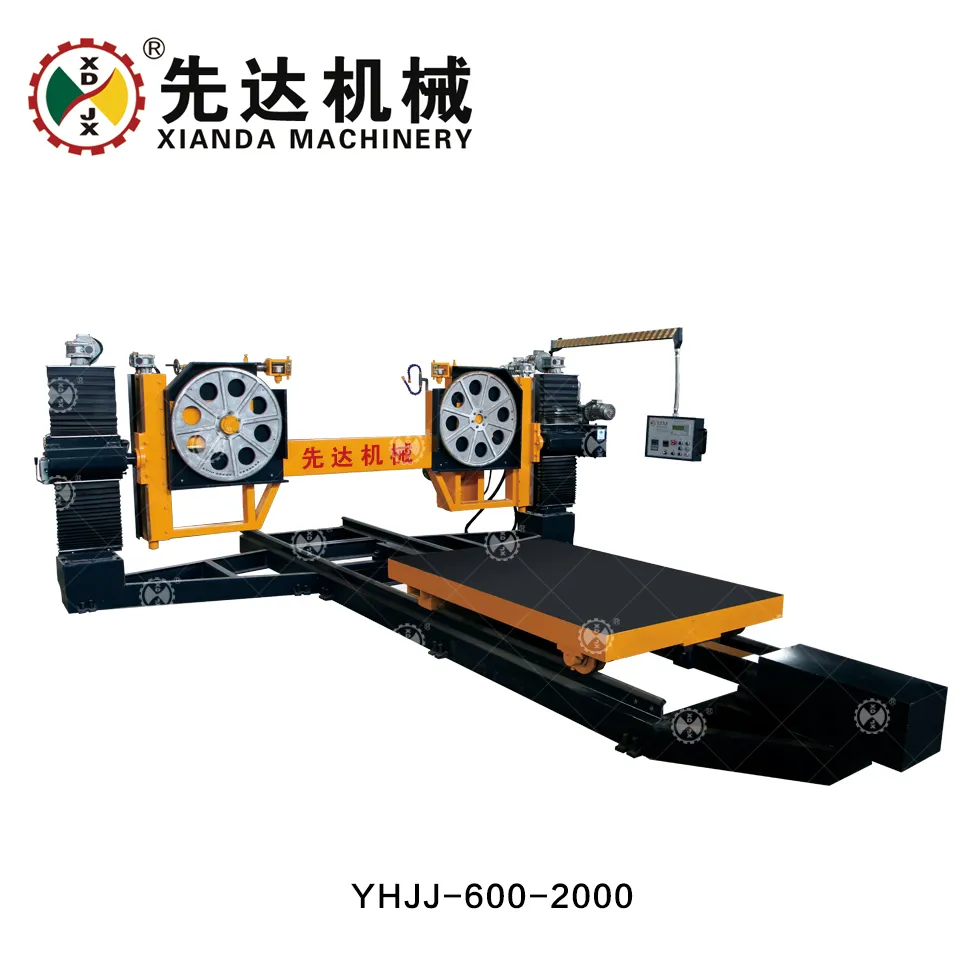

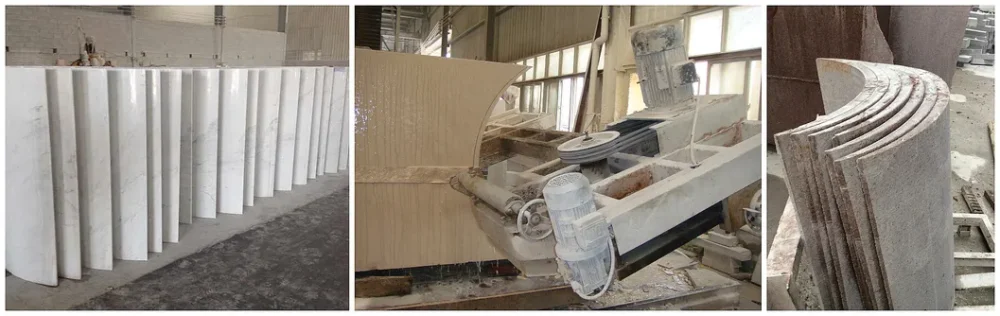

YHJJ-600-2000 granite stone machine&stone cutting machine&marble cutting machine adopts the latest structure design, the saw blade which operates around the central axis, slicing blocks is controled by the worktable automatic feeding. It has the featrues of lower energy consumption and small saw kerfs(3mm sawkerfs), saving blocks, simple operation, high precision and high efficiency. Maximum’s processing diameter range is 600 mm to 2000mm. It is recommended for processing the column slab at marble block.
Technical Parameter
|
Parameter
|
Unit
|
YHJJ-600-2000
|
|
Column of diameter
|
mm
|
600-2000
|
|
Max cutting width
|
mm
|
1300
|
|
Outline dimension
|
mm
|
6300*5150*2100
|
|
Main motor
|
kw
|
4
|
|
Gross motor
|
kw
|
9.5
|
|
Gross weight
|
kg
|
4500
|
|
Water consumption
|
m3/h
|
4
|
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
