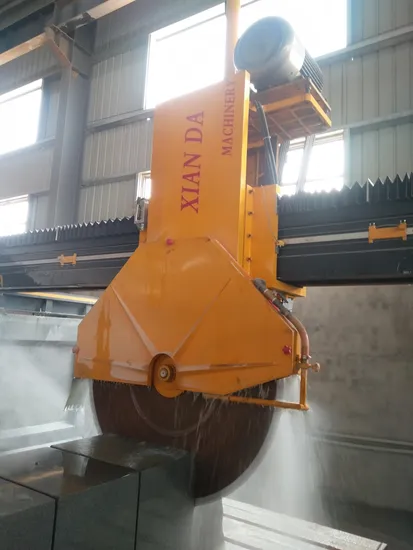

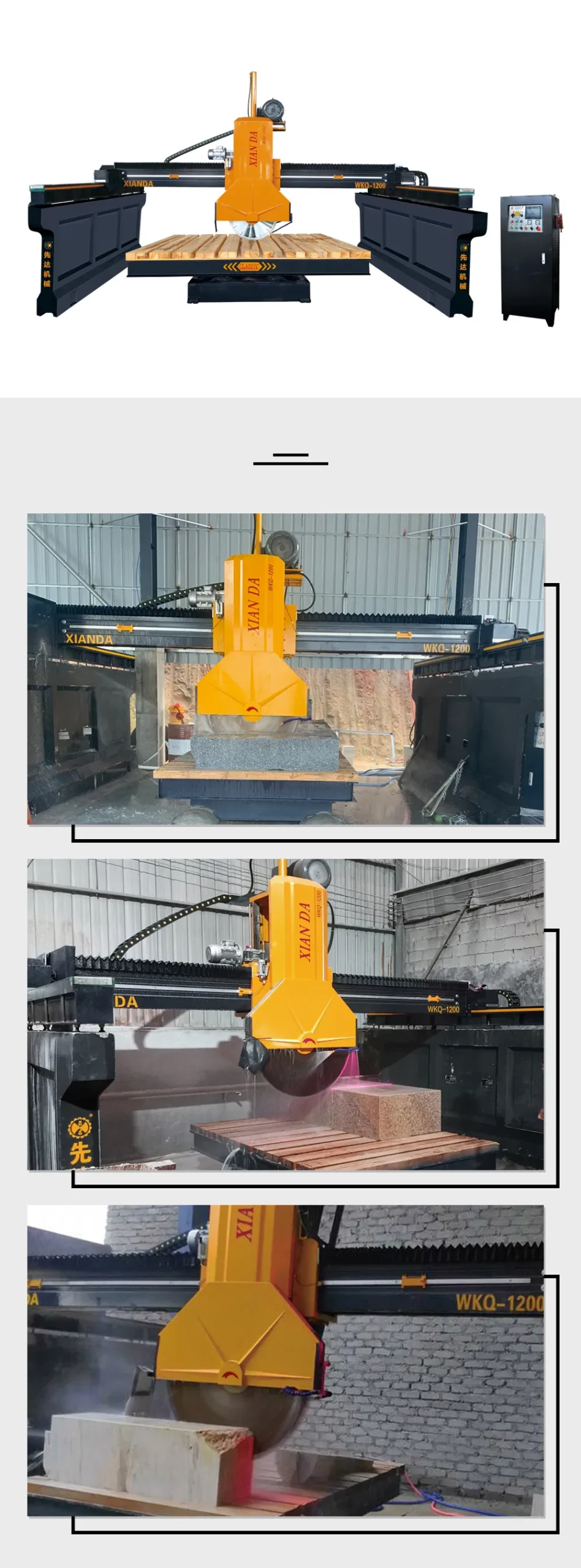

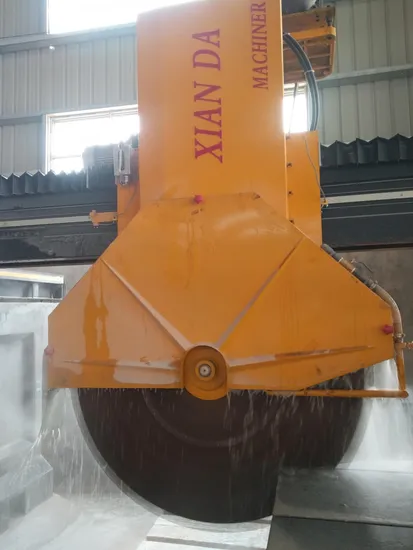

Middle block cutting machine cutting thick slabs and paving stones machine
Fujian Xianda WKQ-1200 , This machine is with single-cylinder sliding plate structure,it can adjust the wear space,lift up and down speed fast and stable.It’s suitable for cutting thick slabs, and paving stones.
Technical Parameter
|
Parameter
|
Unit
|
WKQ-1200
|
|
Max blade diameter
|
mm
|
1200
|
|
Max lifting travel
|
mm
|
760
|
|
Worktable size
|
mm
|
3000*2000
|
|
Worktable rotating degree
|
°
|
0-90°
|
|
Water consumption
|
m³/h
|
6
|
|
Main motor
|
kw
|
22
|
|
Gross motor
|
kw
|
28
|
|
Outline dimension
|
mm
|
6400*4800*4400
|
|
Gross weight
|
kg
|
6800
|

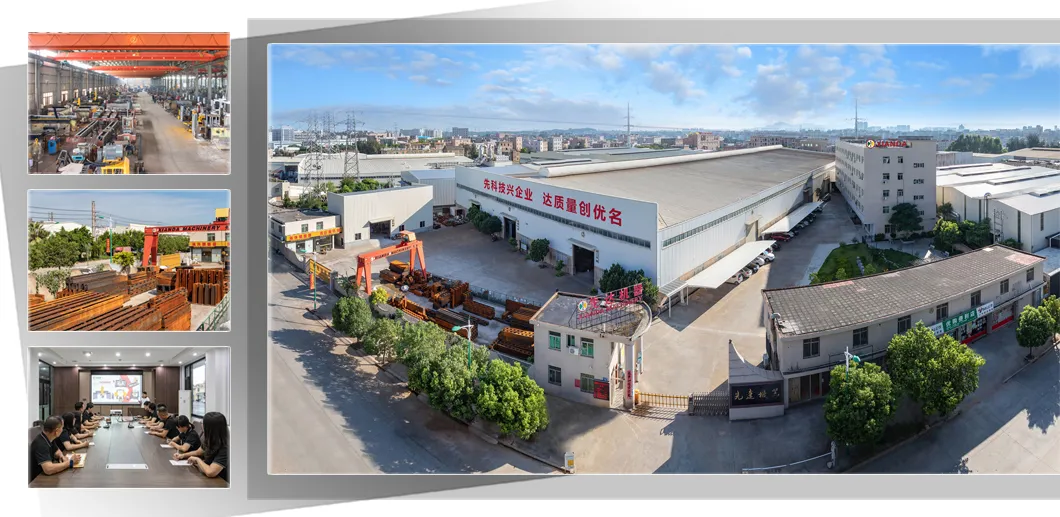

With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
