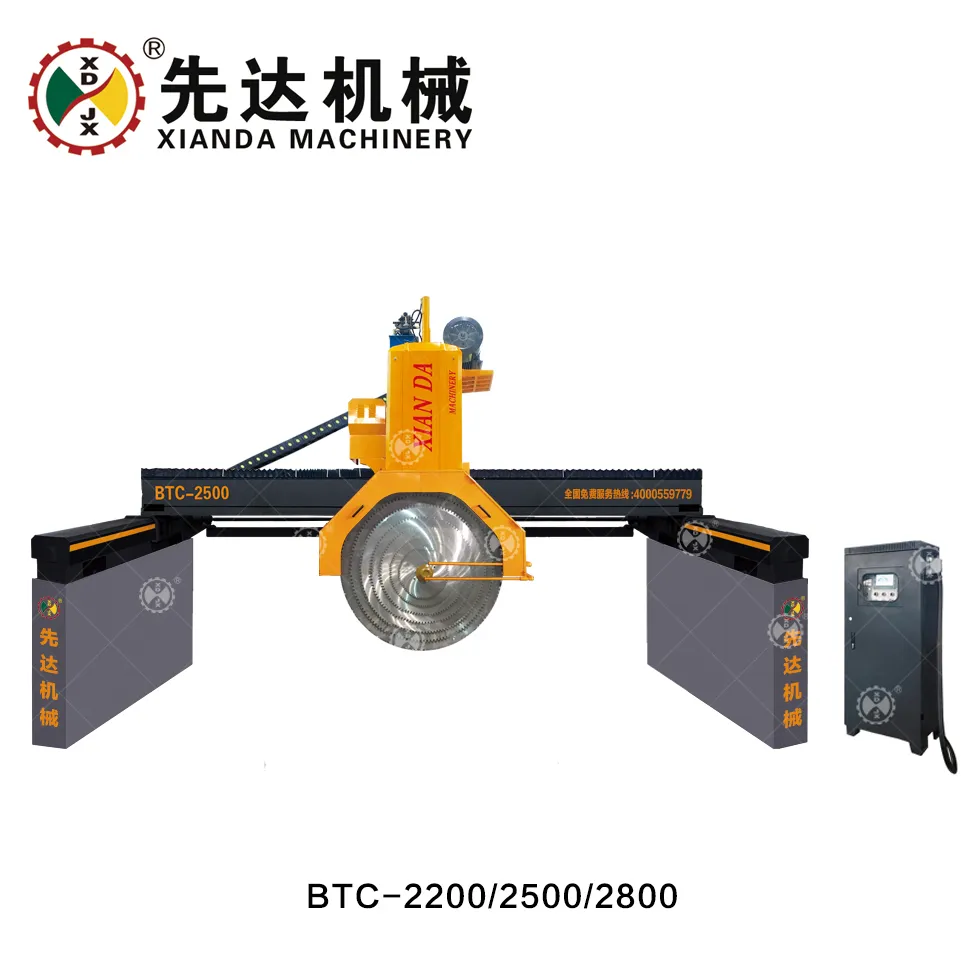

multi-blade large stone block cutting machine marble granite block cutter
BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.
| Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | φ2200 | φ2500 | φ2800 |
| Max processing length | mm | 3600 | 3300 | 3000 |
| Max processing width | mm | 2200 | 2200 | 2200 |
| Max lifting stroke | mm | 1350 | 1350 | 1350 |
| Main motor | kw | 45/55 | 45/55 | 55 |
| Gross motor | kw | 56/66 | 56/66 | 66 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800×3700 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Gross weight | kg | 14000 | 14500 | 14500 |

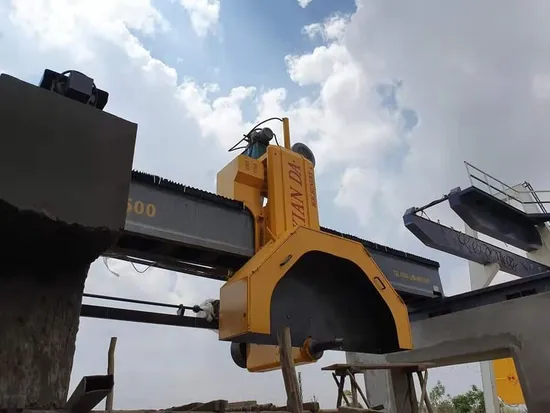

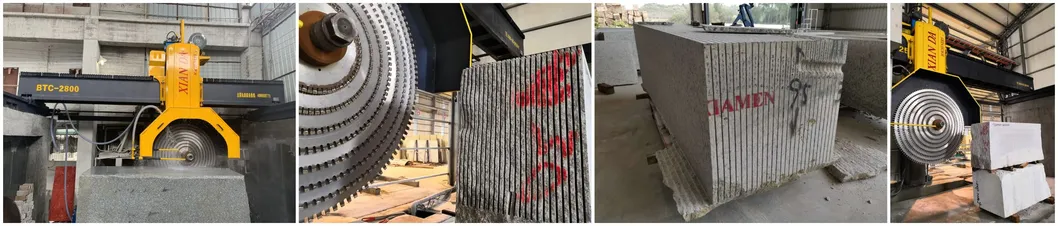

Product Show
