Multi Blades Block Cutting Machine for Processing Marble Granite

سعر FOB: $32.000,00 $38.000,00 / وحدة
الحد الأدنى للطلب: وحدة واحدة
  • توريد وشحن
  • تركيب وتشغيل
  • تدريب الفريق
  • ضمان ودعم
رمز المنتج: XD-jwnaJBfEbNWK التصنيف: الوسوم: , العلامة التجارية:

الوصف

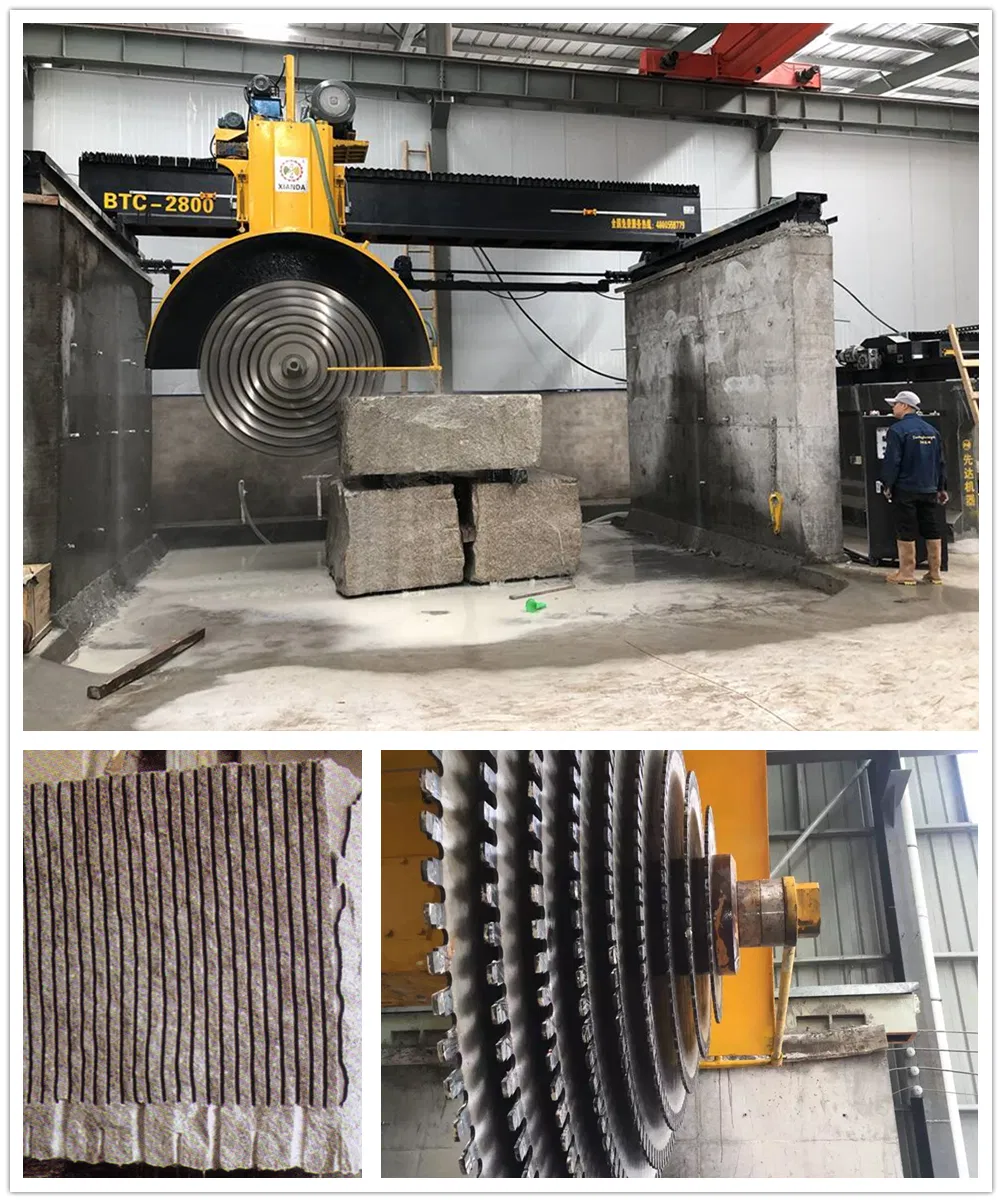

Multi Blades Block Cutting Machine for Processing Marble Granite BTC-2800

Multi Blades Block Cutting Machine for Processing Marble Granite

This machine use inverter to control the left-right feeding, it can adjust the speed according to different kind stones. lt useshydraulic liting system, forward-backward slicing use high-precision screw nut driving, automatic slicing, main parts adoptimported materials; The block can be placed in the ground directly to save workable and its maintenance costs; Thus thewhole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability,easy-operating to suit specially cutting granite and marble block with high value.

Technical Parameter

Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max Blade Diameter mm φ2200 φ2500 φ2800
Max Processing Length mm 3600 3300 3000
Max Moving Front&Back Travel mm 2200 2200 2200
Max Lifting Stroke mm 1350 1350 1350
Water Consumption m³/h 15 15 15
Main Motor kw 45/55 45/55 55
Gross Power kw 56/66 56/66 66

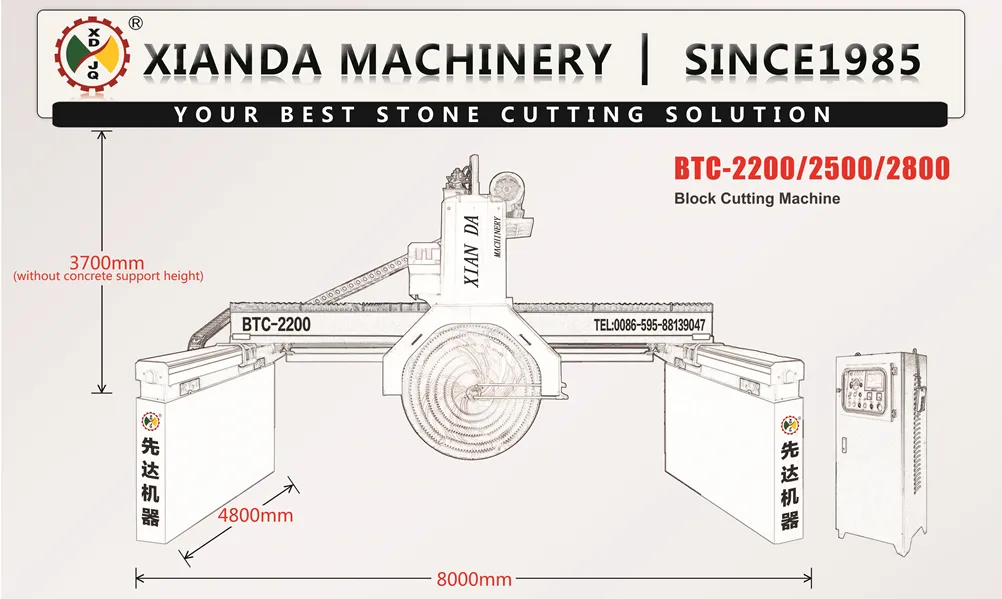

Outline Dimension mm 8000*4800*3700 8000*4800*3700 8000*4800*3700
Gross Weight kg 14000 14500 15000

Multi Blades Block Cutting Machine for Processing Marble Granite



Model NO.BTC-2800
TypeBridge Saw Cutting Machine
UsageCeramics, Concrete Curb, Granite, Marble, Onyx Onyx Limestone Sandstone
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machine
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlMicropcomputer
CertificationGOST, ISO, CE, SGS;IAF
Max Blade Diameterφ2800mm
Max Processing Length3000mm
Max Moving Front&Back Travel2200mm
Max Lifting Stroke1350mm
Main Motor55kw
Gross Power66kw
Outline Dimension8000*4800*3700mm
Water Consumption15m3/H
Gross Weight15000kg
Transport PackagePlastic Package
Specification8000*4800*3700mm
TrademarkXianda
OriginFujian, China (Mainland)
HS Code84641080
Production Capacity1000set Per Year
