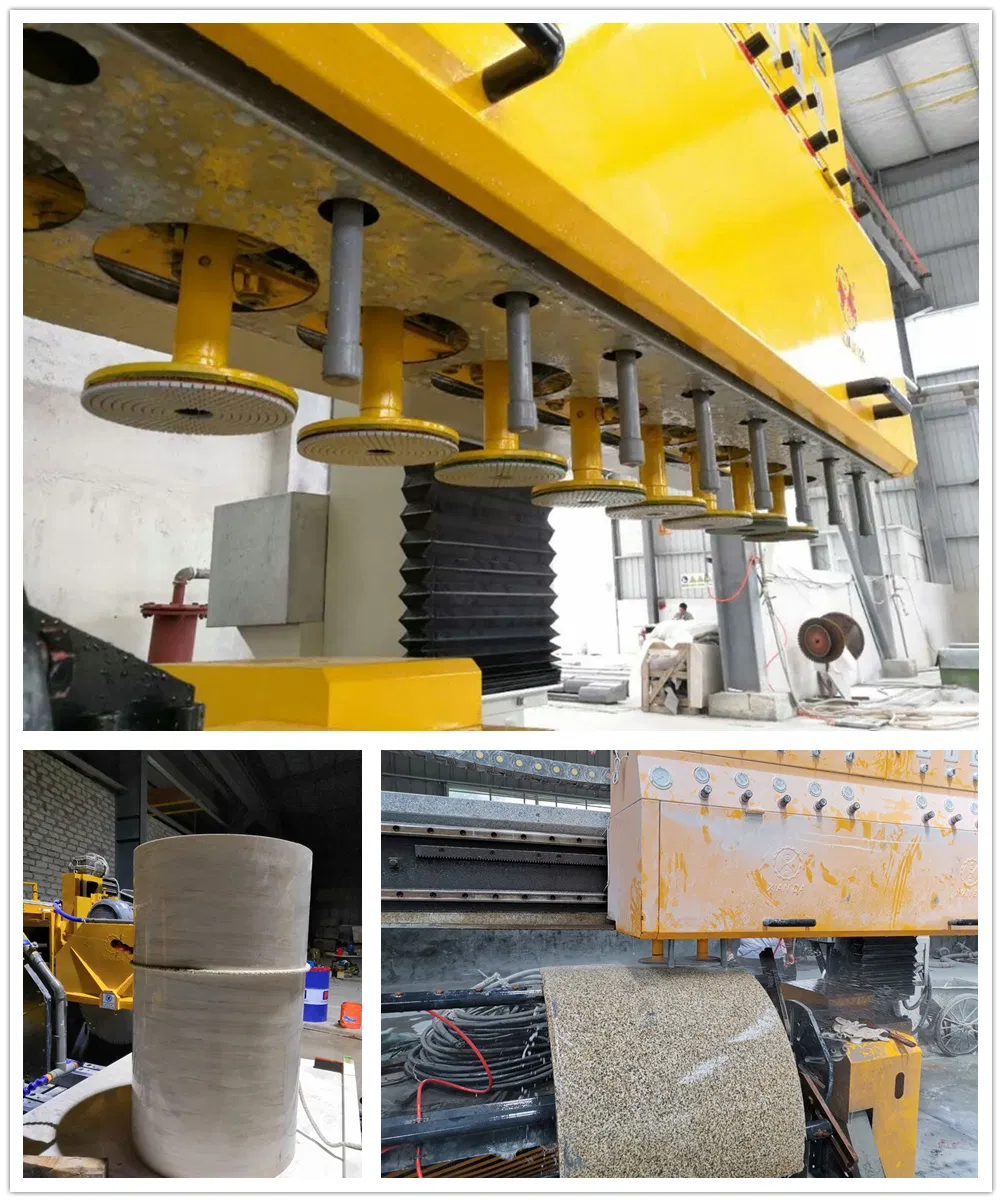

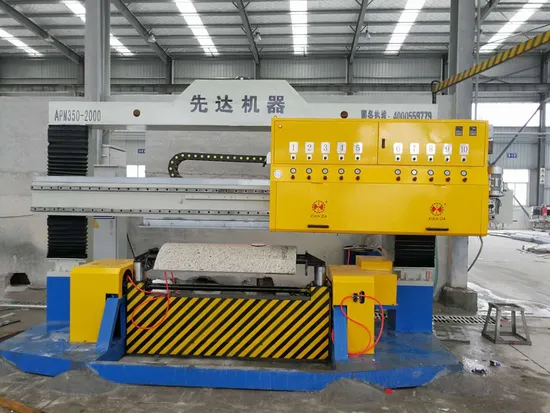

PLC Circular Slab Polishing Machine for Processing Hollow Column APM-350-2000-10

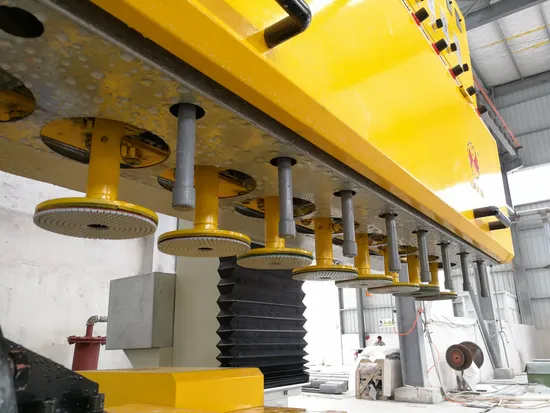

This machine fix circular slab by vacuum, it is better than fix by gripping two sides. And solve the problem which caused verticality and inclination mistake after trimming. lt won’t broke the edge of column slabs. Also it adopts linear guide,multi-polishing heads, PLC system control. It has the feature of high precision, high efficiency, easy operation, etc. lt is theideal equipment for column slab polishing.
Technical Parameter
| Parameter | Unit | APM-350-2000-10 |
| Processing diameter | mm | φ350-φ2000 |
| Processing length | mm | 1300 |
| Grinding number | piece | 10 |
| Gross motor | kw | 30 |
| Efficiency | m²/h | ≈5 |

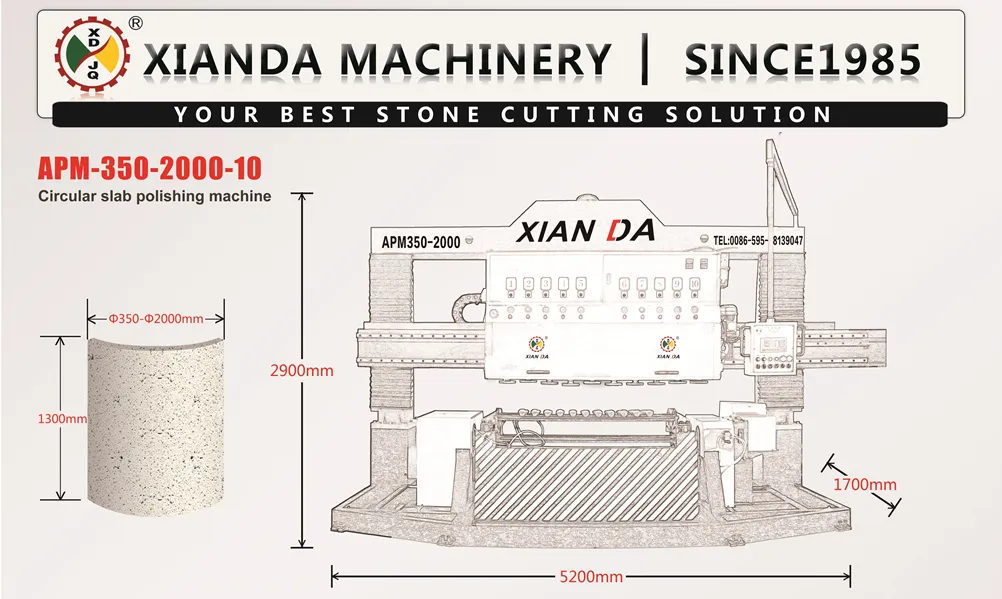

| Outline dimension | mm | 5200*1800*3000 |
| Water consumption | m³/h | 6 |
| Gross weight | kg | 5000 |
