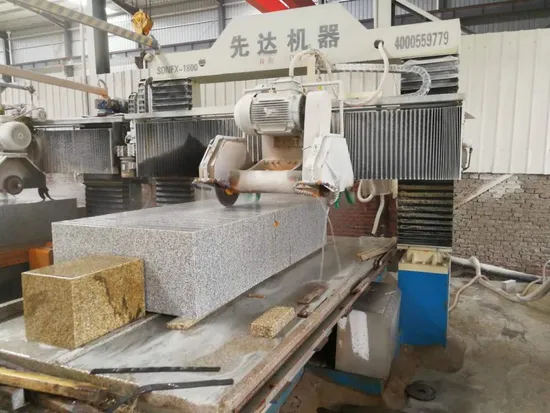

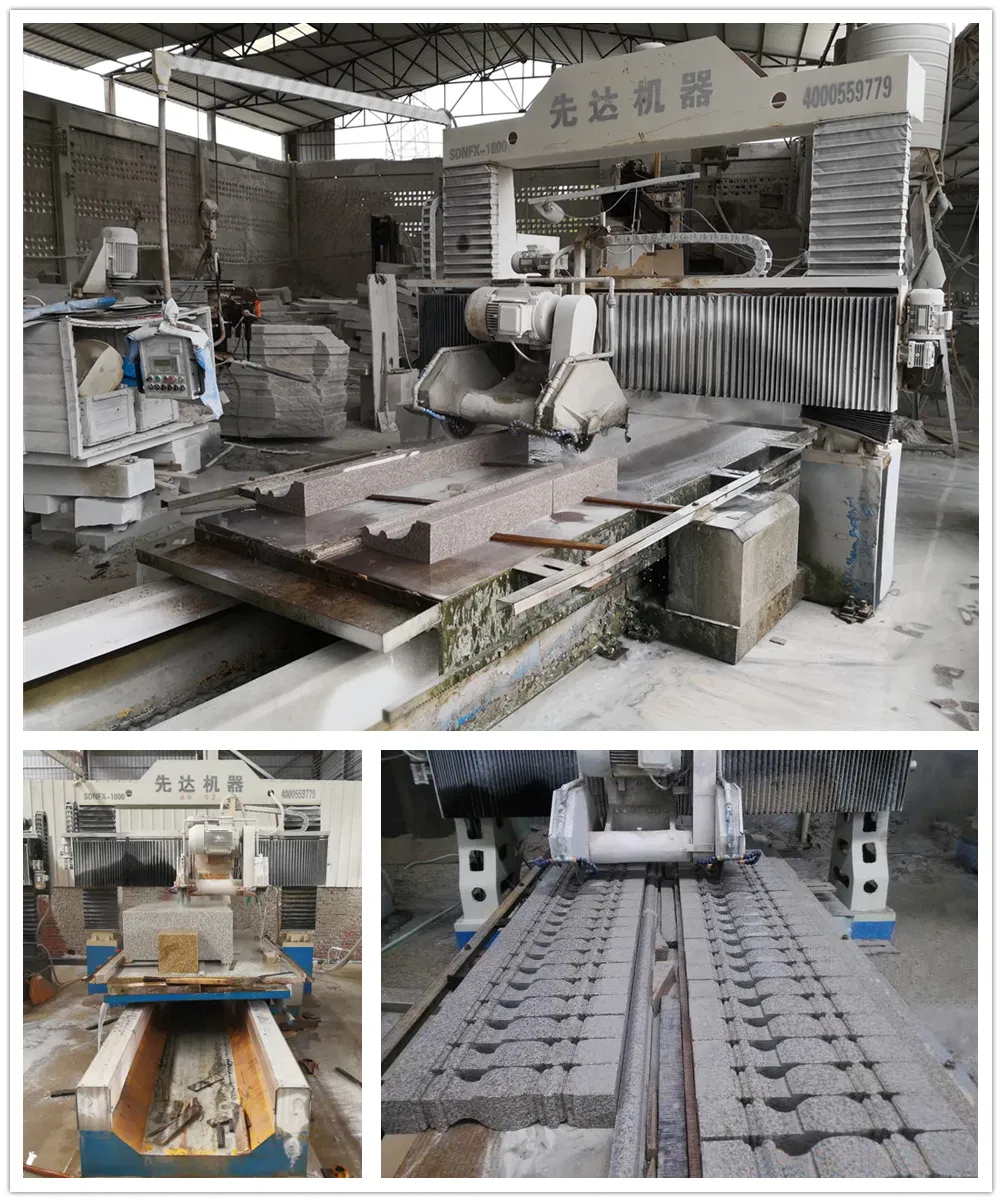

PLC/CNC Two Blades Gantry Type Profiling Linear Machine SDNFX-1800 SCNFX-1800

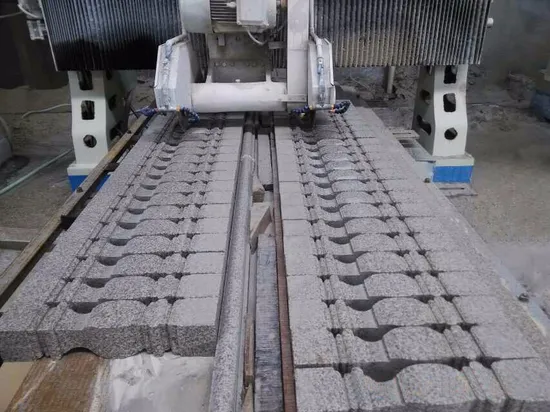

This machine adopts PLC/CNC system, with double blades and stable gantry structure. It can profile the linear, baluster, tomb stone, etc.
Technical Parameter
| Parameter |
Unit |
SDNFX-1800 |
SCNFX-1800 |
| Blade Diameter |
mm |
φ350-φ600 |
φ350-φ600 |
| Max Lifting Travel of Cutting Frame |
mm |
800 |
800 |
| Trolley Size |
mm |
1600*3500 |
1600*3500 |
| Main Motor |
kw |
18.5 |
18.5 |
| Gross Power |
kw |
23 |
23 |

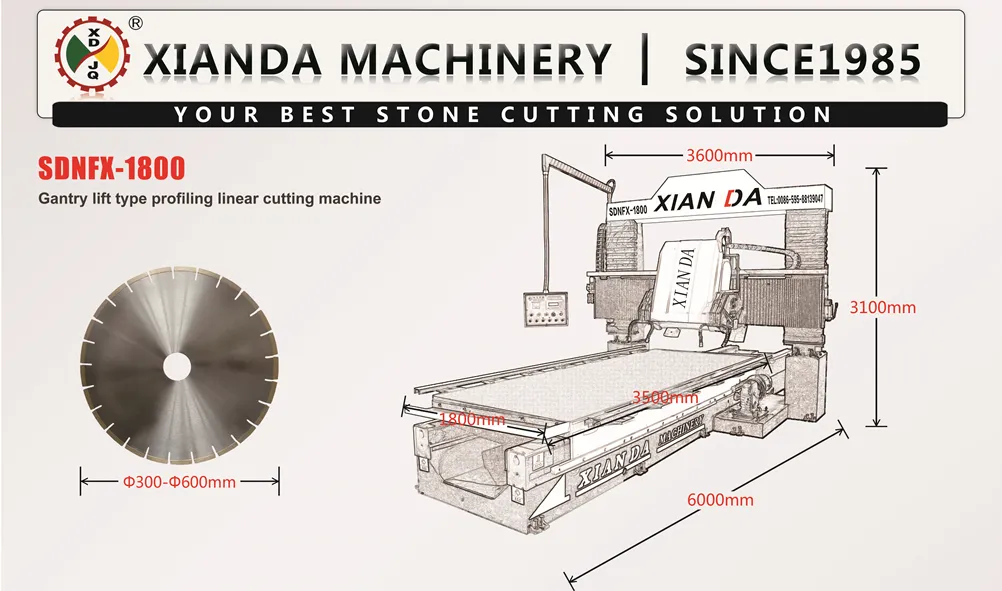

| Outline Dimension |
mm |
6500*3600*2900 |
6500*3600*2900 |
| Gross Weight |
kg |
6000 |
6000 |
| Water Consumption |
m³/h |
6 |
6 |
Model NO.SDNFX-1800 SCNFX-1800
TypeProfiling Cutting Machine
UsageGranite, Marble
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC/CNC
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Blade DiamensionΦ350-600mm
Max Lifting Travel of Cutting Frame800mm
Trolley Size1600*3500mm
Main Motor18.5kw
Gross Power23kw
Outline Dimension6500*3600*2900mm
Water Consumption6m3/H
Gross Weight6000kg
Use forProfiling Linear From The Thinner Stone Block
Blade QtyTwo
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification6500*3600*2900mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
