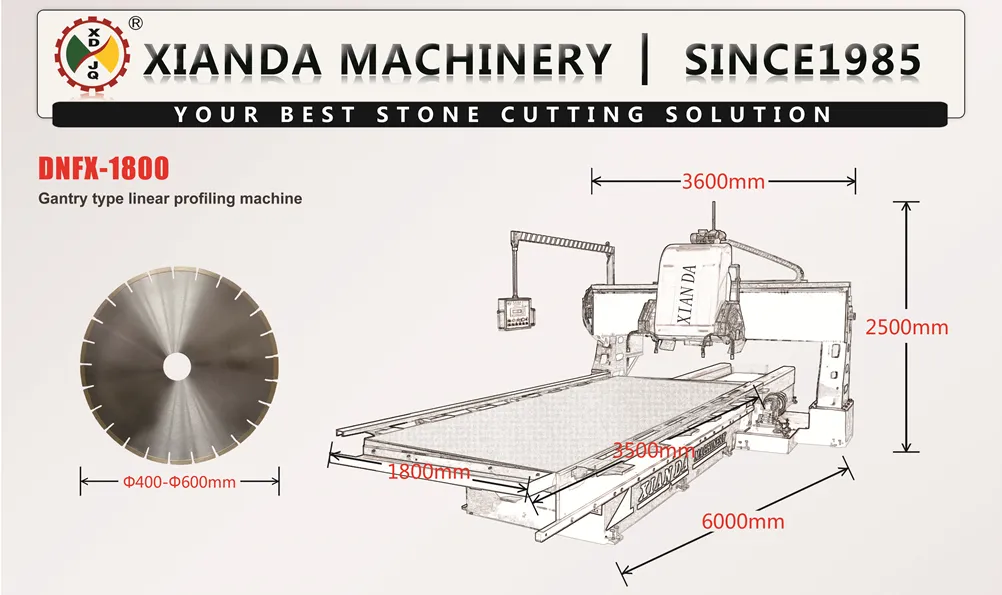

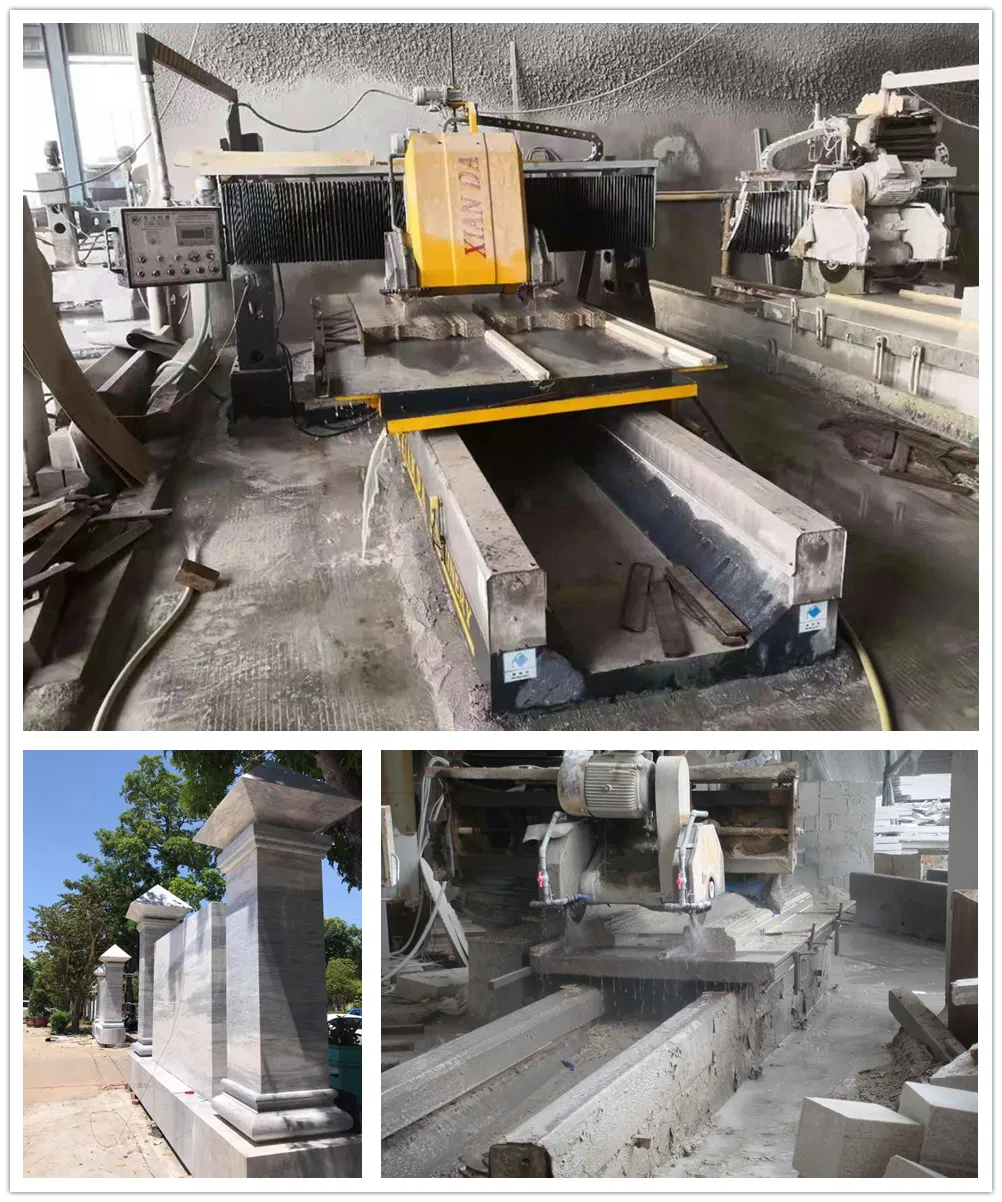

PLC/CNC Gantry Type Linear Thinner Stone block Profiling Machine DNFX-1800/CNFX-1800
This machine is with double blades, gantry structure make its cutting more stable. lt’s suitable for profiling linear from thethinner stone block, as up and down travel is fixed.
This machine is with double blades, gantry structure make its cutting more stable. lt’s suitable for profiling linear from thethinner stone block, as up and down travel is fixed.
Technical Parameter
| Parameter | Unit | DNFX-1800 | CNFX-1800 |
| Blade Diameter | mm | φ400-φ600 | φ400-φ600 |
| Max Lifting Travel of Cutting Frame | mm | 400 | 400 |
| Trolley Size | mm | 1600*3500 | 1600*3500 |
| Main Motor | kw | 18.5 | 18.5 |
| Gross Power | kw | 21.5 | 21.5 |
| Outline Dimension | mm | 6500*3600*2500 | 6500*3600*2500 |
| Gross Weight | kg | 5000 | 5000 |
| Water Consumption | m³/h | 6 | 6 |
