Drc-250/500-2 CRC-250/500-2
Product Description

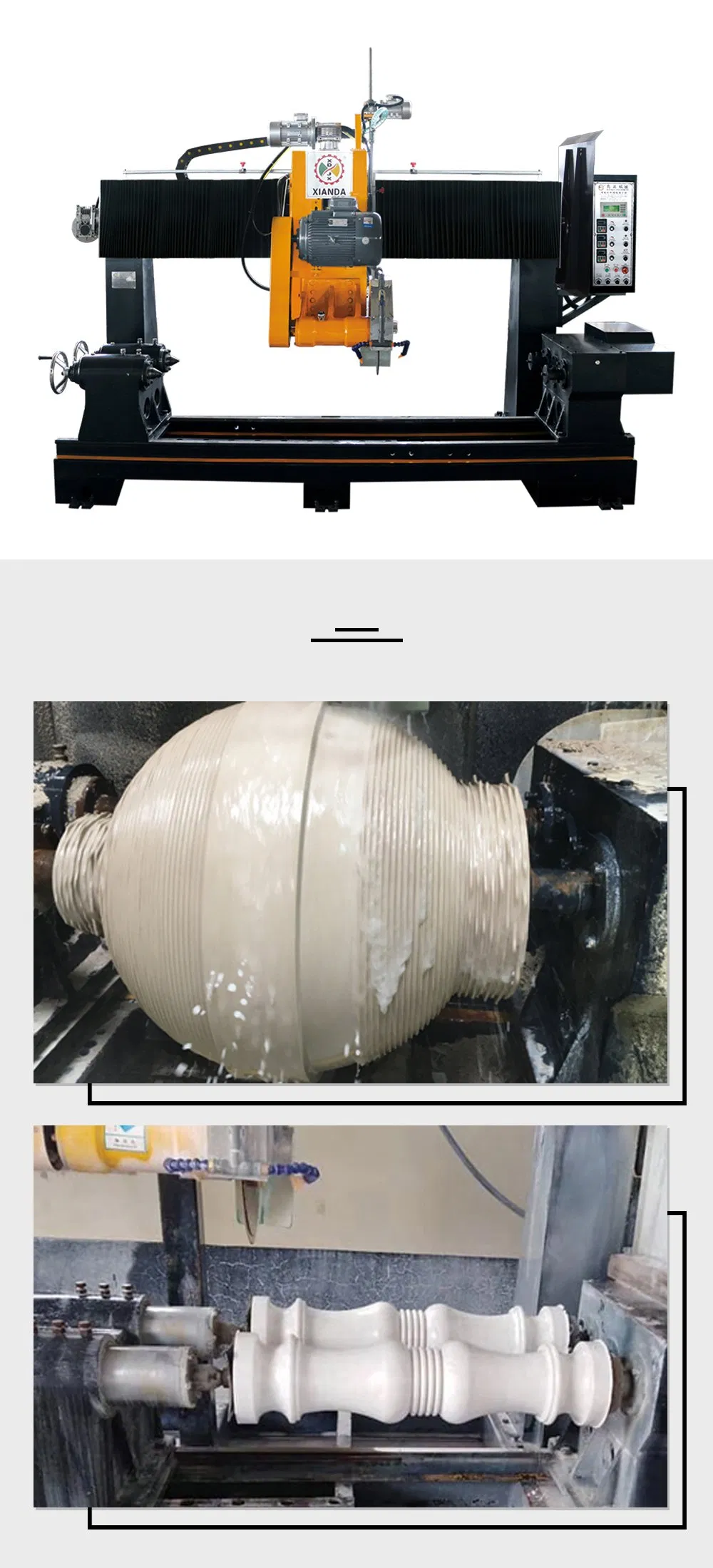

DRC-230/460-2 Stone baluster Cutting Machine Granite / Marble Profile Machine,This machine adopt gantry machine design, microprocessor control and fiber optic probe. It can process all kind of solid stone of revolution,such as baluster, pellet, stylobate,cap and column and so on. It have already overcame the defects of manual process. This machine is automatic, after adjust the size of all direction, one worker can operate many machines. Processing length can be adjusted according to customer demand.
Technical Parameter
| Parameter | Unit | DRC-230/460-2 CRC-250/500-2 |
| Blade diameter | mm | φ500 |
| Max processing diameter | mm | φ230/2pcs;φ460/1pcs |
| Cutting length | mm | 100-2500 |
| Main motor | kw | 11 |
| Gross motor | kw | 16.5 |
| Outline dimension | mm | 4100*1450*3100 |
| Gross weight | kg | 3800 |
| Water consumption | m³/h | 3 |
Xianda Machinery

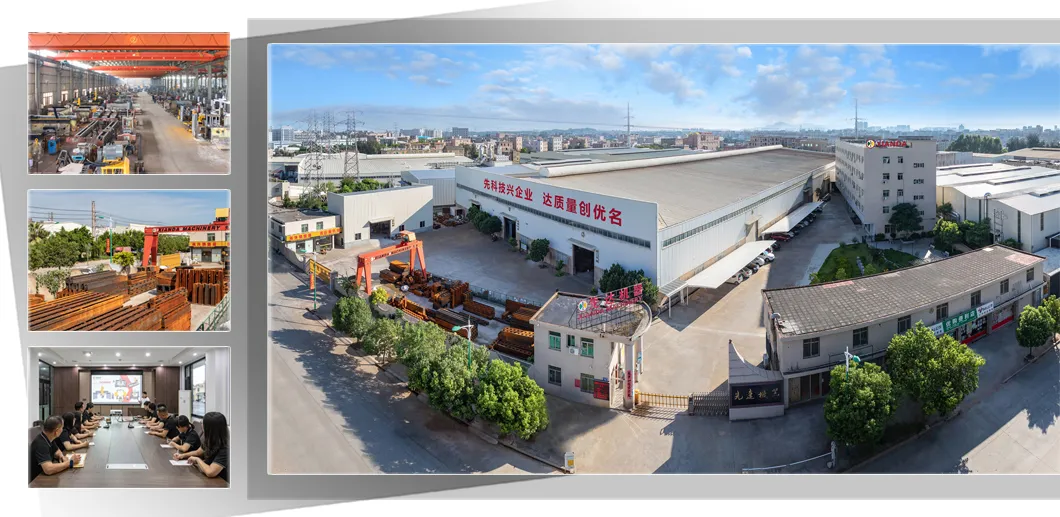

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
