Product Description

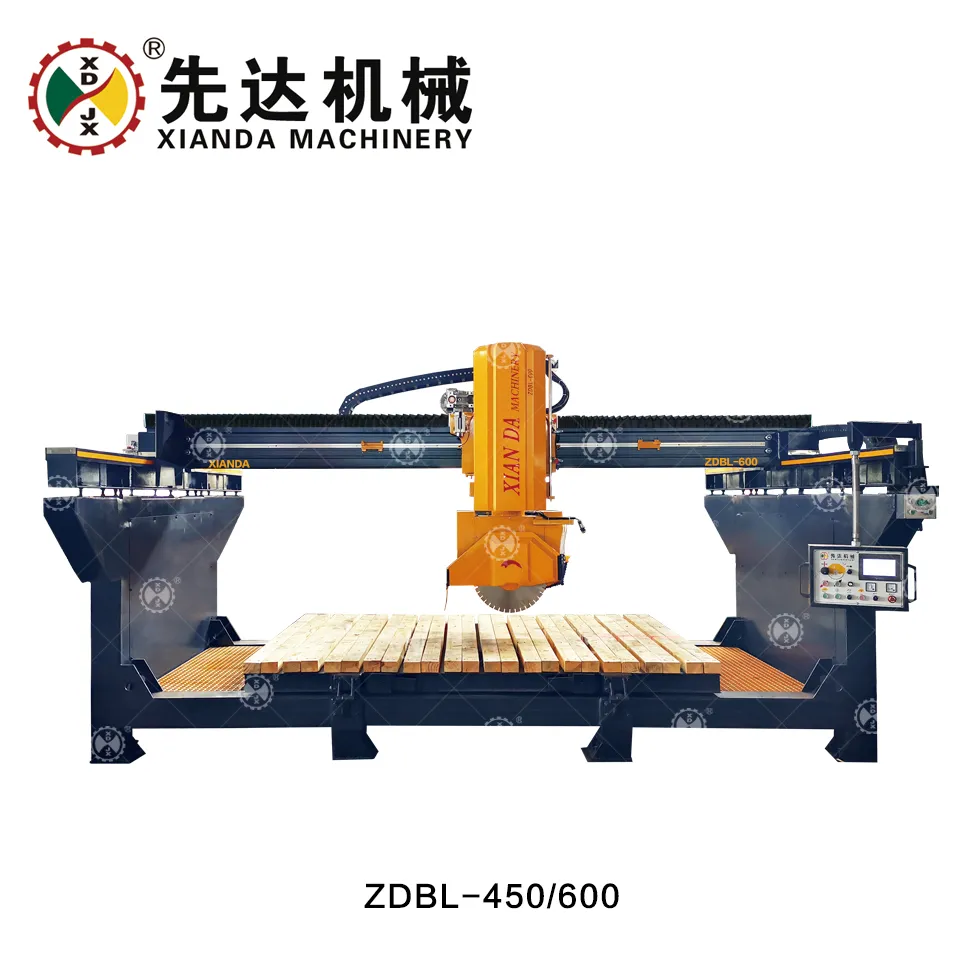

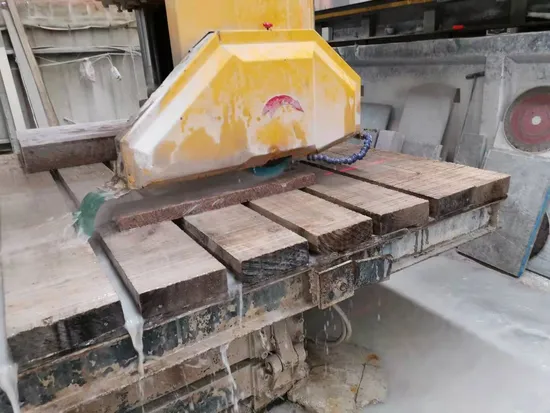

Fujian Xianda ZDBL-450/600,It adopts PLC system and human-machine intelligent operation interface.The main engine uses double hydraulic lifting to combined with chrome guide sleeve,which is small clearance and wearable and beautiful.The design of multi-layer seal in the guide sleeve is waterproof,dustproof and leakproof. The sidebeam adopts high precision linear slide track. The left-right, forward-backward movement are all use encoder to control. With high precision megnetic railing ruler to detect, it can adjust the speed according to the stone materials,thus the accuracy is higher. It uses the dedicated motor of stone machinery.The cutting head can rotate 0°and 90°,enhancing the processing speed.The blade can tilt 0°and 45°, enlarging the range of application.It is an integrated machine with compacted structure,easy operation and efficient cutting precision,which is the first choice for processing and chamfering for high value granite and marble.
Technical Parameter
| Parameter | Unit | ZDBL-450 | ZDBL-600 |
| Blade diameter | mm | 300-450 | 350-600 |
| Max processing size | mm | 3200*2000*100 | 3200*200*170 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Worktable tilting degree | ° | 0-85° | 0-85° |
| Blade rotation degree | ° | 0,90° | 0,90° |
| Blade tilting (optional) | ° | 0,45°(optional) | 0,45°(optional) |
| Water consumption | m³/h | 3 | 3 |
| Power of main motor | kw | 15 | 18.5 |
| Total power | kw | 20.5 | 24 |
| Dimension(L*W*H) | MM | 5850*3500*2650 | 5850*3500*2950 |
| Weight | kg | 6500 | 6750 |
Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
