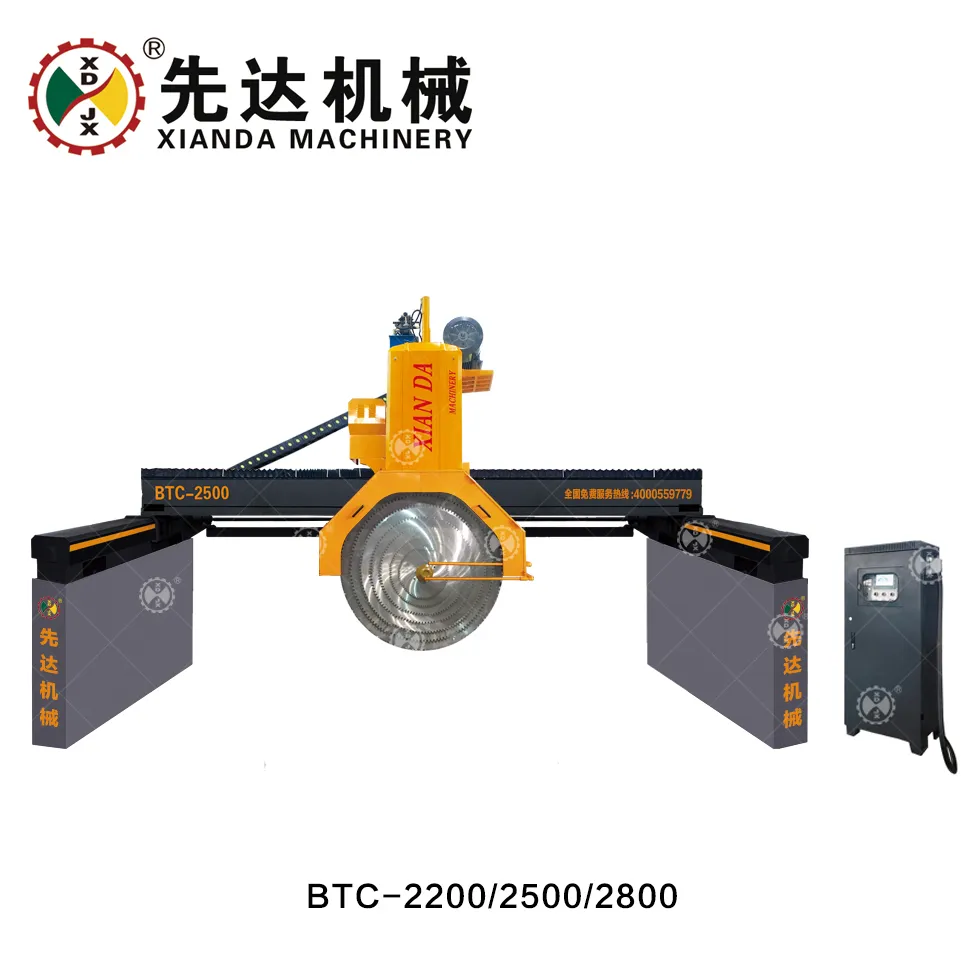

multi-blade large stone block cutting machine marble granite block cutter
BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.
| Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | φ2200 | φ2500 | φ2800 |
| Max processing length | mm | 3600 | 3300 | 3000 |
| Max processing width | mm | 2200 | 2200 | 2200 |
| Max lifting stroke | mm | 1350 | 1350 | 1350 |
| Main motor | kw | 45/55 | 45/55 | 55 |
| Gross motor | kw | 56/66 | 56/66 | 66 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800*3700 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Gross weight | kg | 14000 | 14500 | 15000 |

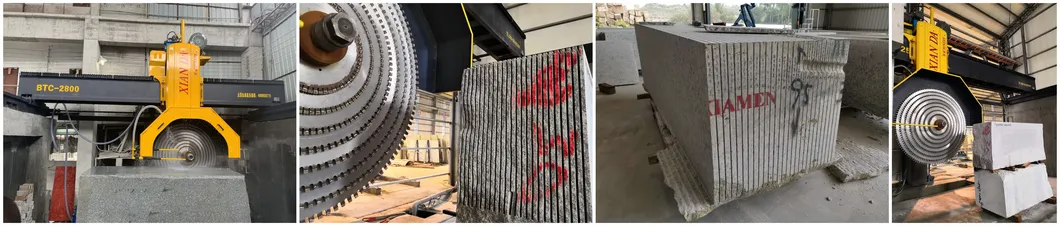

Product Show

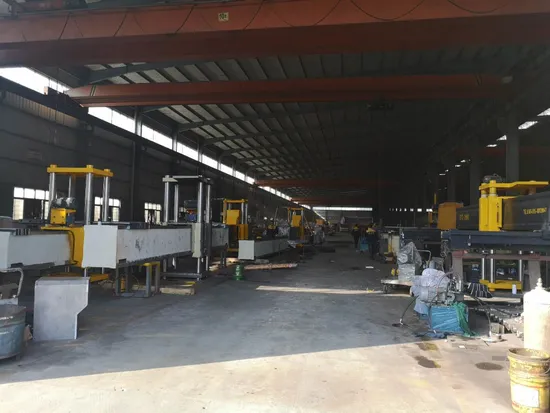

Factory Overviews
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep ” Advanced Tecnology and High Quality” as our aim. We have developed a range of ‘Xianda’ Brand special stone shape processing machines.
