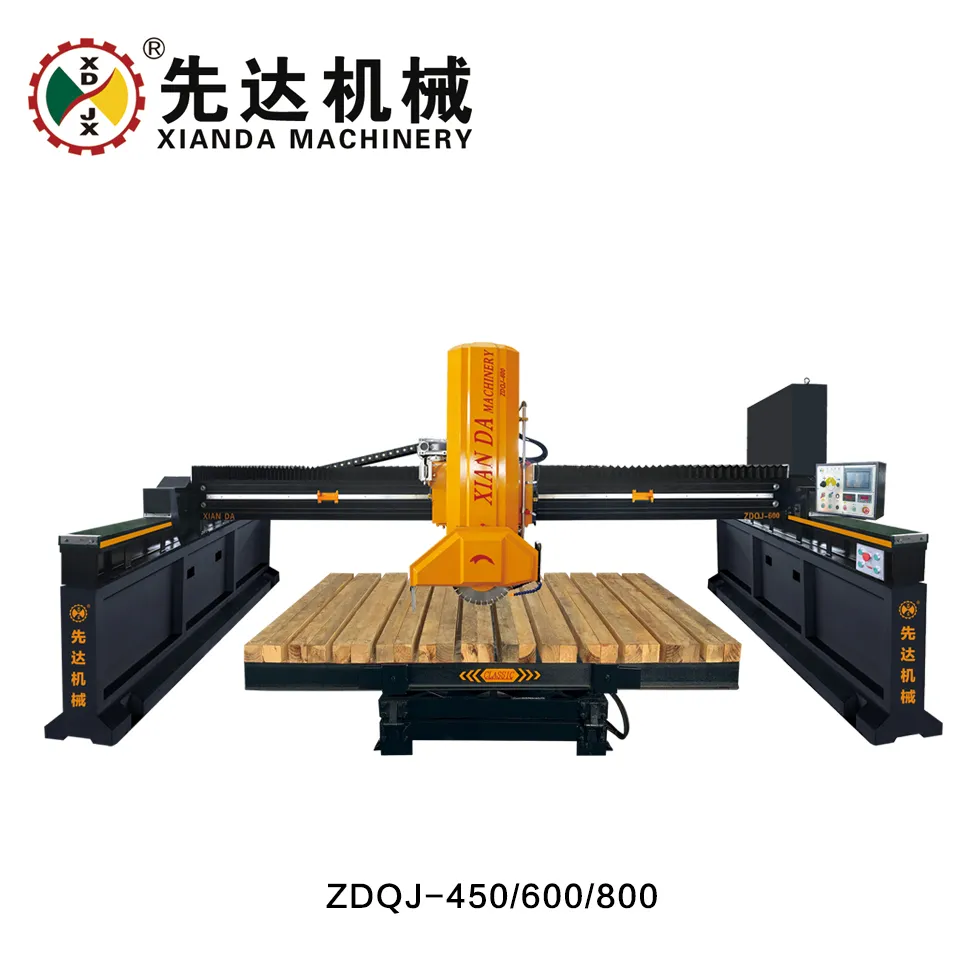

ZDQJ-450/600/800

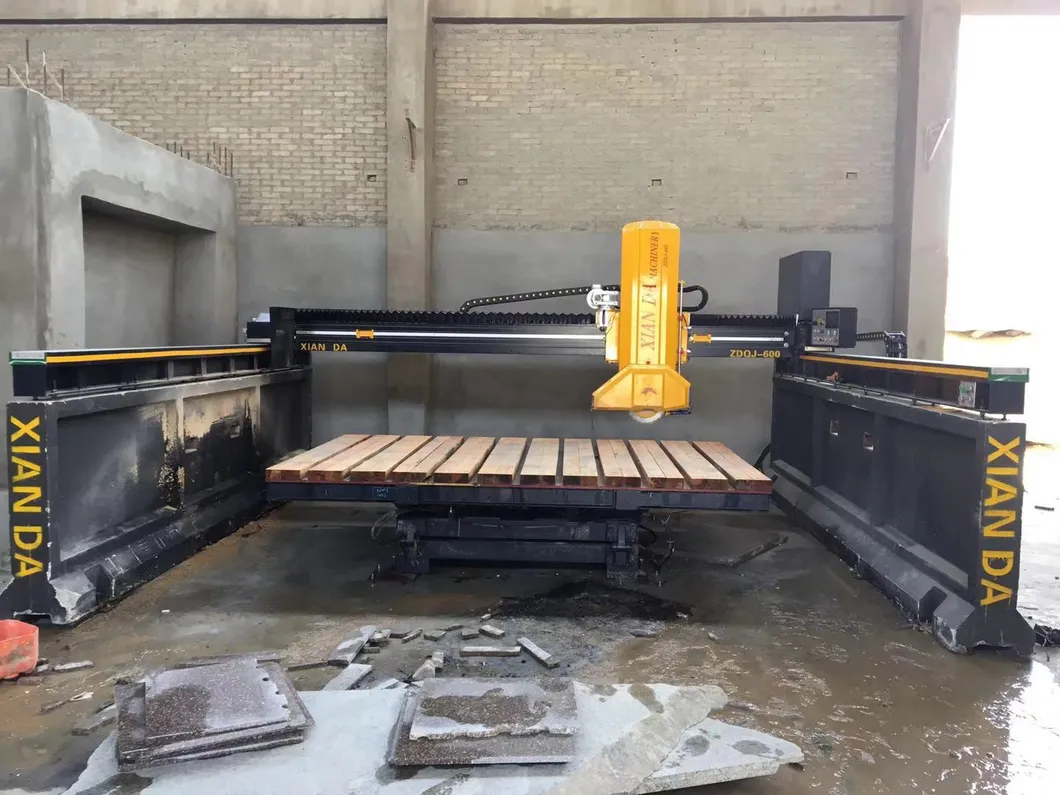

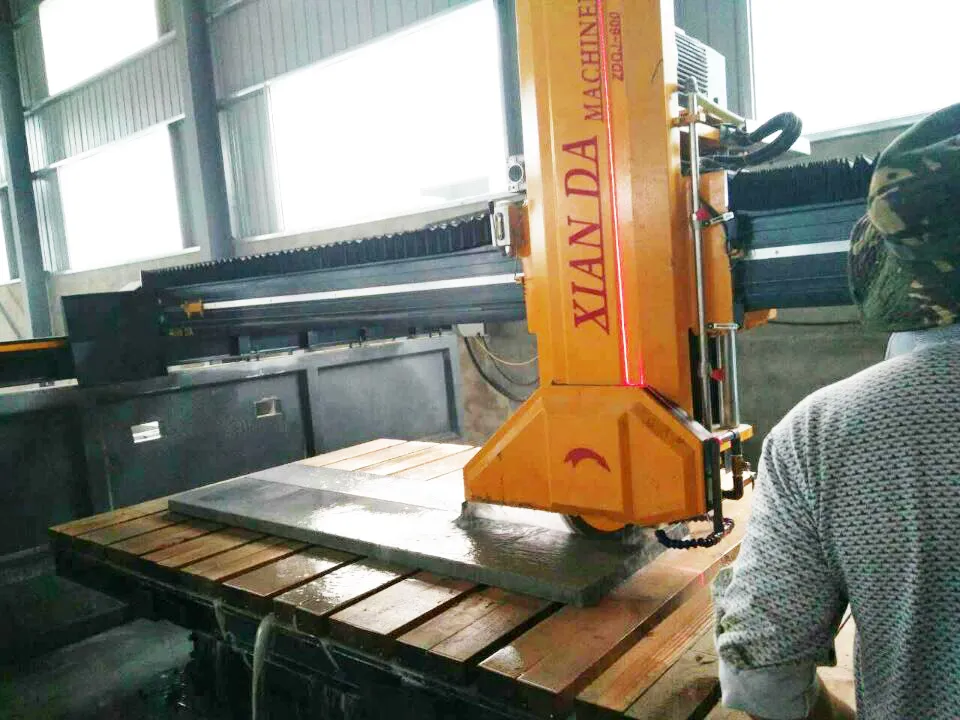

Infrared Bridge Cutting Machine

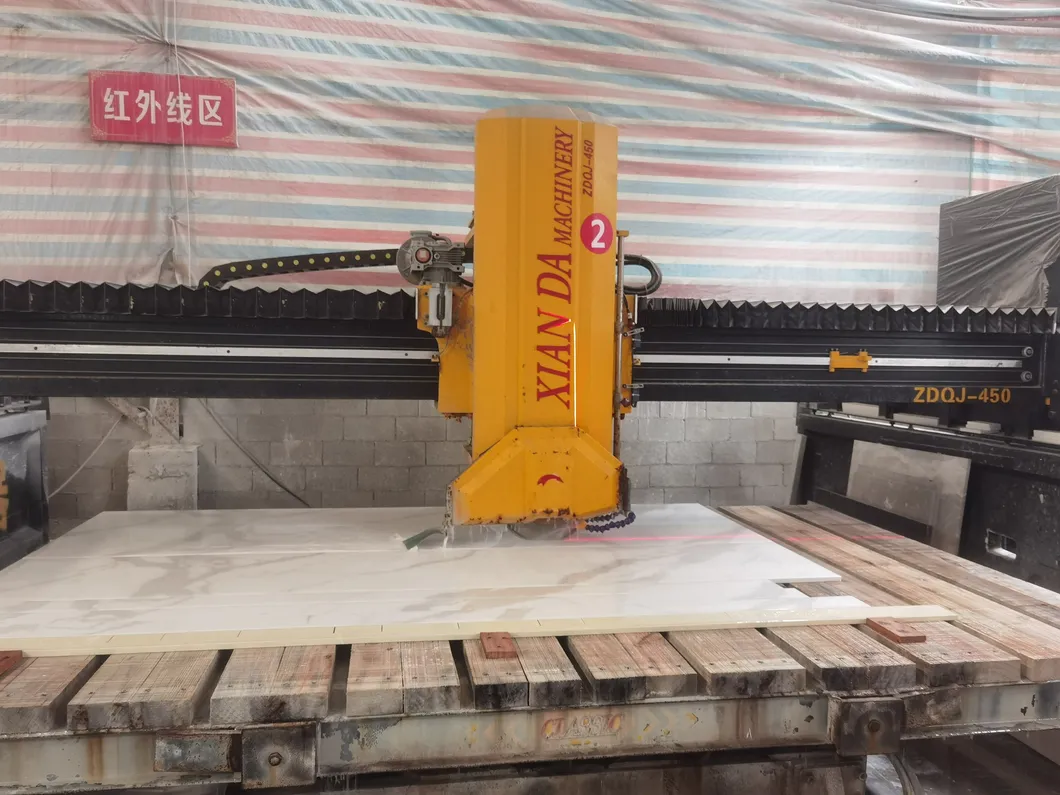

ZDQJ-450 laser automatic stone bridge saw cutting machine with rotary and tilt table. It has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.

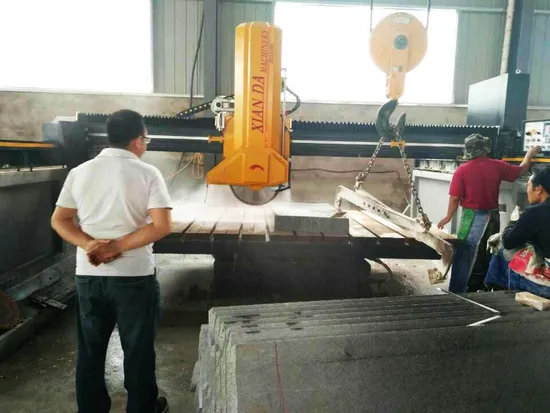

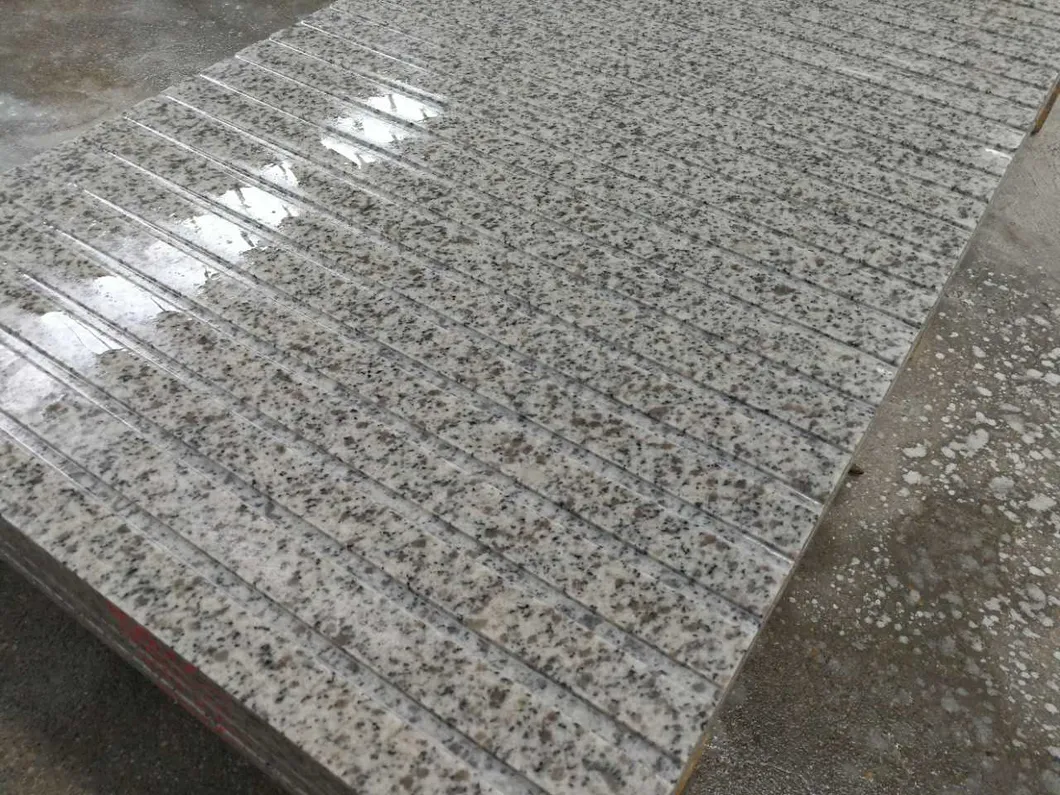

The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and veneers cutting.
Product Parameters
| Parameter | Unit | ZDQJ-450 | ZDQJ-600 | ZDQJ-800 |
| Blade diameter | mm | Φ300-Φ450 | Φ350-Φ600 | Φ500-Φ800 |
| Max processing size | mm | 3200*2000*100 | 3200*2000*170 | 3200*2000*270 |
| Dimension of worktable | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Worktable tilting degree | ° | 0-85° | 0-85° | 0-85° |
| Worktable rotation degree | ° | 0-90°/0-360° optional | 0-90°/0-360° optional | 0-90°/0-360° optional |
| Main motor | kw | 15 | 18.5/22 optional | 22 |
| Gross motor | kw | 20.5 | 24/27.5 optional | 27.5 |
| Water consumption | m³/h | 3 | 3 | 3 |
| Outline dimension | mm | 5850*4750*2700 | 5850*4750*3000 | 5850*4750*3400 |
| Gross weight | kg | 5500 | 5750 | 6000 |

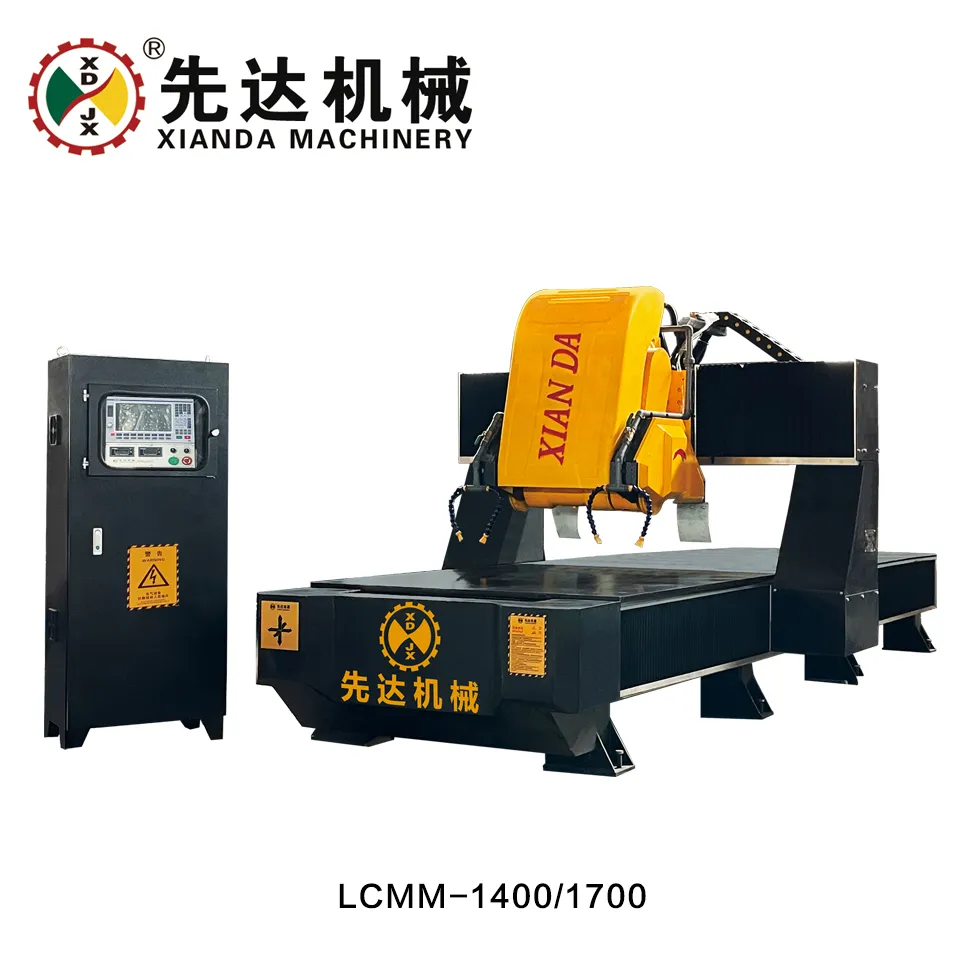

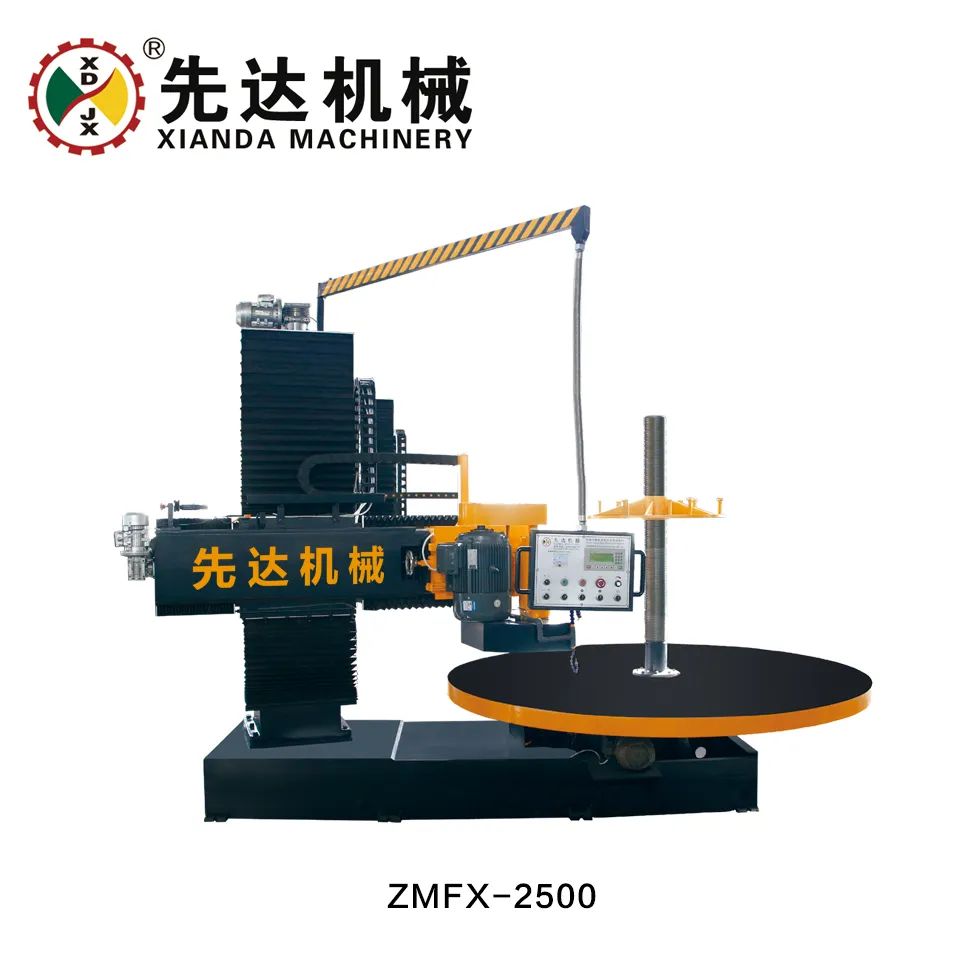

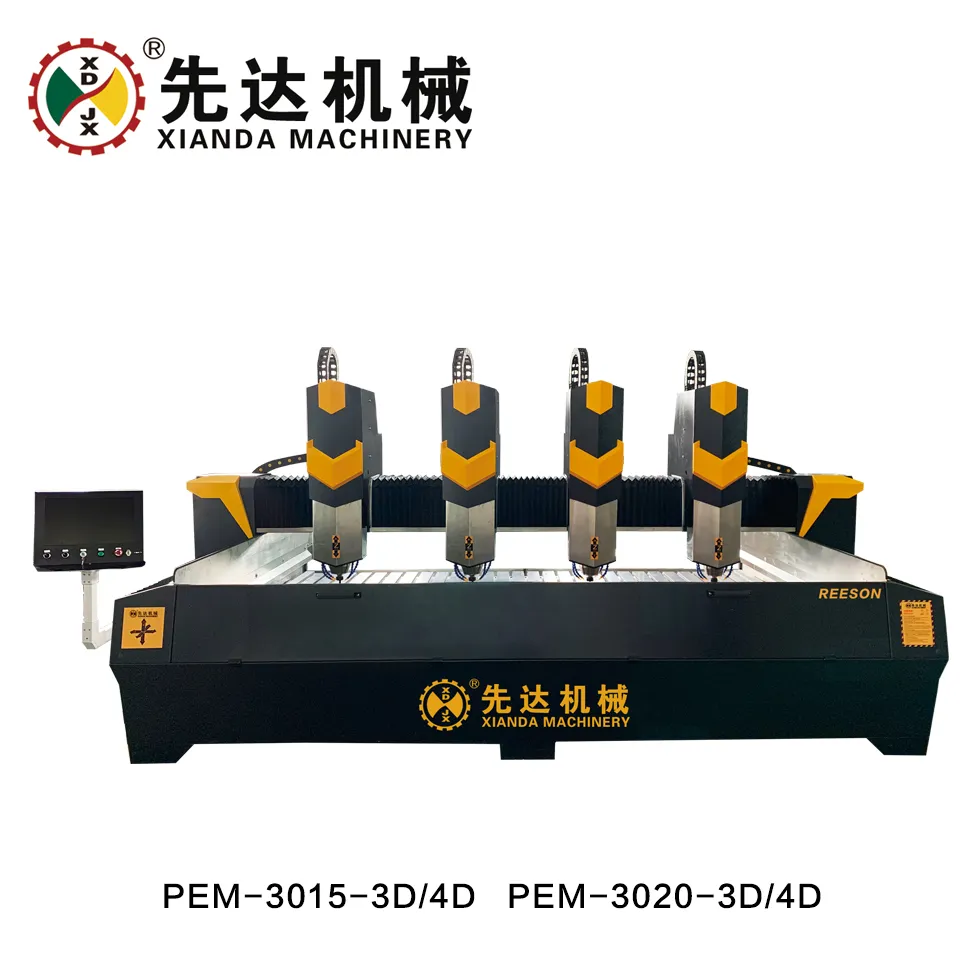

HOT PRODUCT
Our Advantages
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

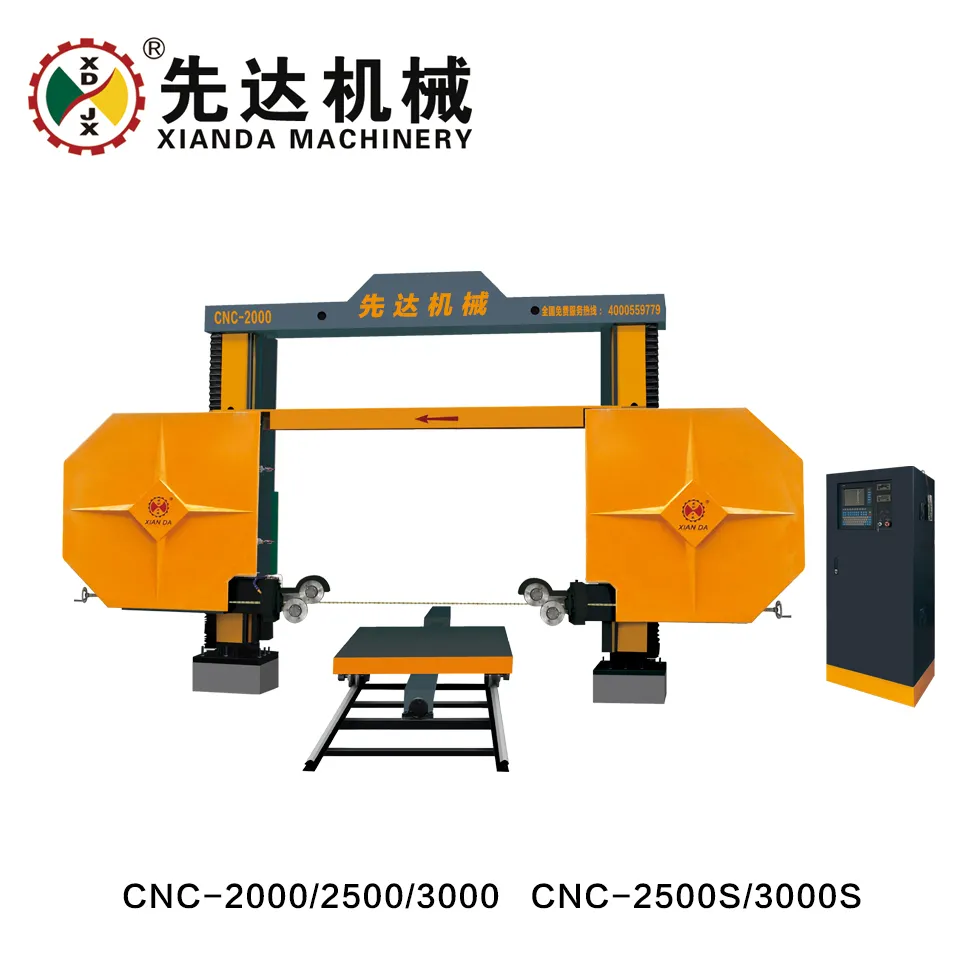

Key words: stone cutting machine, wire saw machine, stone profiling.
Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.
Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.
Delivery time
Based on order quantity, normally three weeks against payment.
Warranty
All the machines have one year warranty.
