Product Description

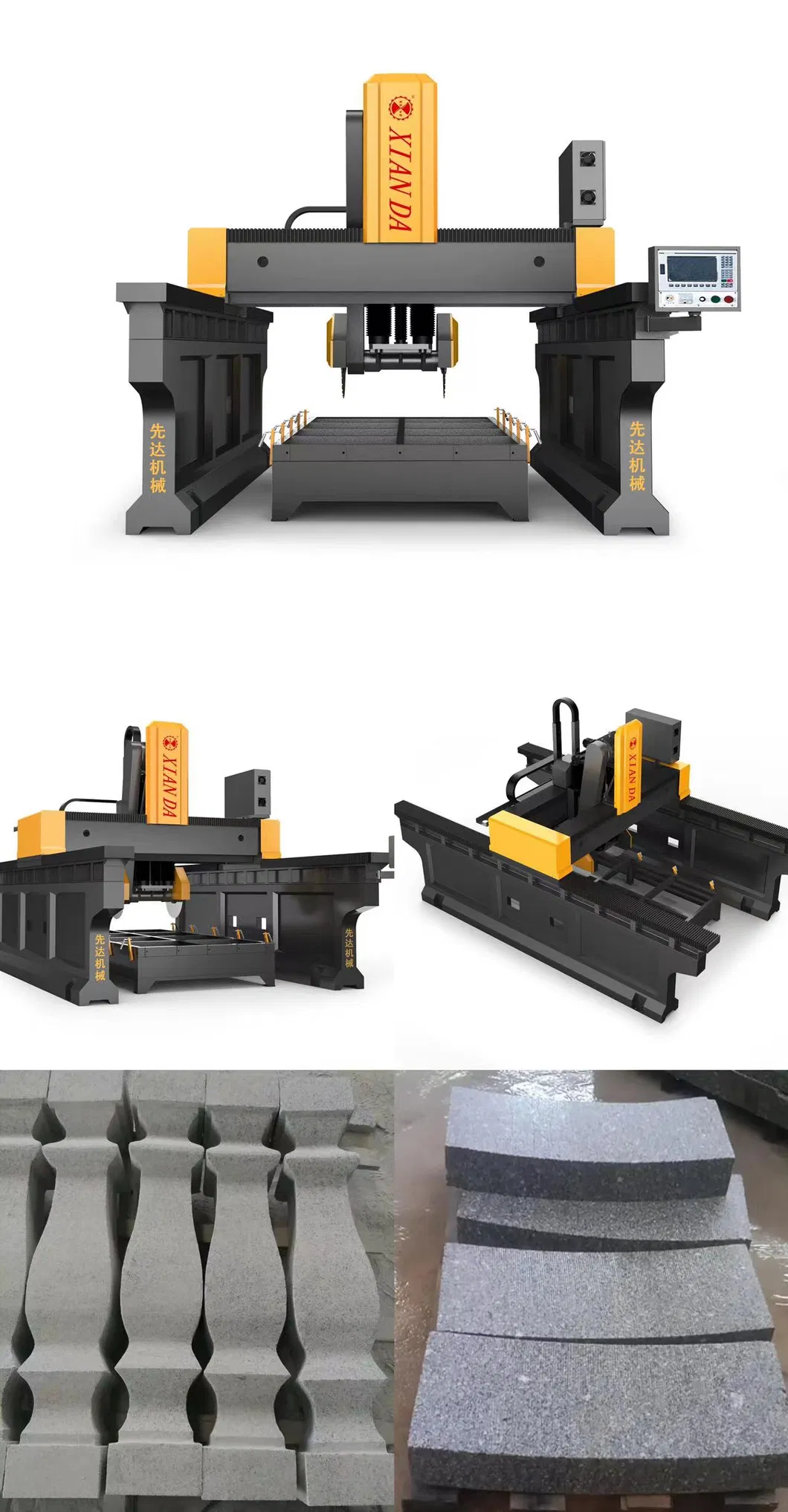

This machine adopts three-axis CNC system control,bridge double beam structure, Cutting Head lifting structure use four guide column +sleeve copper, left right travelling use four sets side wheels+four sets bottom wheel, combined the accuracy of linear guide rail and the power of profiling machine.It has the advantages of high stroke, high efficiency, high stability, etc. the system includes rough cutting ,fine cutting ,fine milling and other functions, and is suitable for large-scale special-shaped stone processing.
Technical Parameter
| Parameter | Unit | BLMM-1800MAX-A | BLMM-1800MAX-B |
| Blade diameter | mm | φ400-700 | φ400-700 |
| Spindle qty | mm | 1 Spindle (2Blades) | 1 Spindle (2Blades) |
| Max lifting travel of cutting frame | mm | 600 | 600 |
| Trolley size | mm | 1800*3500 | 1800*3500 |
| Max processing length | mm | 3500 | 3500 |
| Main motor | kw | 18.5/22 | 18.5/22 |
| Gross power | kw | 24/27.5 | 24/27.5 |
| Outline dimension | mm | 6200*4350*3600 | 6200*4100*3600 |
| X axis transmission structure | / | Walking wheel | Linear guide |
| Y axis transmission structure | / | Single Y aixs drive | dual Yaxis drive |
| Water consumption | m³/h | 6 | 6 |
Xianda machinery
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
