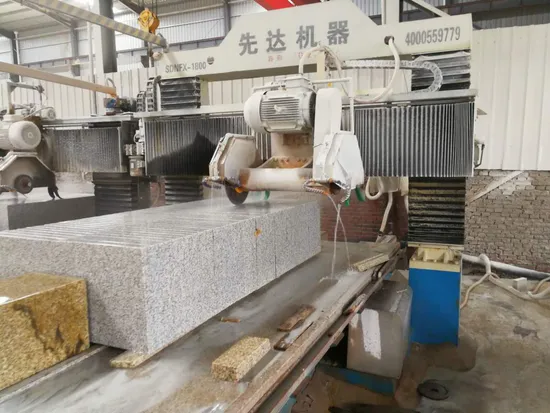

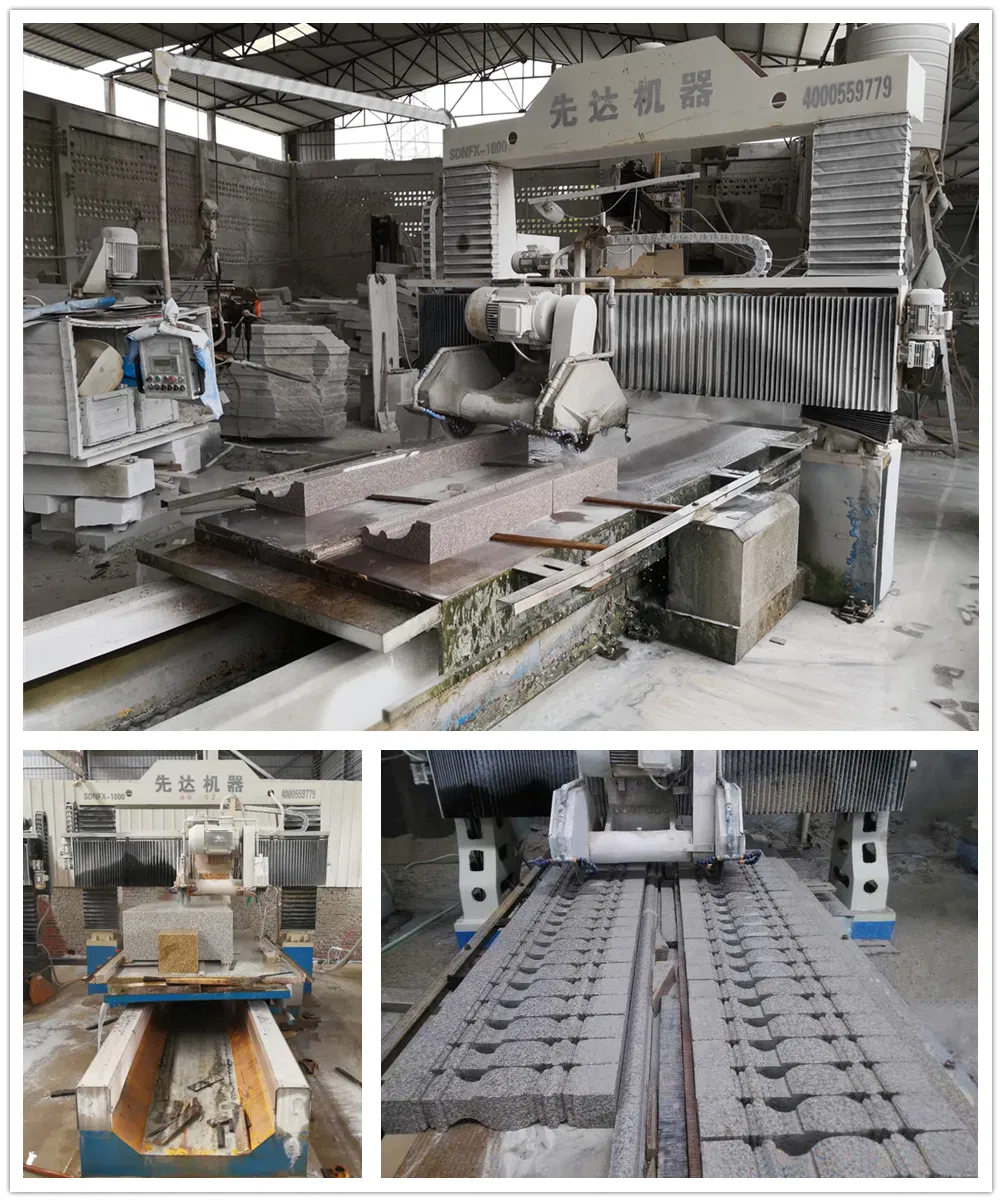

PLC and CNC Gantry lift type profiling linear machine stone cutting machine

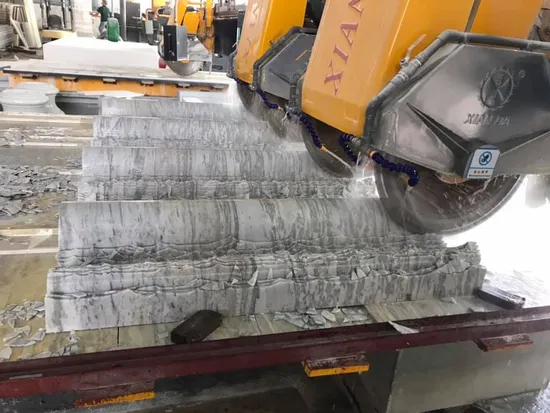

This machine adopts PLC/CNC system, with double blades and stable gantry structure. It can profile the linear, baluster, tomb stone, etc.
Technical Parameter
| Parameter |
Unit |
SDNFX-1800 |
SCNFX-1800 |
| Blade Diameter |
mm |
φ350-φ600 |
φ350-φ600 |
| Max Lifting Travel of Cutting Frame |
mm |
850 |
850 |
| Trolley Size |
mm |
1800*3500 |
1800*3500 |
| Main Motor |
kw |
18.5 |
18.5 |
| Gross Power |
kw |
23.5 |
23.5 |
| Outline Dimension |
mm |
6000*3600*3100 |
6000*3600*3100 |
| Gross Weight |
kg |
6000 |
6000 |
| Water Consumption |
m³/h |
6 |
6 |
CustomizationAvailable
After-sales ServiceOne Year for Spare Part
WarrantyOne Year
Model NO.SDNFX-1800 SCNFX-1800
TypeProfiling Cutting Machine
UsageGranite, Marble
ApplicationConstruction, Stone Industry
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC
CertificationCCC, SONCAP, GOST, ISO, CE
Max Cutting DiamensionΦ350-600mm
Max Lifting Travel of Cutting Frame850mm
Trolley Size1800*3500mm
Main Motor18.5kw
Gross Motor23.5kw
Outline Dimension6500*3600*2900mm
Water Consumption6m3/H
Gross Weight6000kg
Use forCutting Profiling Lines,Column,Column Slab
Sagment QtyTwo
Transport PackageLoad in a 20 Feet Container
Specification6000*3600*3100mm
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
