Product Description

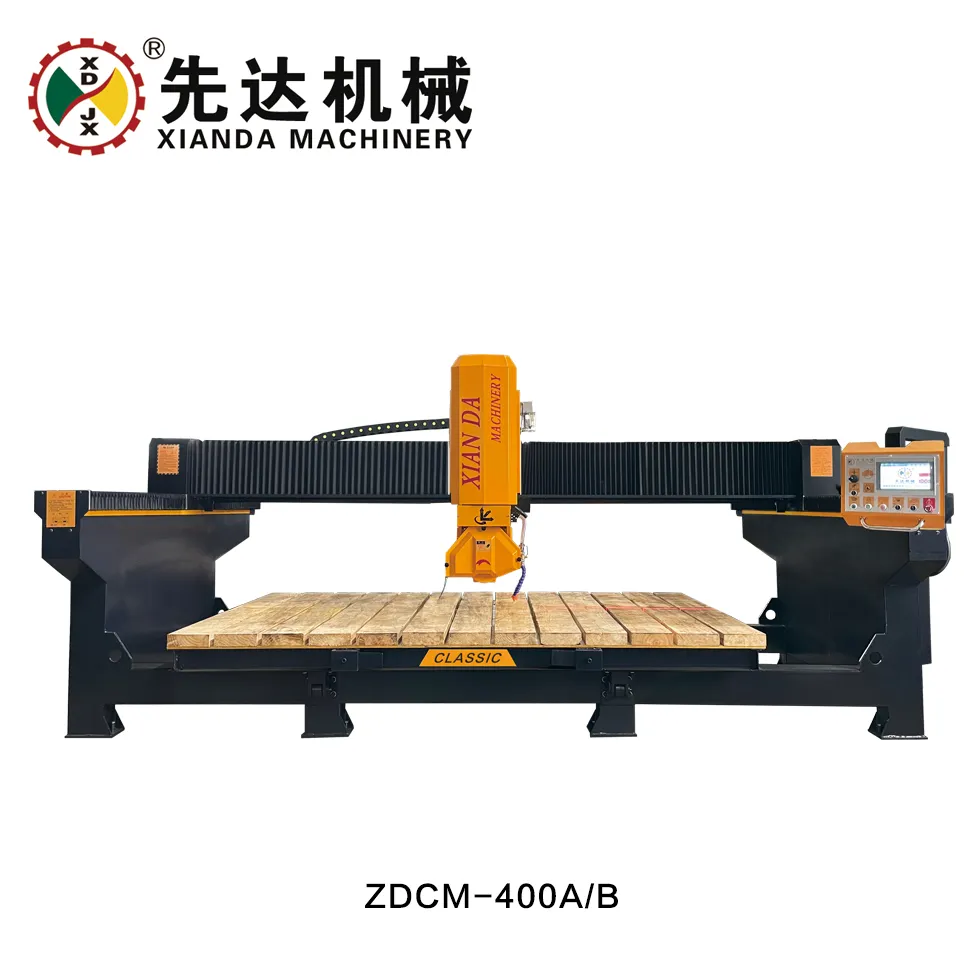

Xianda ZDCM-400 adopts Microcomputer system, easy to operate; Integrated structure, easy to install; The frame of the machine body is processed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high-end servo systems. It greatly improves the stability, processing accuracy and production efficiency of the equipment. It is suitable for all kinds of large-scale plate processing with high precision requirments and high value.

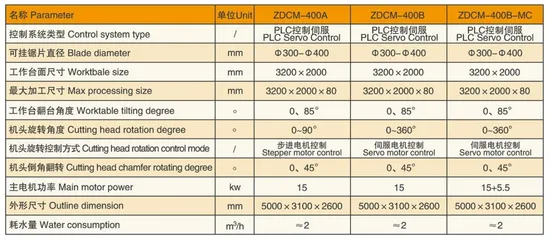

Specification
|
Technical Parameter
|
Unit
|
ZDCM-400A
|
|
Control system type
|
/
|
PLC
|
|
Blade diameter
|
mm
|
Φ300 – Φ400
|
|
Worktable size
|
mm
|
3200 X 2000
|
|
Max processing size
|
mm
|
3200 X 2000 X 80
|
|
Worktable tilting degree
|
°
|
0,85°
|
|
Cutting head rotation degree
|
°
|
0~90°
|
|
Cutting head rotation control mode
|
/
|
Stepper motor control
|
|
Cutting head chamfer rotating degree
|
°
|
0,45°
|
|
Main motor power
|
kw
|
15
|
|
Outline dimension
|
mm
|
5000 x3100 x 2600
|
|
Water consumption
|
m³/h
|
≈2
|
