Machine Details

Product Description
1 Medium-block stone cutting machine, stone cutting machine, bridge saw, reasonable structure, using PLC system and man-machine interface.
2 Equipped with dual operating languages in Chinese and English and infrared device
3 It is equipped with an ultra-high-precision rotary encoder, and a frequency converter is used to control the left and right feeding and adjust the speed according to the stone.
4 Adopts a hydraulic lifting system installed by a skateboard, and provides a unique side beam protection device. The main spare parts are made of imported high-quality materials.
5 Therefore, the whole machine has the characteristics of high cutting efficiency, high stability, easy operation, special cutting shape stone products, tombstones and curbs.

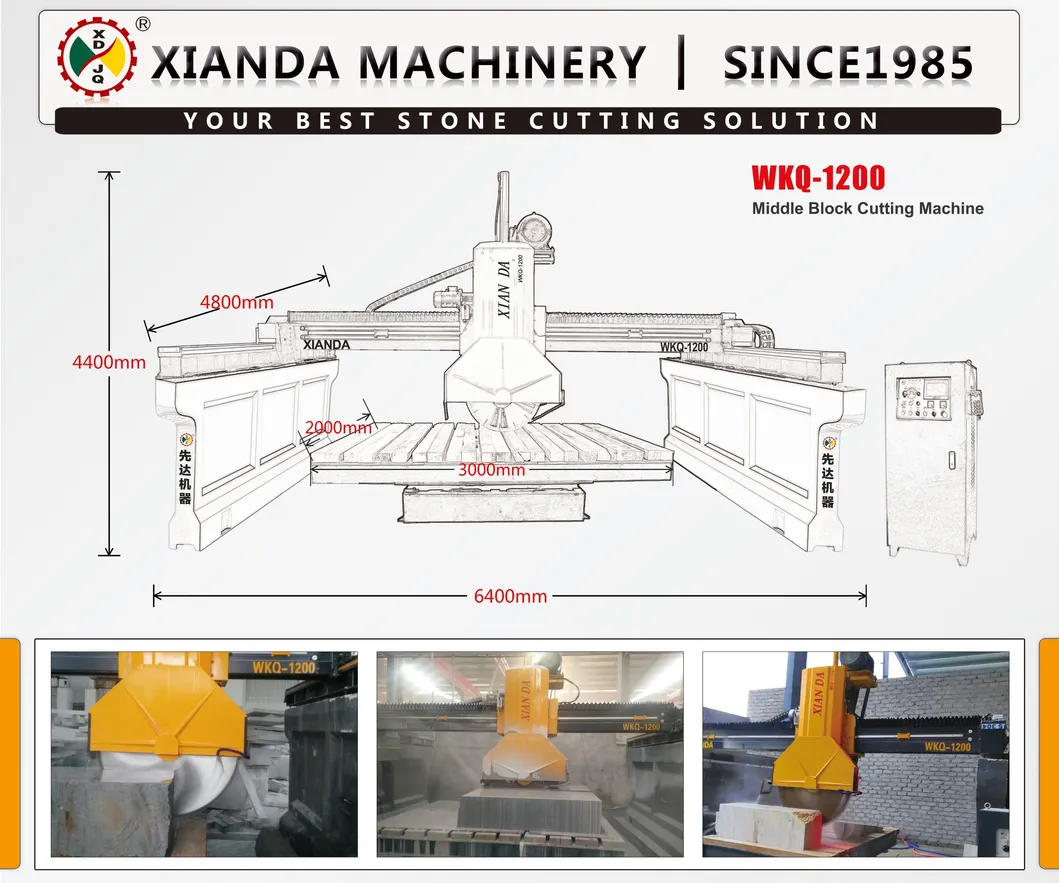

Product size chart

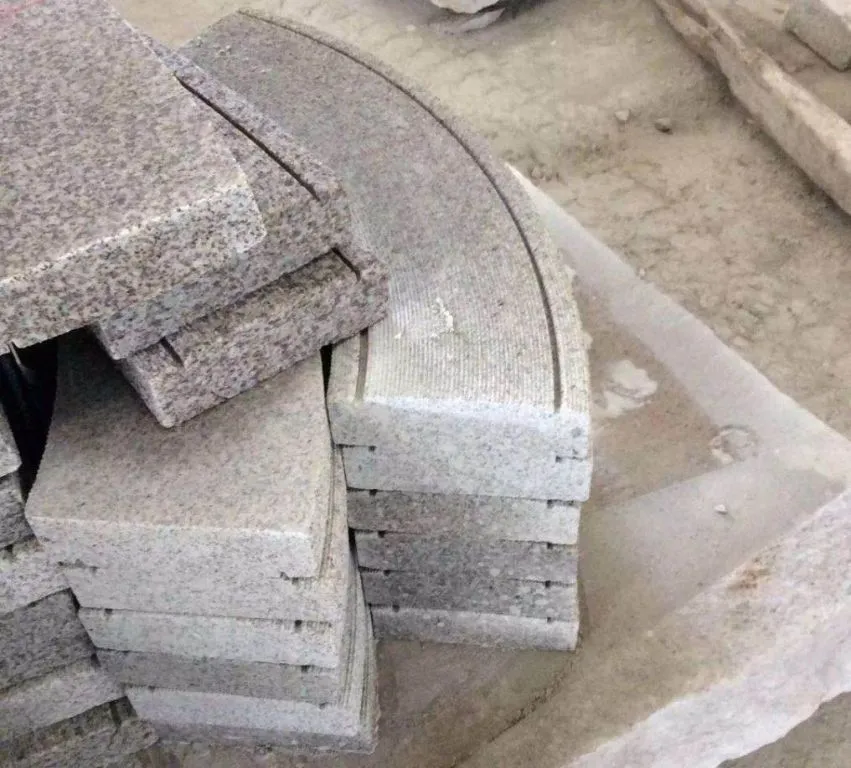

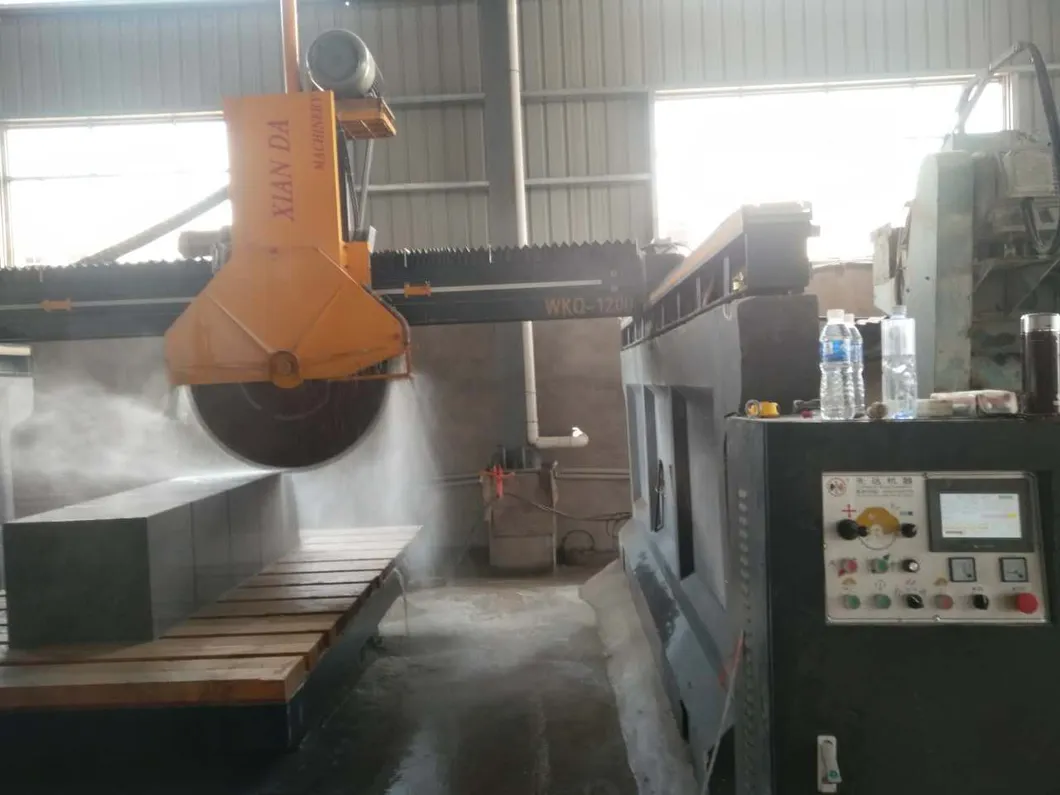

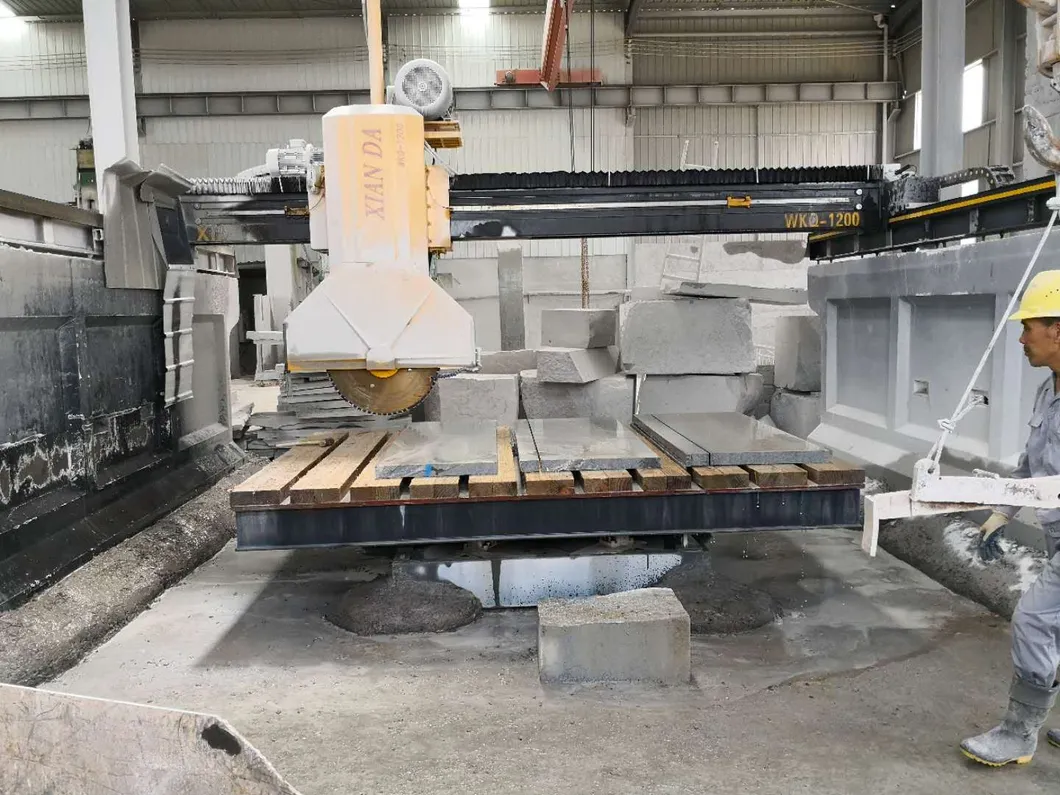

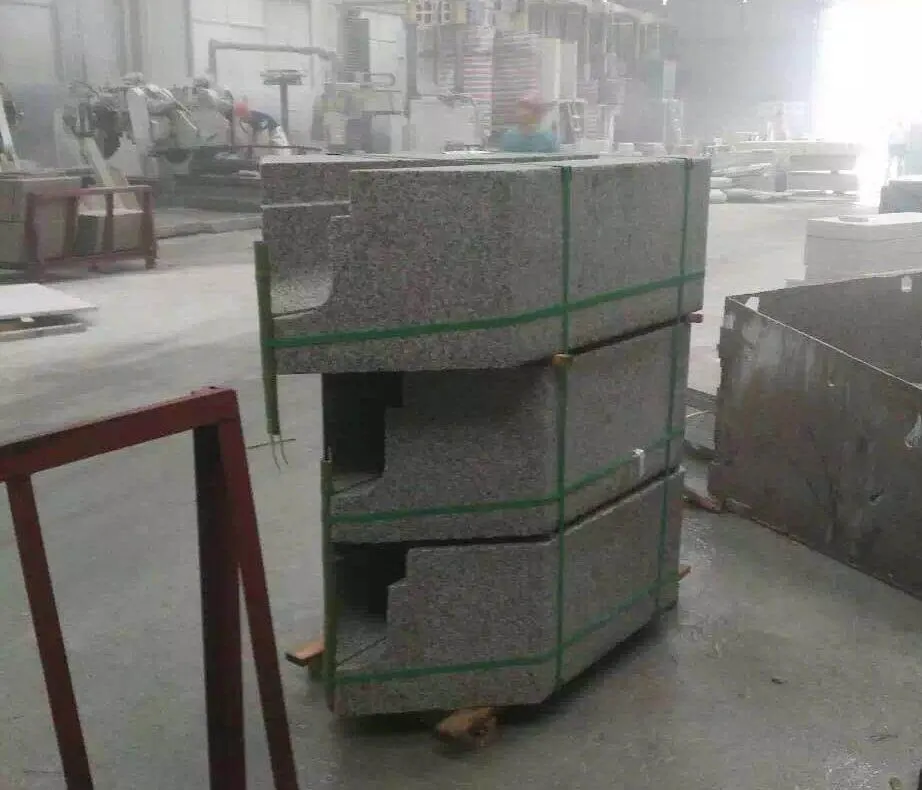

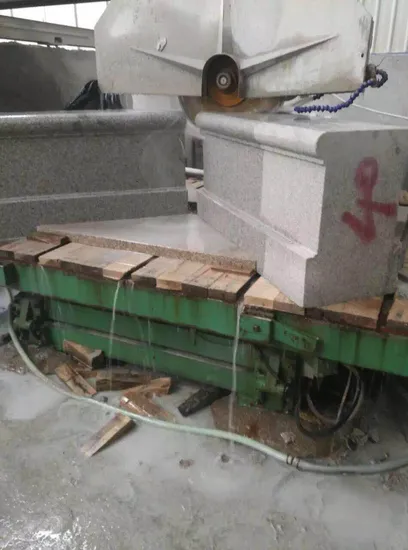

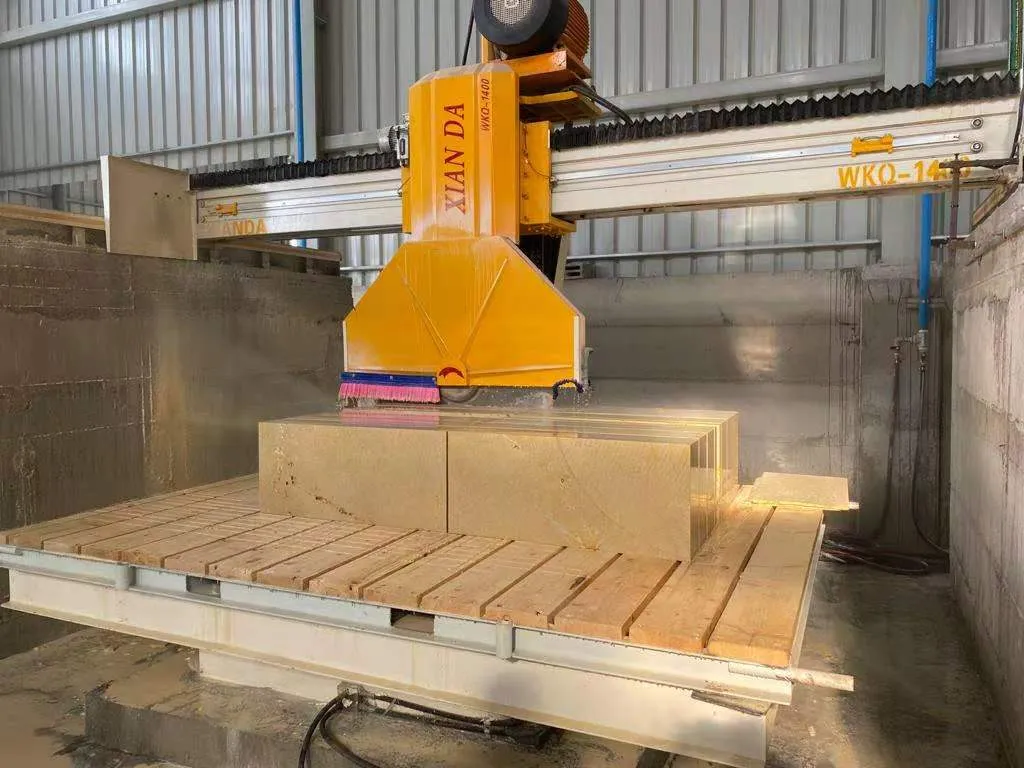

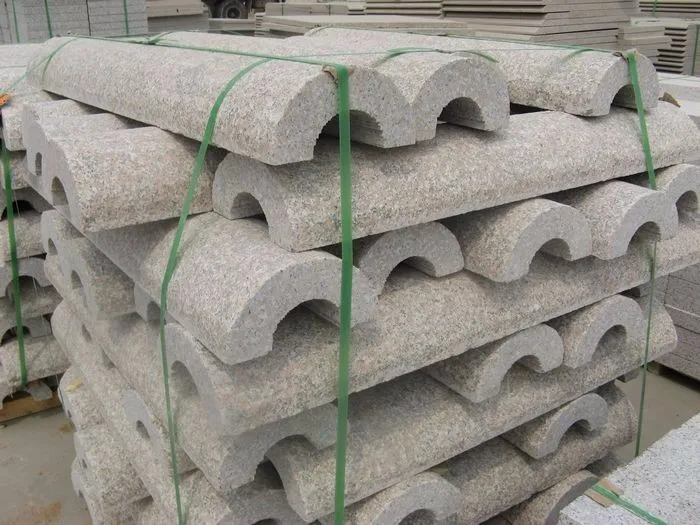

Application picture
Technical Paramete
| Parameter | Unit |
WKQ-1200 |
| Blade diameter | mm | 1200 |
| Max Lifting Distance | mm | 760 |
| Dimension of worktable | mm | 3000*2000 |
| Worktable tilting degree | ° | 0-85° |
| Worktable rotation degree | ° | 0-90°/0-360° |
| Main motor | kw | 22 |
| Gross motor | kw | 29 |
| Water consumption | m³/h | 4 |
| Outline dimension | mm | 6200*4800*4400 |
| Gross weight | kg | 6800 |
